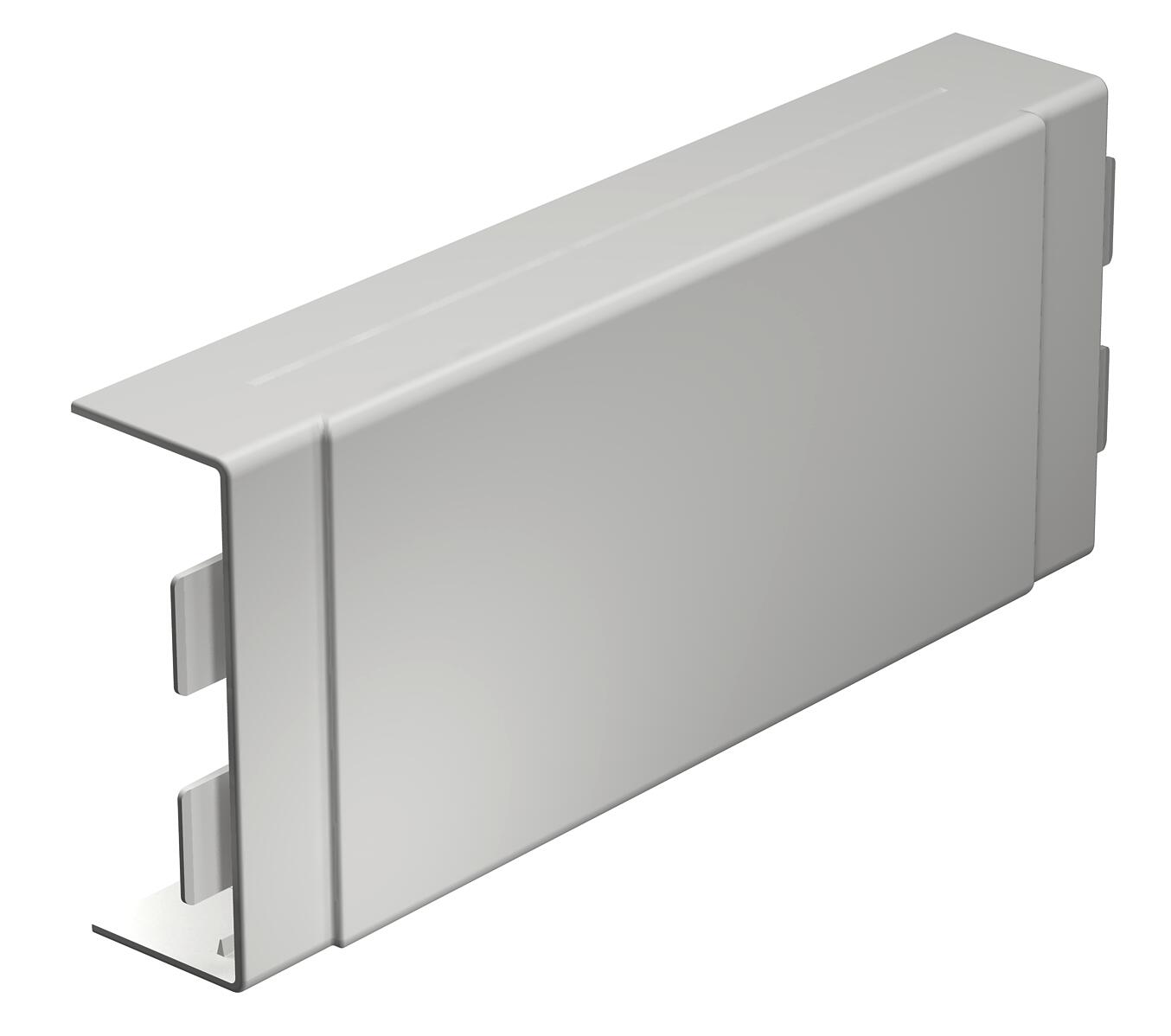

T and intersection cover, for trunking type WDK 40110 272 | 112 | 110 | Light grey; RAL 7035

T and intersection cover, for trunking type WDK 40110

Item no. 6182941 | EAN 4012196673278

Item no. / Types

Dimension a	272 mm

Dimension b	112 mm

Dimension H	110 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Light grey; RAL 7035
Dimension	40x110mm
Fastening type	Lockable
for duct dimension	40 x 110
Maintain electrical functions	no
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Trunking depth	40 mm
Version for	Hood fitting

Dimensions

Dimension a	272 mm
Dimension b	112 mm
Dimension H	110 mm

Height	40 mm
Length	272 mm
Width	110 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK40110GR	272 mm	112 mm	110 mm	Stone grey; RAL 7030	6023339	piece	2 piece
WDK HK40110CW	272 mm	112 mm	110 mm	Cream; RAL 9001	6162029	piece	2 piece
WDK HK40110LGR	272 mm	112 mm	110 mm	Light grey; RAL 7035	6182941	piece	2 piece
WDK HK40110RW	272 mm	112 mm	110 mm	Pure white; RAL 9010	6192572	piece	2 piece
