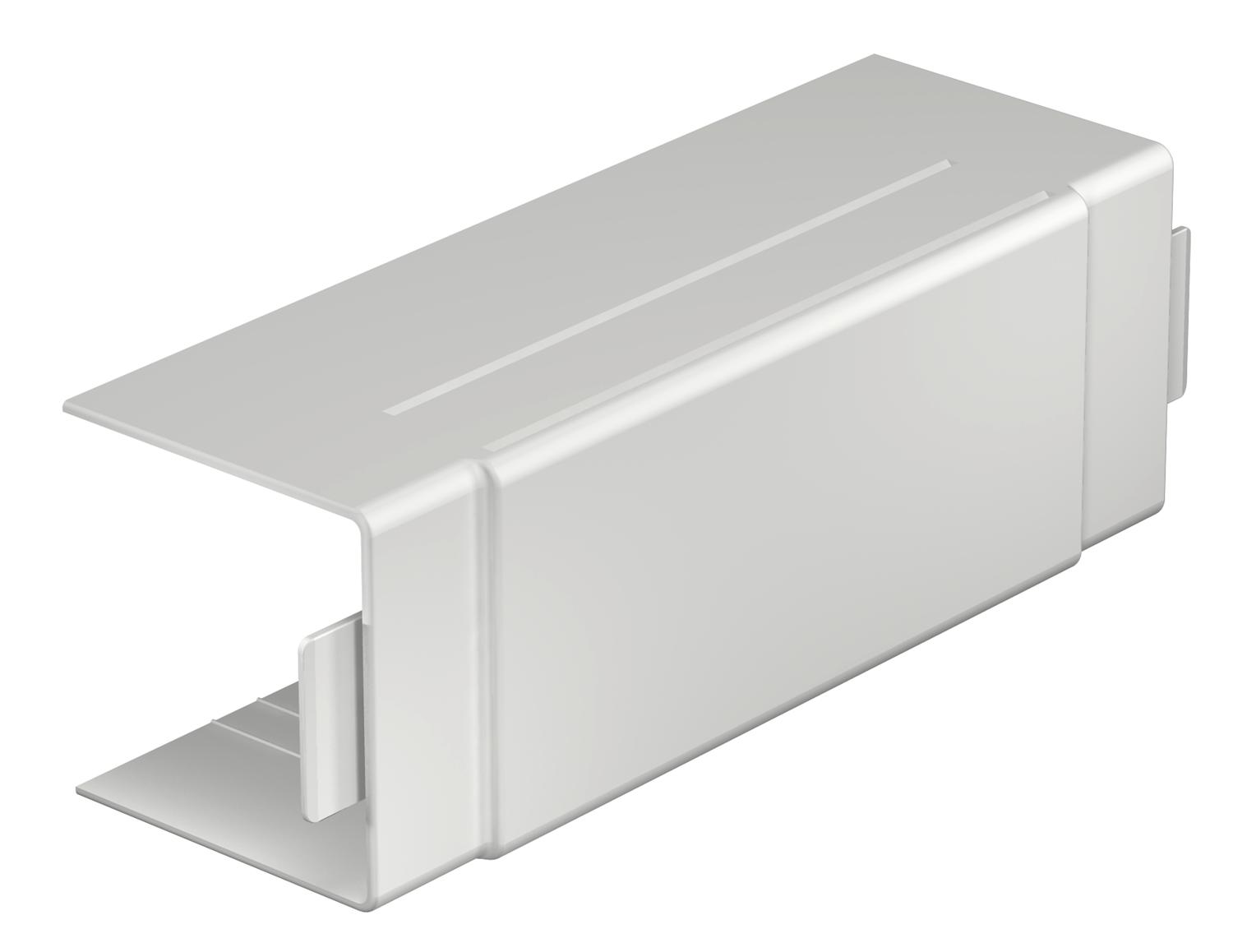

T and intersection cover, for trunking type WDK 60060 190 | 65 | 60 | Light grey; RAL 7035

T and intersection cover, for trunking type WDK 60060

Item no. 6183018 | EAN 4012196677054

Item no. / Types

Dimension a	190 mm

Dimension b	65 mm

Dimension H	60 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Light grey; RAL 7035
Dimension	60x60mm
Dimension a	190 mm
Dimension b	65 mm
Dimension H	60 mm
Fastening type	Lockable
for duct dimension	60 x 60
Height	60 mm

Length	190 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Version for	Hood fitting
Width	60 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK60060GR	190 mm	65 mm	60 mm	Stone grey; RAL 7030	6023223	piece	2 piece
WDK HK60060CW	190 mm	65 mm	60 mm	Cream; RAL 9001	6162207	piece	2 piece
WDK HK60060LGR	190 mm	65 mm	60 mm	Light grey; RAL 7035	6183018	piece	2 piece
WDK HK60060RW	190 mm	65 mm	60 mm	Pure white; RAL 9010	6192610	piece	2 piece
