T and intersection cover, for trunking type WDK 60090 230 | 94 | 90 | Pure white; RAL 9010

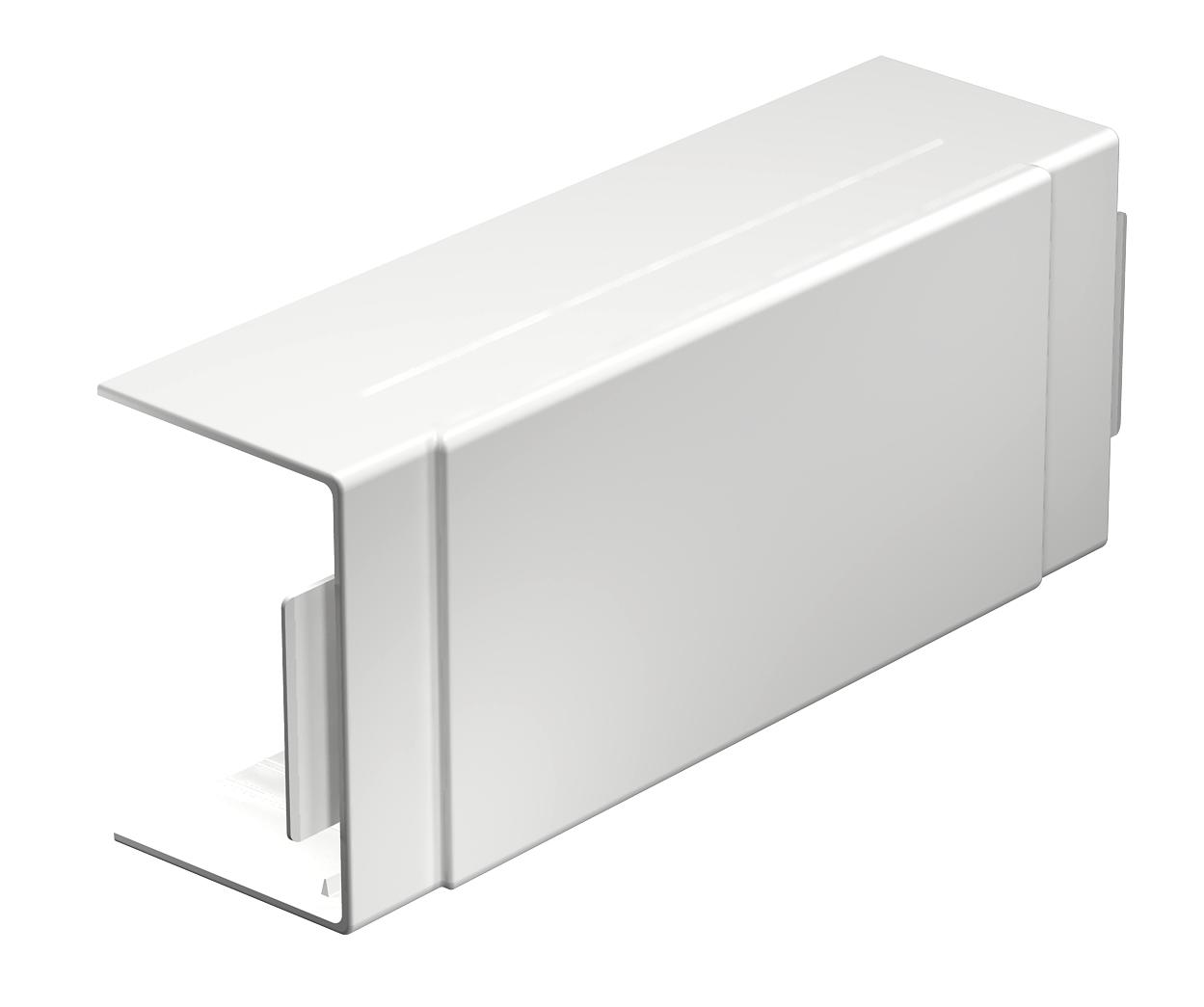

T and intersection cover, for trunking type WDK 60090

Item no. 6192629 | EAN 4012196492435

Item no. / Types

Dimension a	230 mm

Dimension b	94 mm

Dimension H	90 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Pure white; RAL 9010
Dimension	60x90mm
Dimension a	230 mm
Dimension b	94 mm
Dimension H	90 mm
Fastening type	Lockable
for duct dimension	60 x 90
Height	60 mm

Length	230 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Version for	Hood fitting
Width	94 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK60090GR	230 mm	94 mm	90 mm	Stone grey; RAL 7030	6023002	piece	2 piece
WDK HK60090CW	230 mm	94 mm	90 mm	Cream; RAL 9001	6162215	piece	2 piece
WDK HK60090LGR	230 mm	94 mm	90 mm	Light grey; RAL 7035	6183026	piece	2 piece
WDK HK60090RW	230 mm	94 mm	90 mm	Pure white; RAL 9010	6192629	piece	2 piece
