T and intersection cover, for trunking type WDK 60110 272 | 114 | 110 | Pure white; RAL 9010

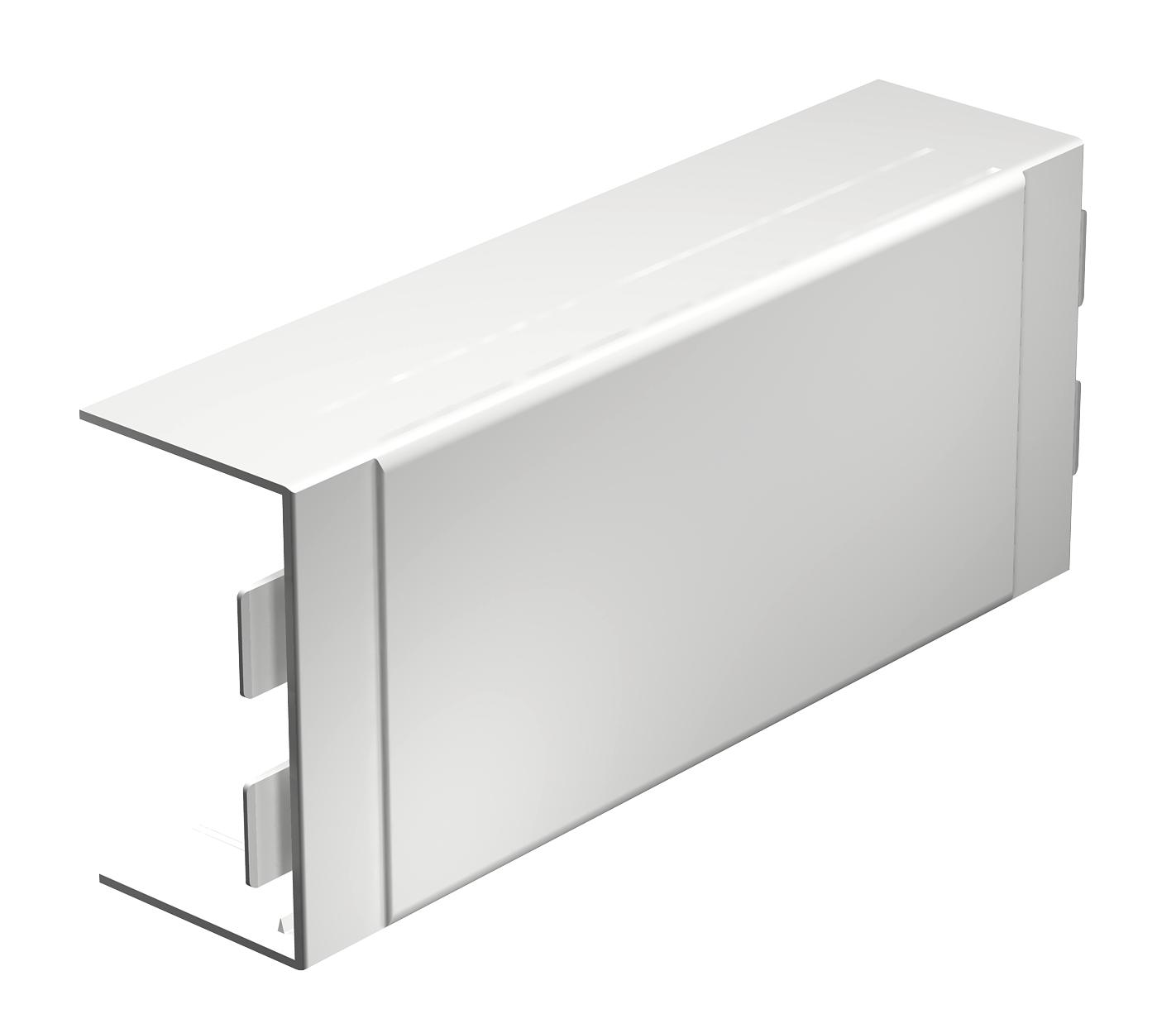

T and intersection cover, for trunking type WDK 60110

Item no. 6192637 | EAN 4012196712519

Item no. / Types

Dimension a	272 mm

Dimension b	114 mm

Dimension H	110 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Pure white; RAL 9010
Dimension	60x110mm
Dimension a	272 mm
Dimension b	114 mm
Dimension H	110 mm
Fastening type	Lockable
for duct dimension	60 x 110
Height	60 mm

Length	272 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Version for	Hood fitting
Width	110 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK60110GR	272 mm	114 mm	110 mm	Stone grey; RAL 7030	6023029	piece	2 piece
WDK HK60110CW	272 mm	114 mm	110 mm	Cream; RAL 9001	6162223	piece	2 piece
WDK HK60110LGR	272 mm	114 mm	110 mm	Light grey; RAL 7035	6183034	piece	2 piece
WDK HK60110RW	272 mm	114 mm	110 mm	Pure white; RAL 9010	6192637	piece	2 piece
