T and intersection cover, for trunking type WDK 60130 272 | 65 | 130 | Light grey; RAL 7035

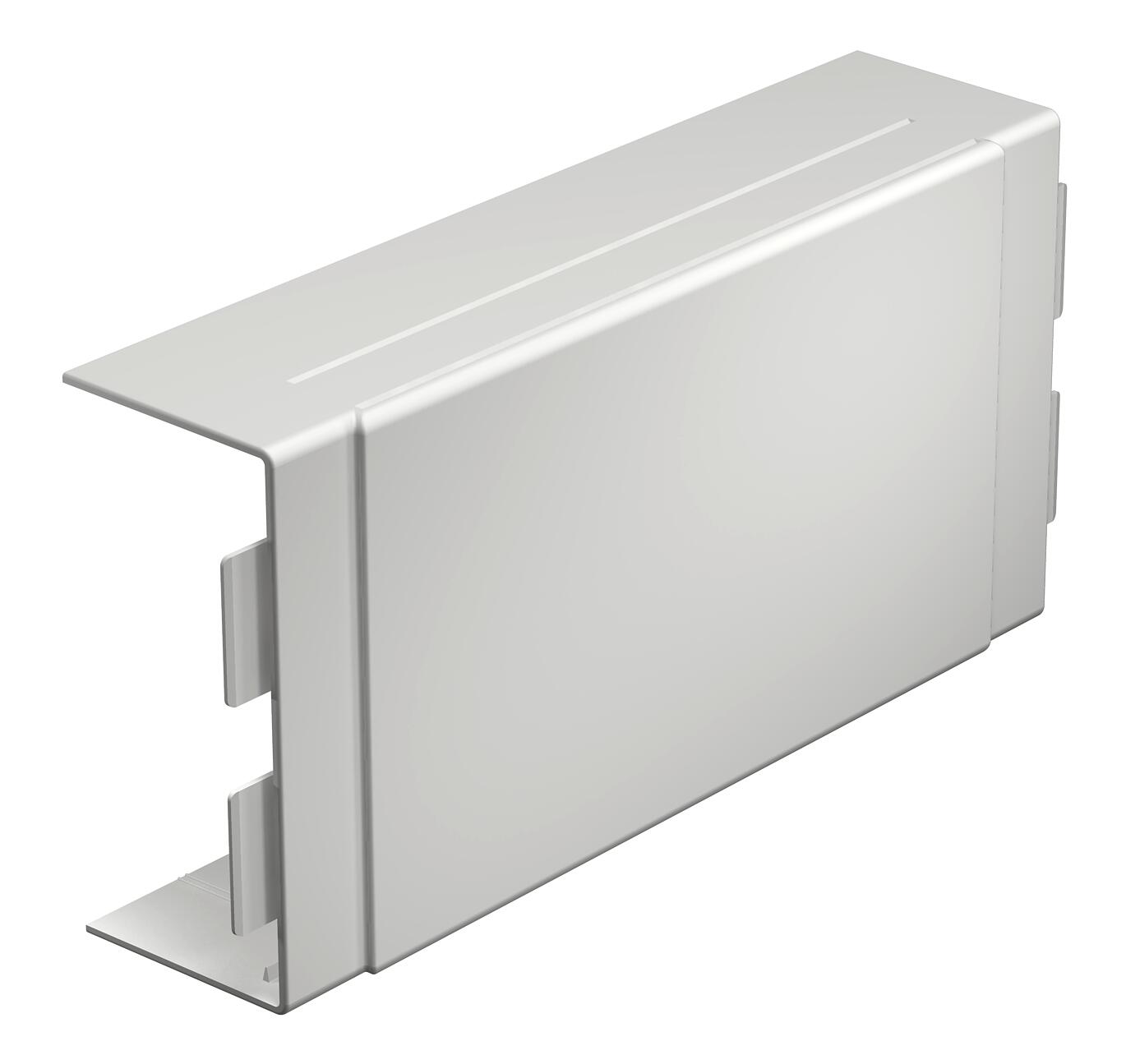

T and intersection cover, for trunking type WDK 60130

Item no. 6183042 | EAN 4012196677238

Item no. / Types

Dimension a	272 mm

Dimension b	65 mm

Dimension H	130 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Light grey; RAL 7035
Dimension	60x130mm
Dimension a	272 mm
Dimension b	65 mm
Dimension H	130 mm
Fastening type	Lockable
for duct dimension	60 x 130
Height	60 mm

Length	272 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Version for	Hood fitting
Width	130 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK60130GR	272 mm	65 mm	130 mm	Stone grey; RAL 7030	6023045	piece	2 piece
WDK HK60130CW	272 mm	65 mm	130 mm	Cream; RAL 9001	6162231	piece	2 piece
WDK HK60130LGR	272 mm	65 mm	130 mm	Light grey; RAL 7035	6183042	piece	2 piece
WDK HK60130RW	272 mm	65 mm	130 mm	Pure white; RAL 9010	6192645	piece	2 piece
