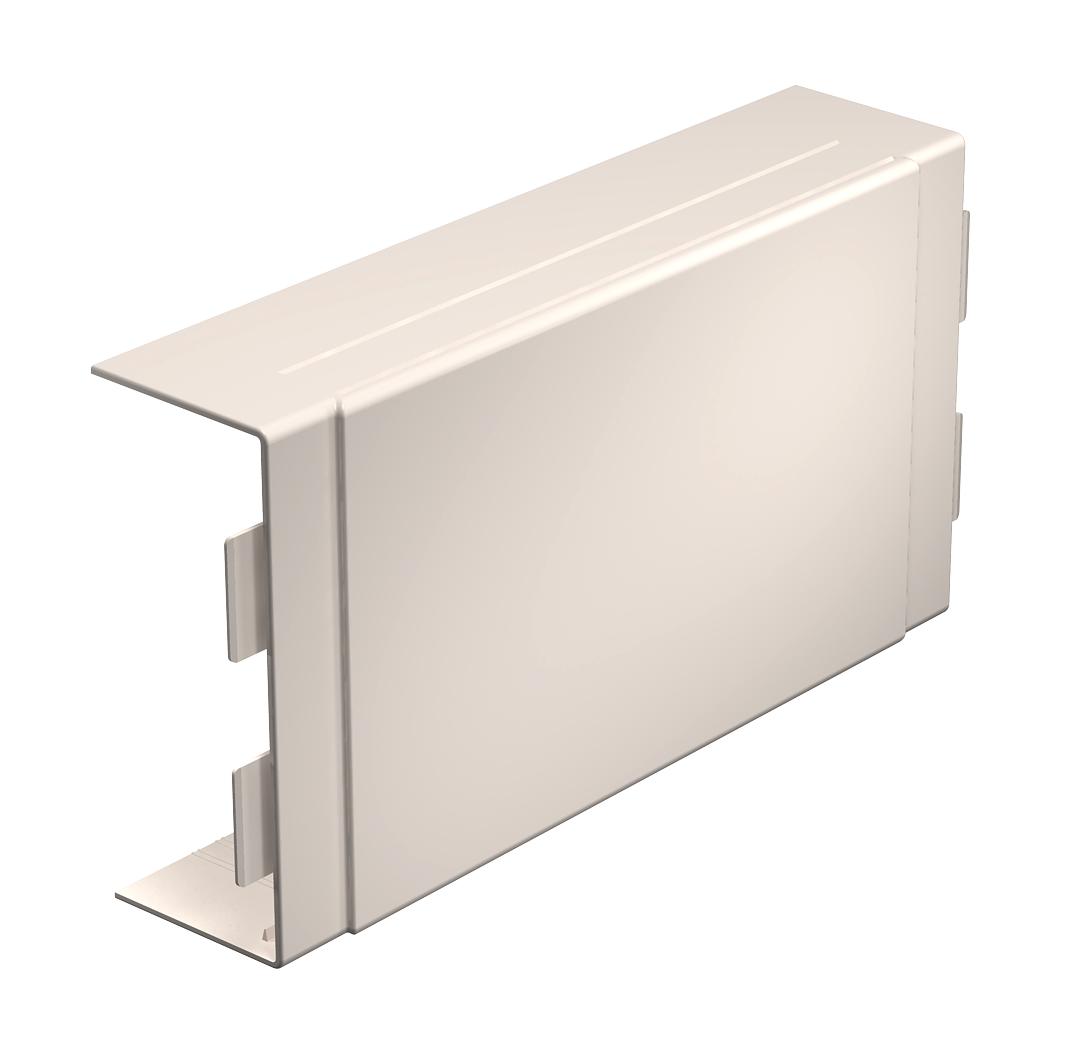

T and intersection cover, for trunking type WDK 60150 291 | 155 | 150 | Cream; RAL 9001

T and intersection cover, for trunking type WDK 60150

Item no. 6162274 | EAN 4012196638710

Item no. / Types

Dimension a	291 mm

Dimension b	155 mm

Dimension H	150 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Cream; RAL 9001
Dimension	60x150mm
Dimension a	291 mm
Dimension b	155 mm
Dimension H	150 mm
Fastening type	Lockable
for duct dimension	60 x 150
Height	60 mm

Length	291 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Version for	Hood fitting
Width	150 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK60150GR	291 mm	155 mm	150 mm	Stone grey; RAL 7030	6024769	piece	2 piece
WDK HK60150CW	291 mm	155 mm	150 mm	Cream; RAL 9001	6162274	piece	2 piece
WDK HK60150LGR	291 mm	155 mm	150 mm	Light grey; RAL 7035	6183050	piece	2 piece
WDK HK60150RW	291 mm	155 mm	150 mm	Pure white; RAL 9010	6192653	piece	2 piece
