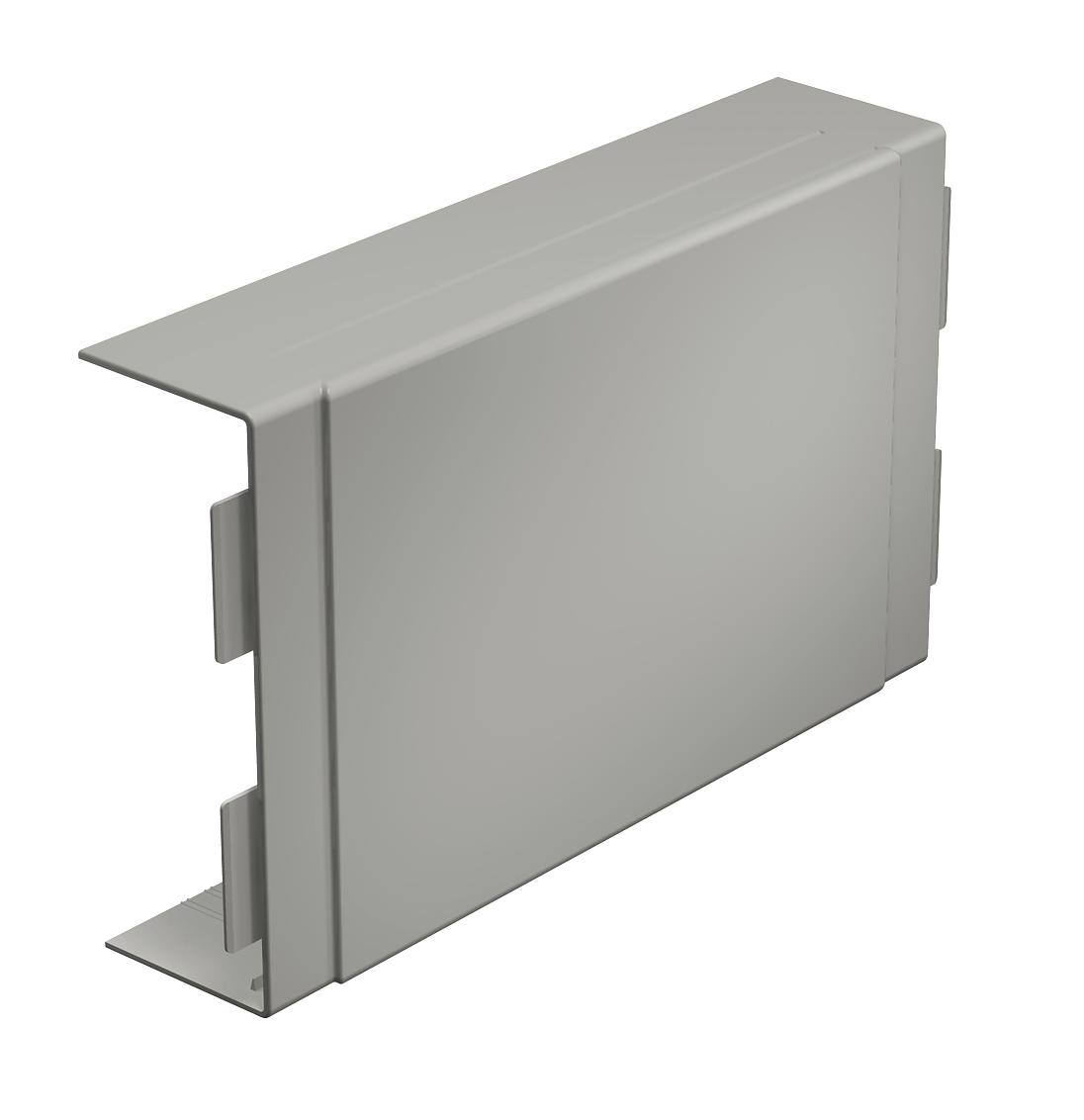

T and intersection cover, for trunking type WDK 60170 291 | 66 | 170 | Stone grey; RAL 7030

T and intersection cover, for trunking type WDK 60170

Item no. 6023061 | EAN 4012196024193

Item no. / Types

Dimension a	291 mm

Dimension b	66 mm

Dimension H	170 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Stone grey; RAL 7030
Dimension	60x170mm
Dimension a	291 mm
Dimension b	66 mm
Dimension H	170 mm
Fastening type	Lockable
for duct dimension	60 x 170
Height	60 mm

Length	291 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Version for	Hood fitting
Width	170 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK60170GR	291 mm	66 mm	170 mm	Stone grey; RAL 7030	6023061	piece	2 piece
WDK HK60170CW	291 mm	66 mm	170 mm	Cream; RAL 9001	6162258	piece	2 piece
WDK HK60170LGR	291 mm	66 mm	170 mm	Light grey; RAL 7035	6183069	piece	2 piece
WDK HK60170RW	291 mm	66 mm	170 mm	Pure white; RAL 9010	6192661	piece	2 piece
