T and intersection cover, for trunking type WDK 60210 291 | 235 | 230 | Light grey; RAL 7035

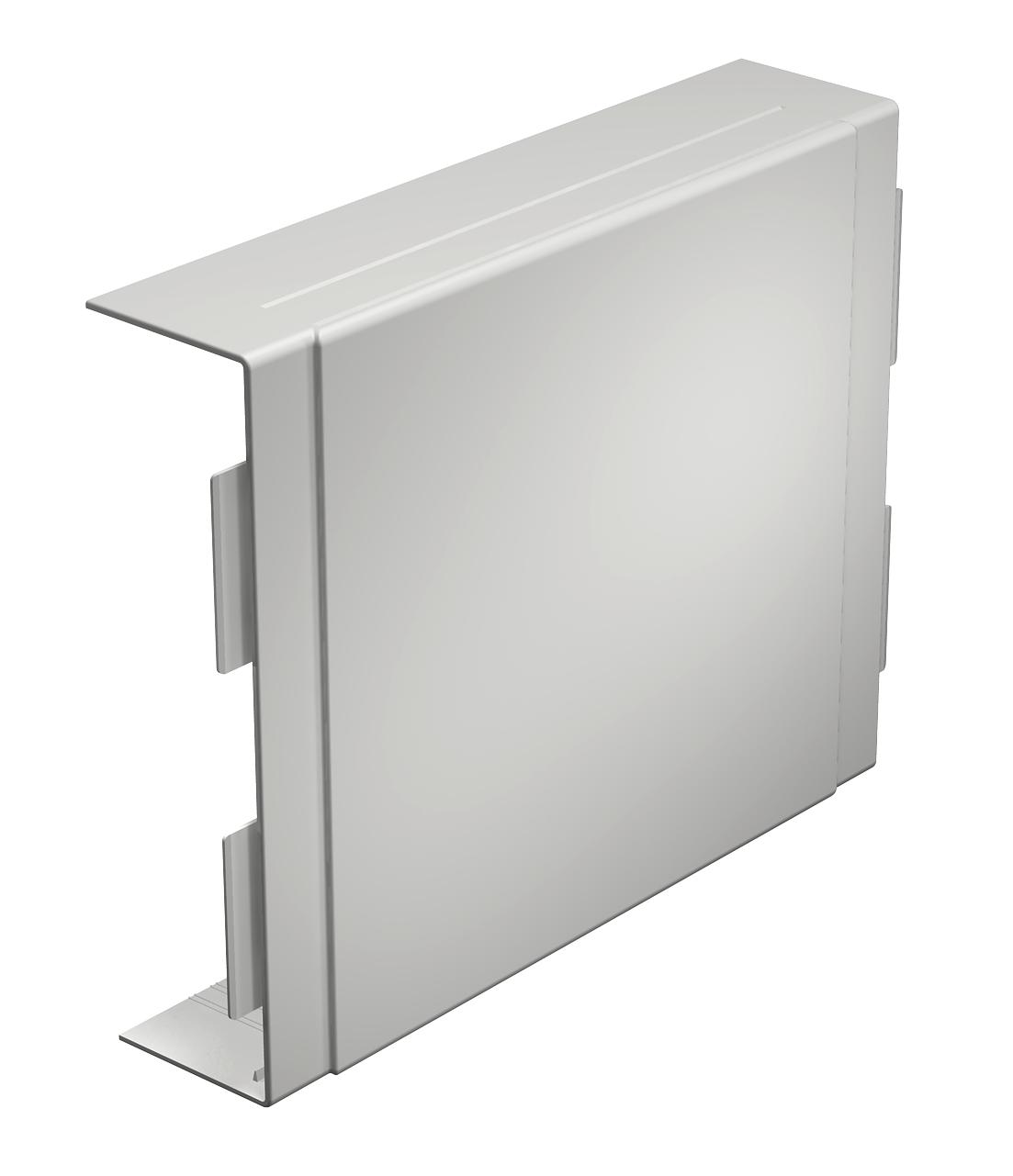

T and intersection cover, for trunking type WDK 60210

Item no. 6183085 | EAN 4012196677474

Item no. / Types

Dimension a	291 mm

Dimension b	235 mm

Dimension H	230 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Light grey; RAL 7035
Dimension	60x230mm
Dimension a	291 mm
Dimension b	235 mm
Dimension H	230 mm
Fastening type	Lockable
for duct dimension	60 x 230
Height	60 mm

Length	291 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Version for	Hood fitting
Width	230 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK60230GR	291 mm	235 mm	230 mm	Stone grey; RAL 7030	6024777	piece	2 piece
WDK HK60230CW	291 mm	235 mm	230 mm	Cream; RAL 9001	6162290	piece	2 piece
WDK HK60230LGR	291 mm	235 mm	230 mm	Light grey; RAL 7035	6183085	piece	2 piece
WDK HK60230RW	291 mm	235 mm	230 mm	Pure white; RAL 9010	6192696	piece	2 piece
