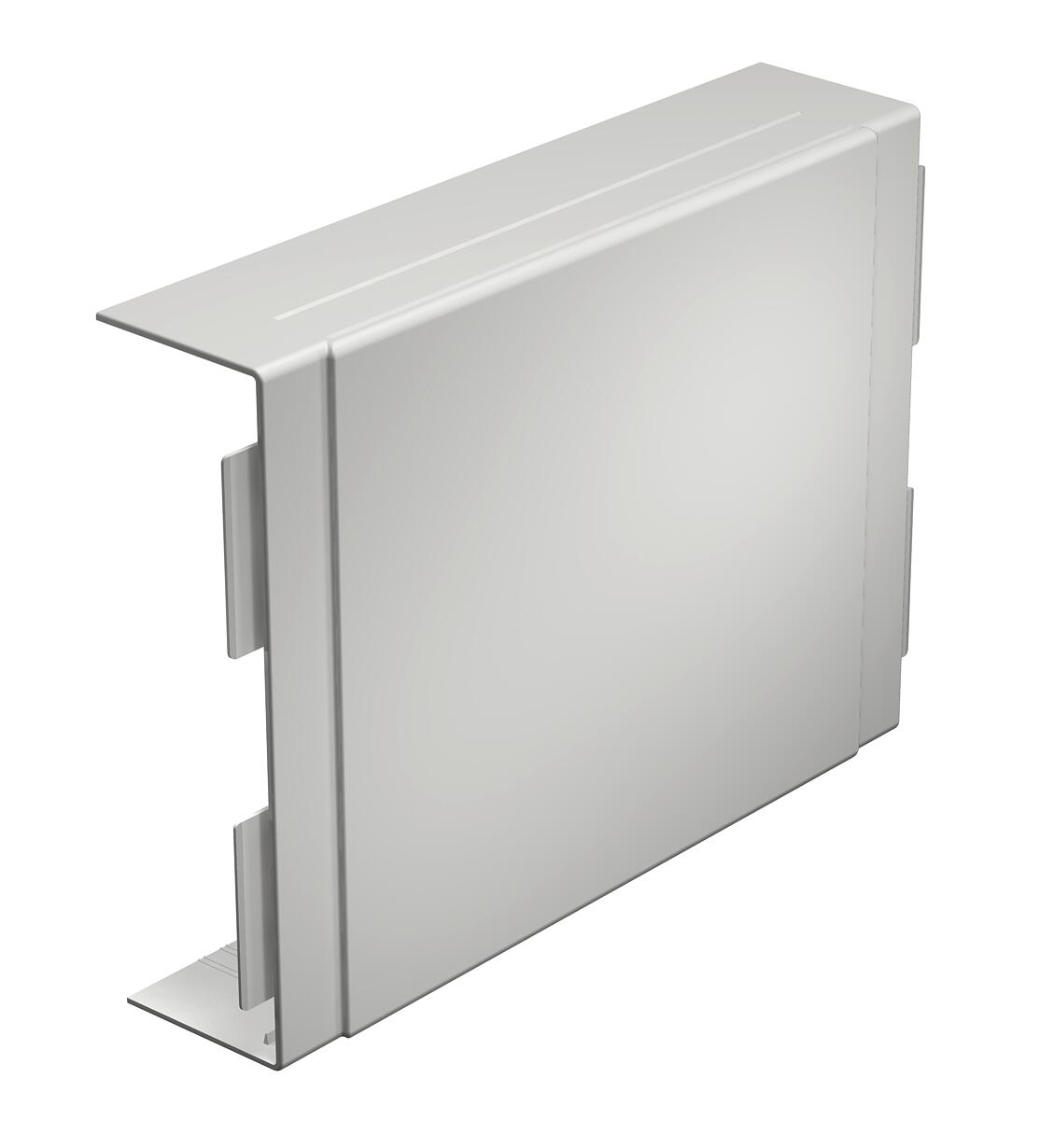

T and intersection cover, for trunking type WDK 60210 291 | 66 | 210 | Light grey; RAL 7035

T and intersection cover, for trunking type WDK 60210

Item no. 6183077 | EAN 4012196677412

Item no. / Types

Dimension a	291 mm

Dimension b	66 mm

Dimension H	210 mm

Colour

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Light grey; RAL 7035
Dimension	60x210mm
Dimension a	291 mm
Dimension b	66 mm
Dimension H	210 mm
Fastening type	Lockable
for duct dimension	60 x 210
Height	60 mm

Length	291 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Version for	Hood fitting
Width	210 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK60210GR	291 mm	66 mm	210 mm	Stone grey; RAL 7030	6023126	piece	2 piece
WDK HK60210CW	291 mm	66 mm	210 mm	Cream; RAL 9001	6162266	piece	2 piece
WDK HK60210LGR	291 mm	66 mm	210 mm	Light grey; RAL 7035	6183077	piece	2 piece
WDK HK60210RW	291 mm	66 mm	210 mm	Pure white; RAL 9010	6192688	piece	2 piece
