T and intersection cover, for trunking type WDKH 40060 190 | 66 | | Pure white; RAL 9010
morepic-1 morepic-2

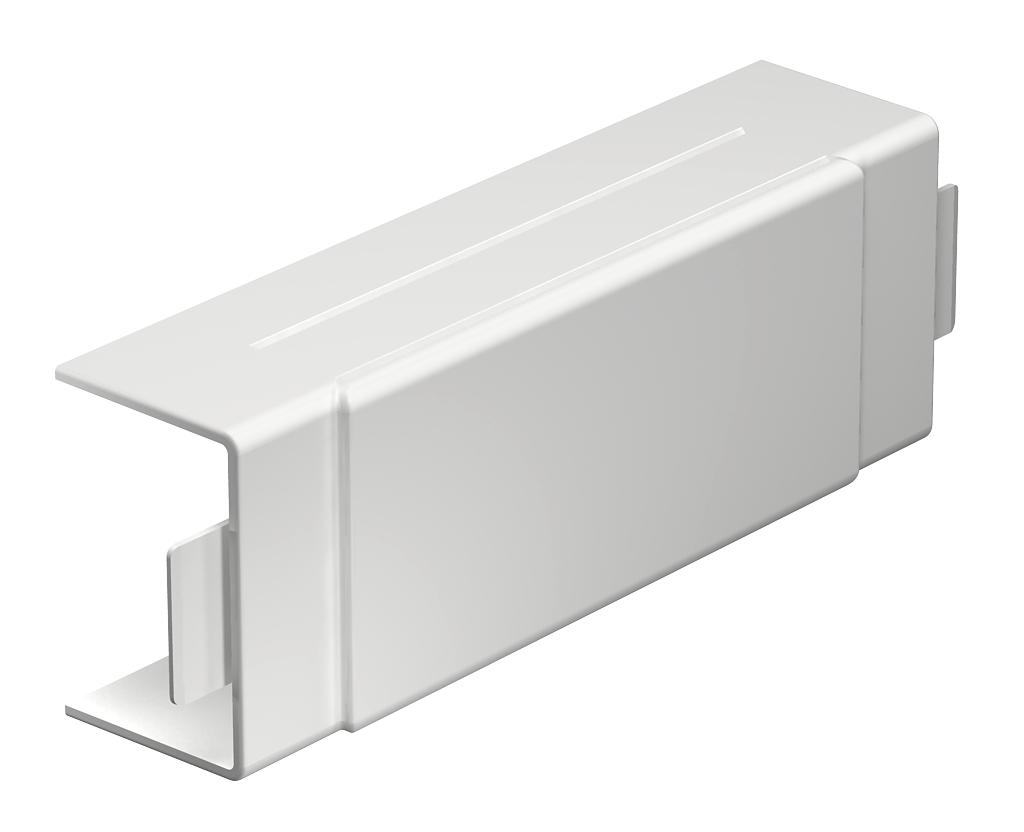

T and intersection cover, for trunking type WDKH 40060

Item no. 6175702 | EAN 4012195814177

190 mm
66 mm
Product description

Product description

T and intersection cover for changing the direction of the halogen-free WDKH trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 40x60mm
Duct height, min. 60 mm
Fastening type Lockable
for duct dimension 40x60
Halogen-free yes
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Trunking depth 40 mm
Version for Hood fitting

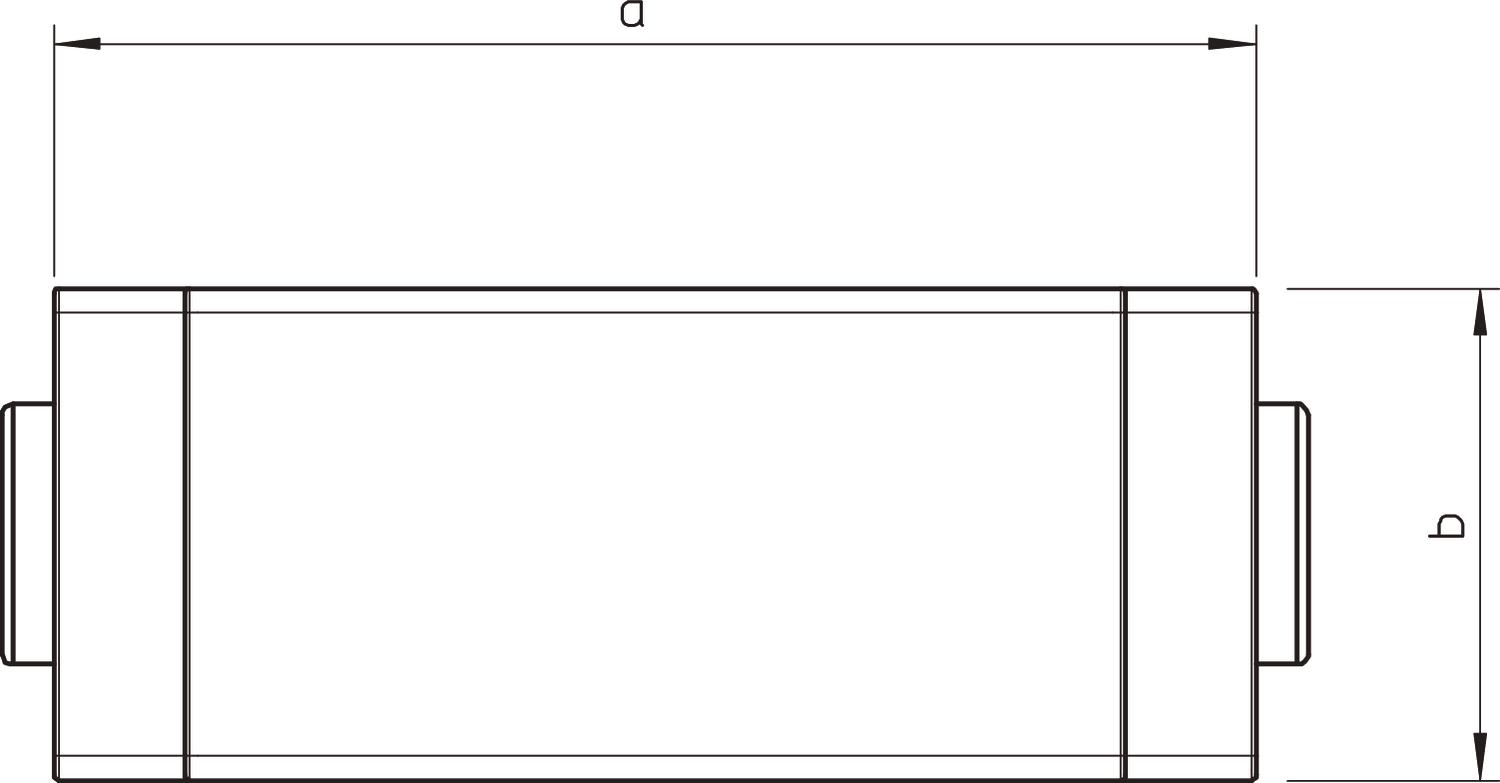

Dimensions

Dimension a 190 mm
Dimension b 66 mm
Height 40 mm
Length 190 mm
Width 65 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-T40060RW 190 mm 66 mm Pure white; RAL 9010 6175702
2 piece
WDKH-T40060LGR 190 mm 66 mm Light grey; RAL 7035 6176080
2 piece
