T and intersection cover, for trunking type WDKH 60090 230 | 94 | | Pure white; RAL 9010
morepic-1 morepic-2

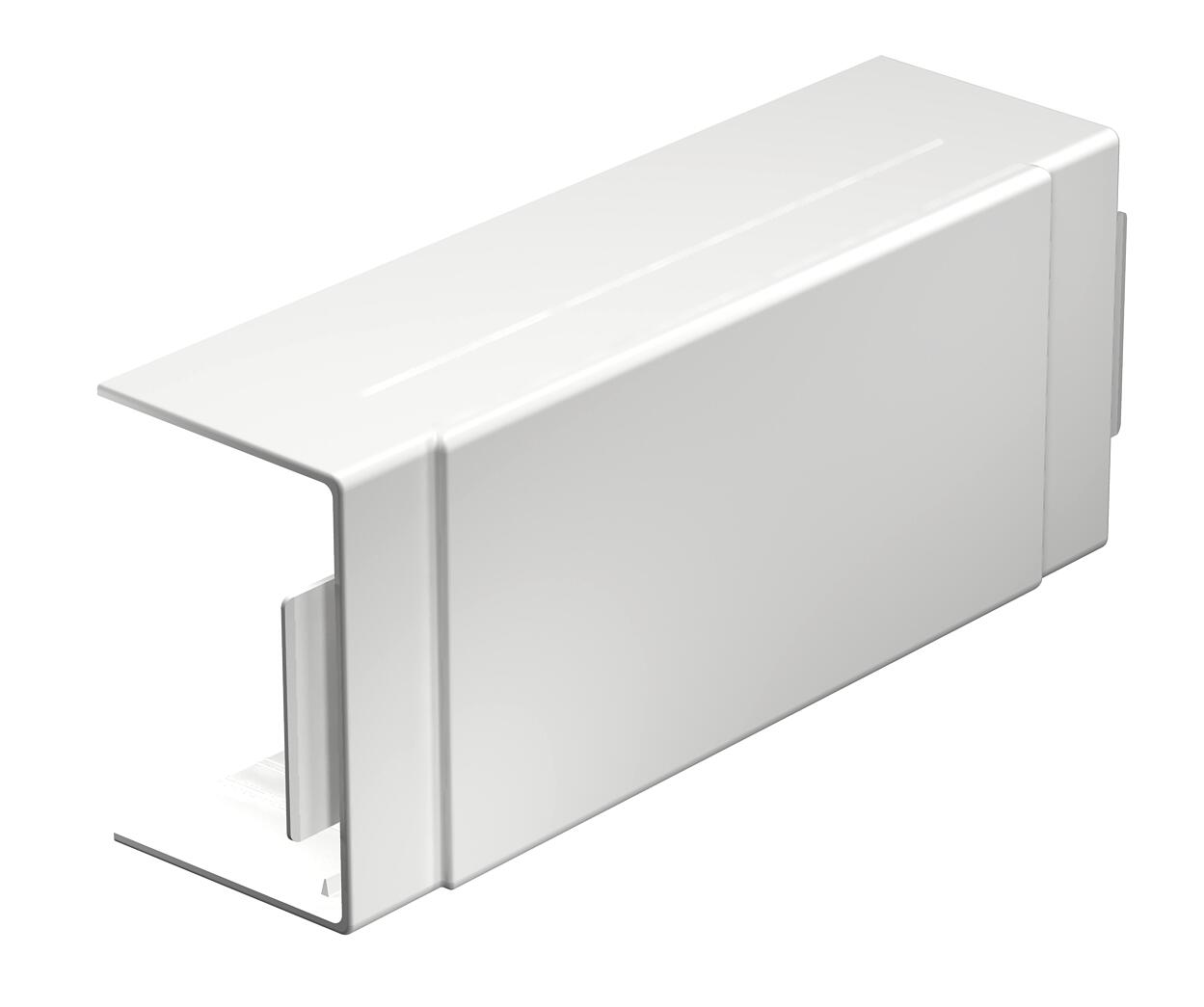

T and intersection cover, for trunking type WDKH 60090

Item no. 6175706 | EAN 4012195814184

230 mm
94 mm
Product description
Product description
T and intersection cover for changing the direction of the halogen-free WDKH trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010

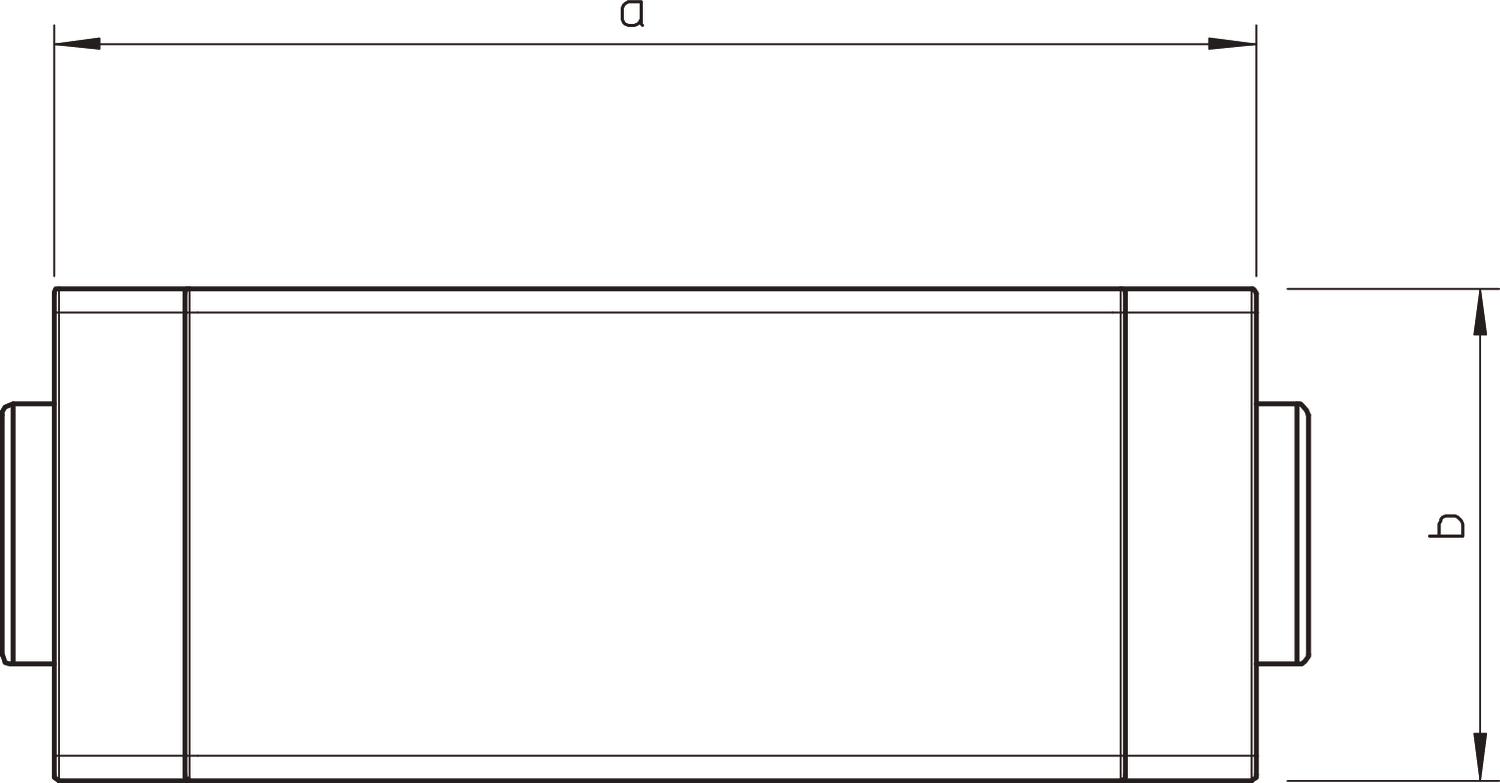

Dimension 60x90mm
Dimension a 230 mm
Dimension b 94 mm
Fastening type Lockable
for duct dimension 60x
Halogen-free yes
Height 60 mm
Length 230 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Trunking depth 60 mm
Version for Hood fitting
Width 94 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-T60090RW 230 mm 94 mm Pure white; RAL 9010 6175706
2 piece
WDKH-T60090LGR 230 mm 94 mm Light grey; RAL 7035 6176084
2 piece
Downloads

Download

Download

EU declaration of conformity WDKH-T60090RW / 6175706 , 0.13MB , pdf
Download
UK Declaration of Conformity WDKH-T60090RW / 6175706 , 0.14MB , pdf
Download
REACH Declaration of conformity WDKH-T60090RW / 6175706 , 0.27MB , pdf
Download
RoHS Declaration of conformity WDKH-T60090RW / 6175706 , 0.28MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
