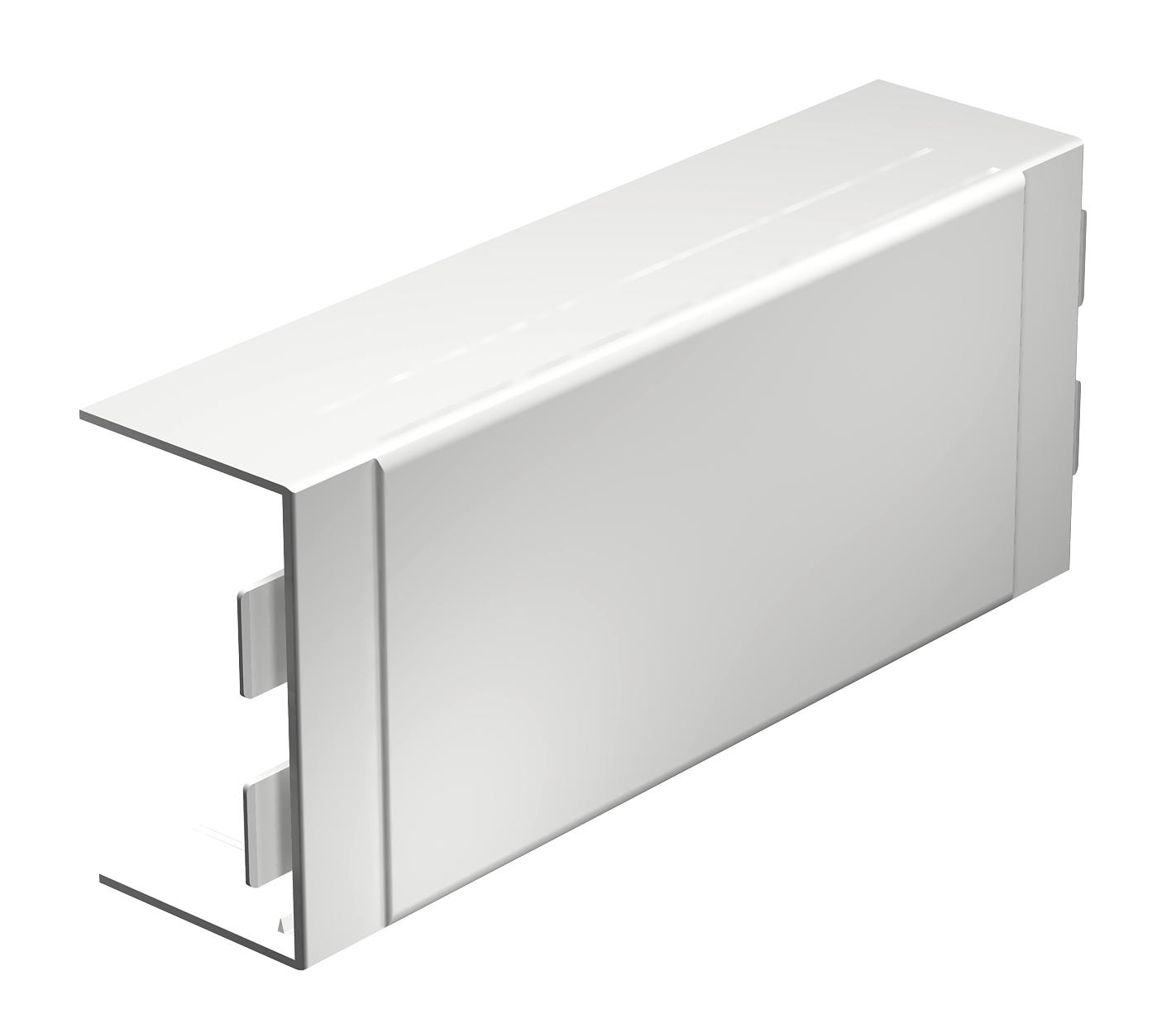

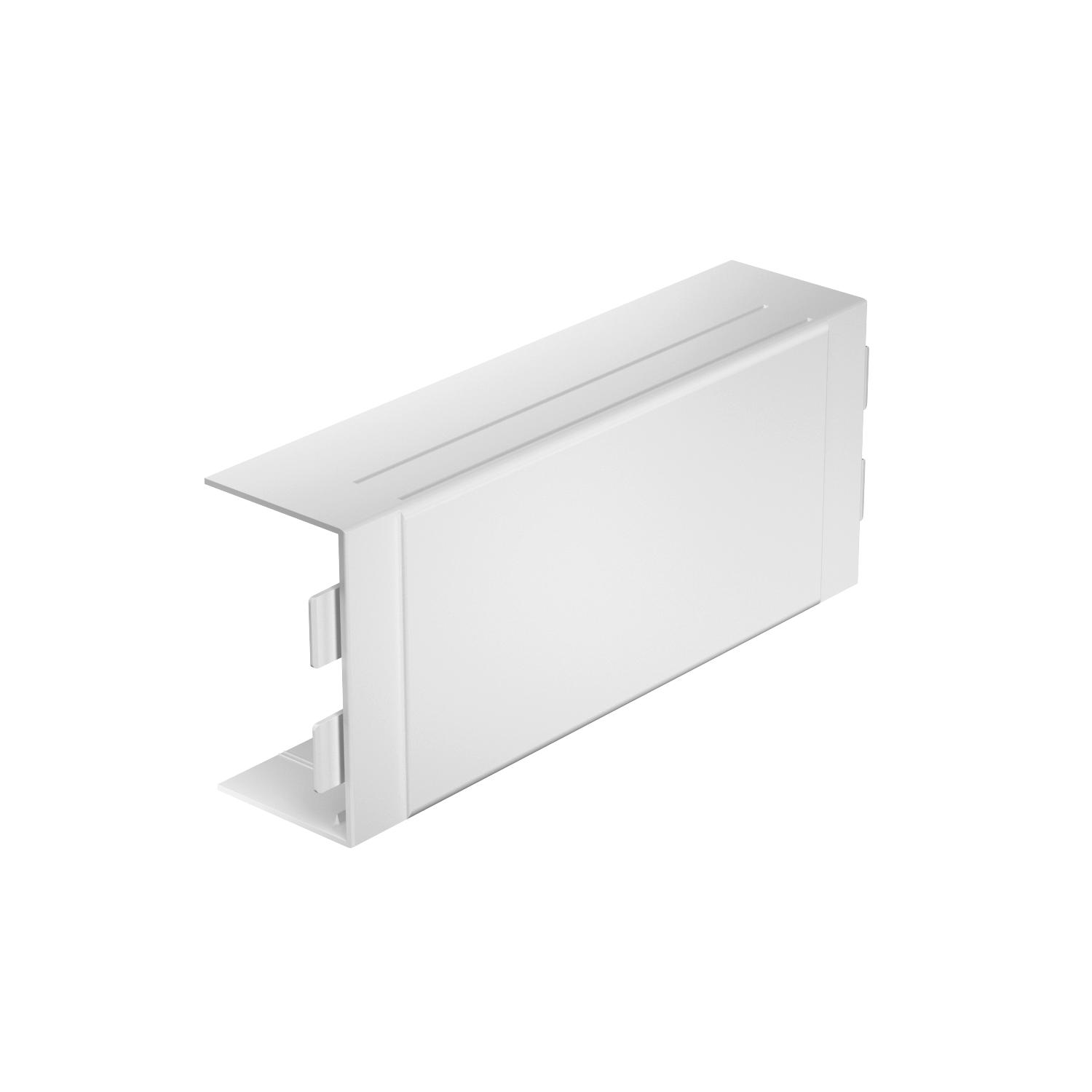

T and intersection cover, for trunking type WDKH 60110
Item no. 6176088 | EAN 4012195815136
- Product description
-
Product description
T and intersection cover for changing the direction of the halogen-free WDKH trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
-
- Technical data
-
Technical data

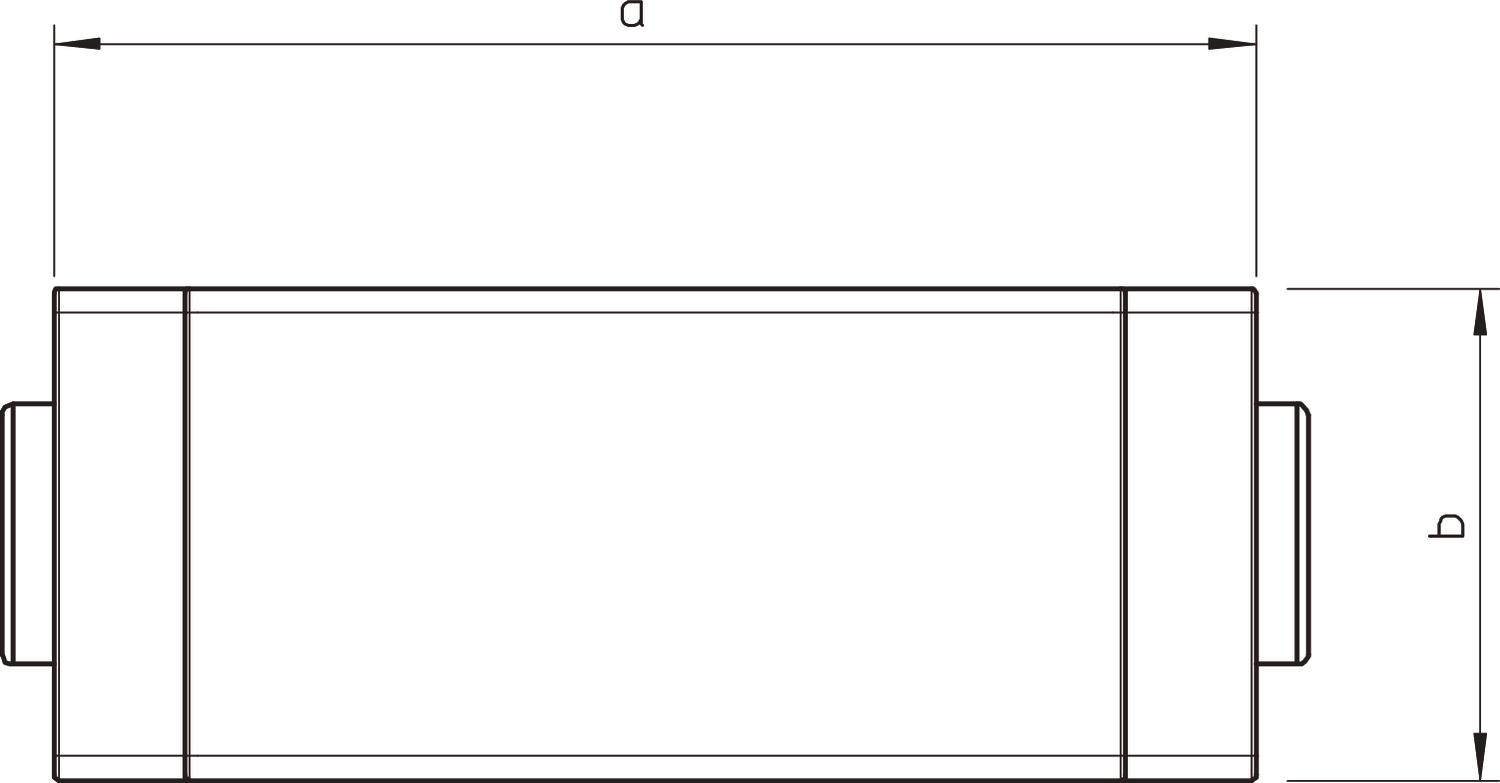

Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 60x110mm Dimension a 272 mm Dimension b 114 mm Fastening type Lockable for duct dimension 60x Halogen-free yes Height 60 mm Length 272 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Trunking depth 60 mm Version for Hood fitting Width 110 mm - All types
- Downloads
-
Data sheet WDKH-T60110LGR / 6176088 , 0.16MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDKH-T60110LGR / 6176088 , 0.13MB , pdfUK Declaration of Conformity WDKH-T60110LGR / 6176088 , 0.14MB , pdfREACH Declaration of conformity WDKH-T60110LGR / 6176088 , 0.12MB , pdfRoHS Declaration of conformity WDKH-T60110LGR / 6176088 , 0.12MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
