T and intersection cover, for trunking type WDKH 60150 291 | 155 | | Pure white; RAL 9010

T and intersection cover, for trunking type WDKH 60150

Item no. 6175714 | EAN 4012195814207

Item no. / Types

Dimension a	291 mm

Dimension b	155 mm

Colour

Product description

Product description

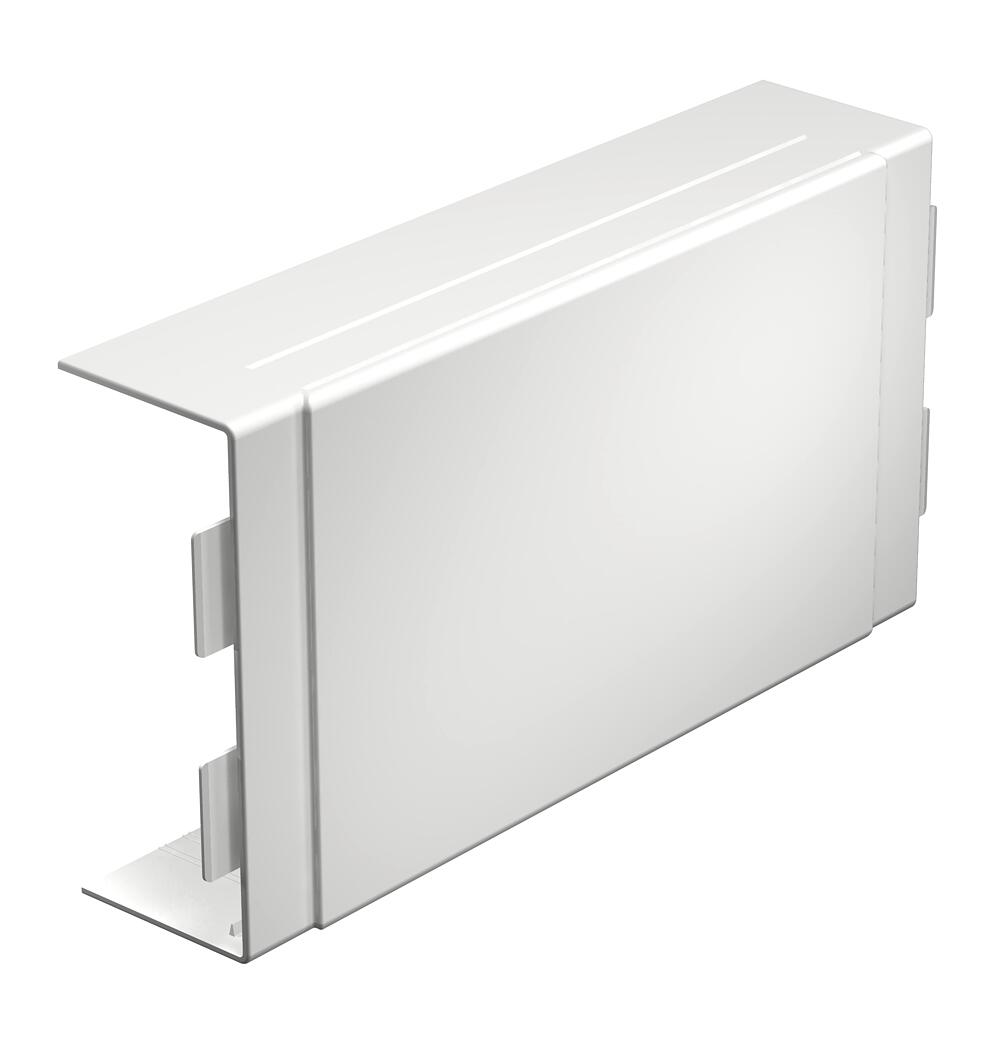

T and intersection cover for changing the direction of the halogen-free WDKH trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Pure white; RAL 9010
Dimension	60x150mm
Dimension a	291 mm
Dimension b	155 mm
Fastening type	Lockable
for duct dimension	60x
Halogen-free	yes
Height	60 mm
Length	291 mm

Maintain electrical functions	no
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Protective film	no
Trunking depth	60 mm
Version for	Hood fitting
Width	150 mm
