T branch piece 200 FT 200 | 2.5
morepic-1 morepic-2 video-1

T branch piece 200 FT

Item no. 6233627 | EAN 4012196176595

2.5 mm
Product description
Product description

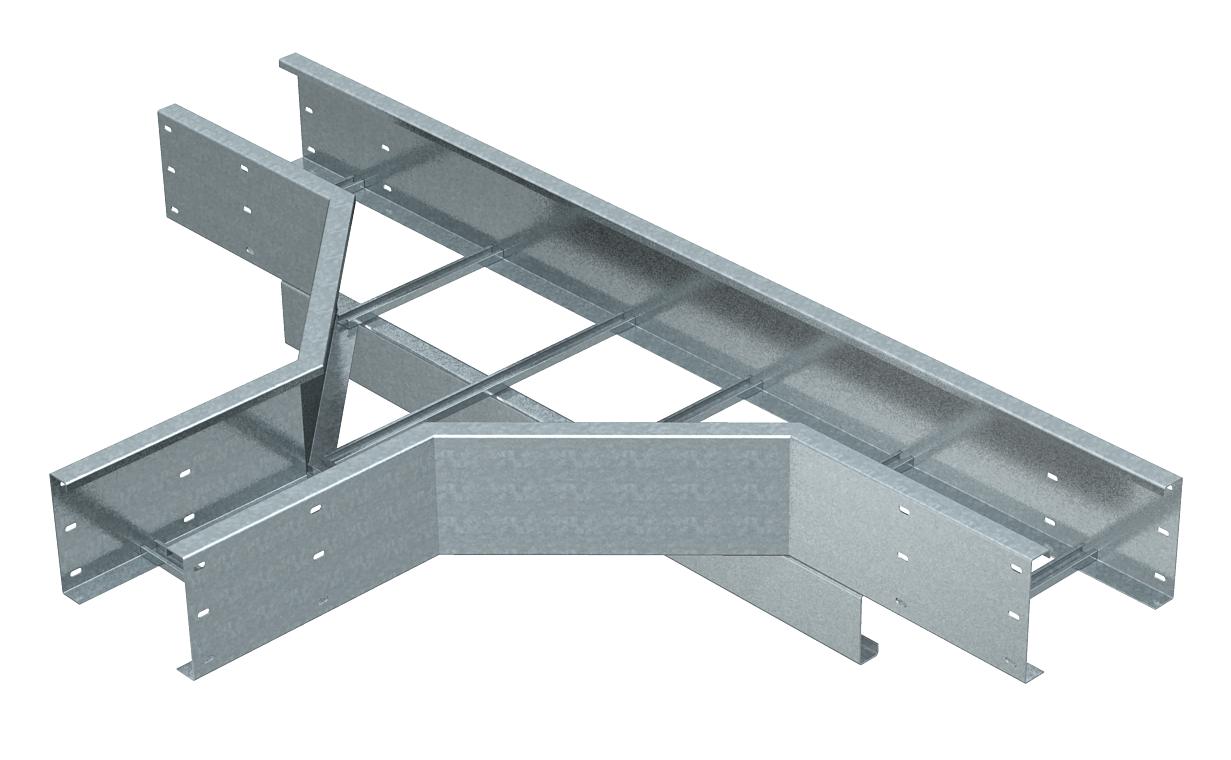

T piece, horizontal, for all wide span cable ladders of 200 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable ladder, side height 200 mm
Technical data

Technical data

Colour zinc

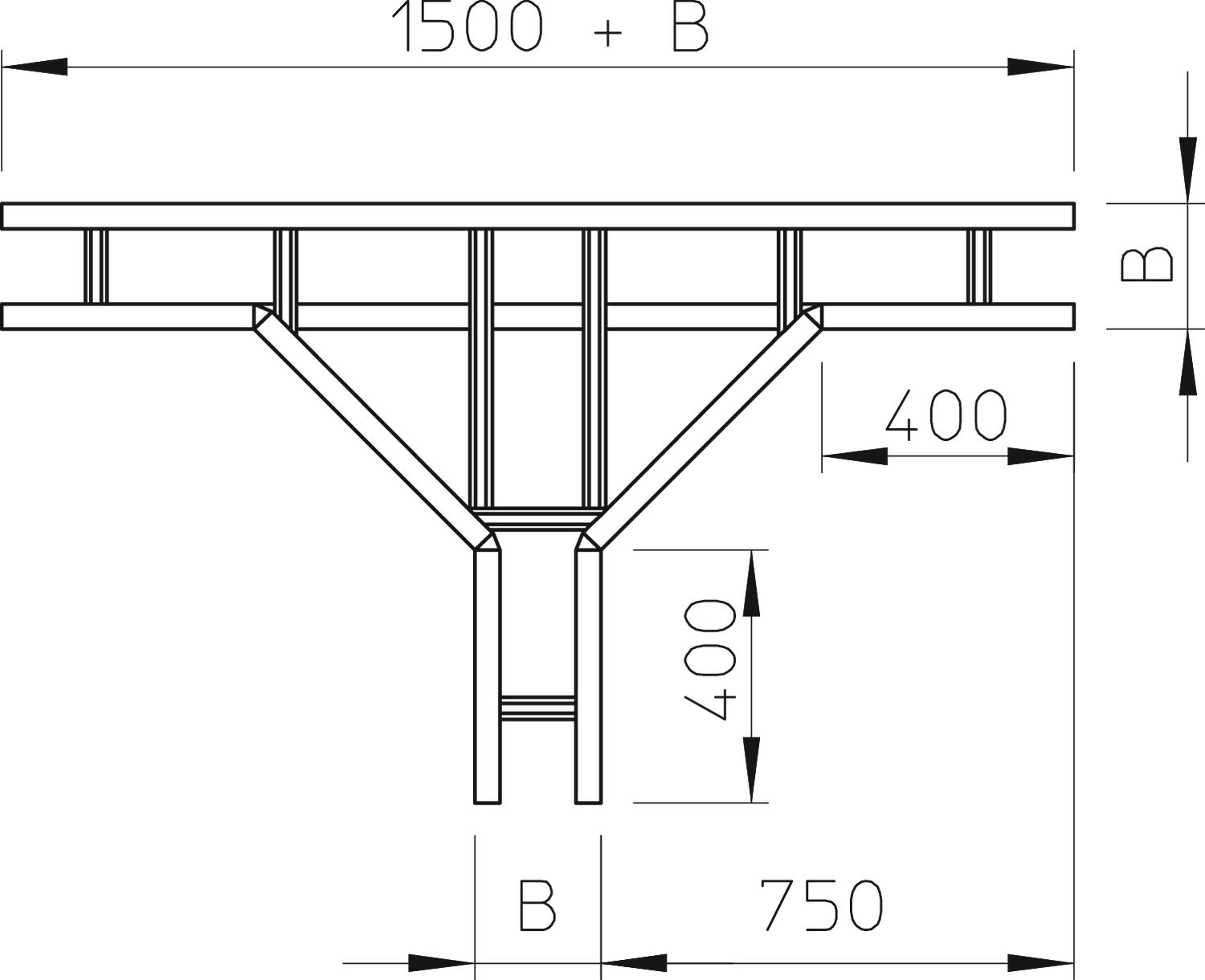

Dimension 200x200
Dimension B 200 mm
Dimension R 500 mm
Height 200 mm
Maintain electrical functions no
Material Steel
Rail thickness 2,5 mm
Rustproof steel, pickled no
Side rail version Flat profile
Surface Hot-dip galvanised
Version of the rungs Profile unperforated
Wide-span version yes
Width 200 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
WLT 2020 FT 200 mm 2.5 mm 6233627
1 piece
WLT 2030 FT 300 mm 2.5 mm 6233635
1 piece
WLT 2040 FT 400 mm 2.5 mm 6233643
1 piece
WLT 2050 FT 500 mm 2.5 mm 6233651
1 piece
WLT 2060 FT 600 mm 2.5 mm 6233678
1 piece
