T connector 30 | 16 | 60

morepic-1

morepic-2

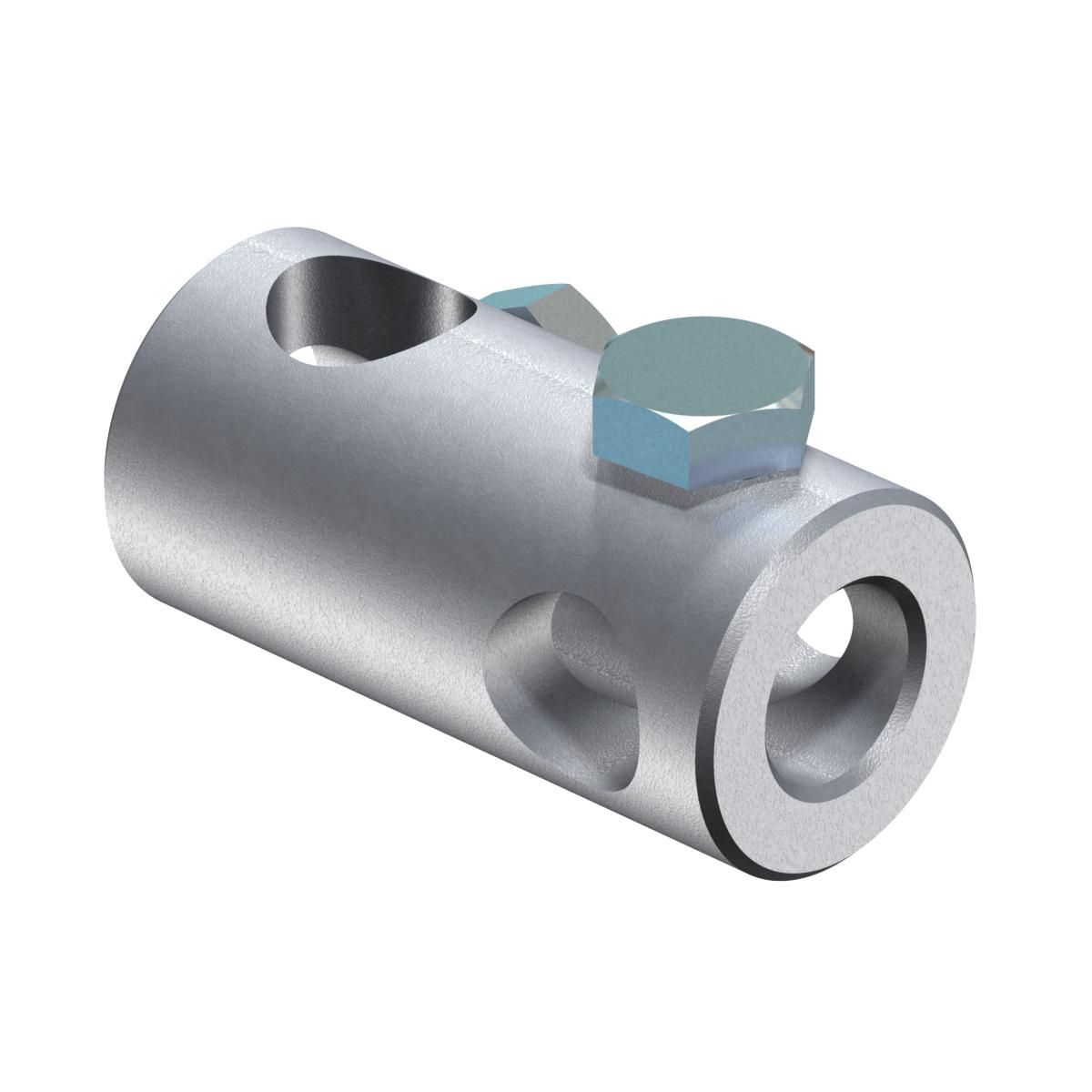

T connector

Item no. 5408158 | EAN 4012195613237

Item no. / Types

Dimension d min.

Dimension d Ø

Dimension L

Product description

Product description

• T connector for installation of insulating rods

• With M10 bolts

Technical data

Technical data

Connection	Round conductor
Dimension	16mm

Material	Aluminium

Dimensions

Dimension d min.	30 mm
Dimension d Ø	16 mm

Dimension L	60 mm
Length	60 mm

All types

All types

Types	Dimension d min.	Dimension d Ø	Dimension L	Item no.	Quantity	SSU

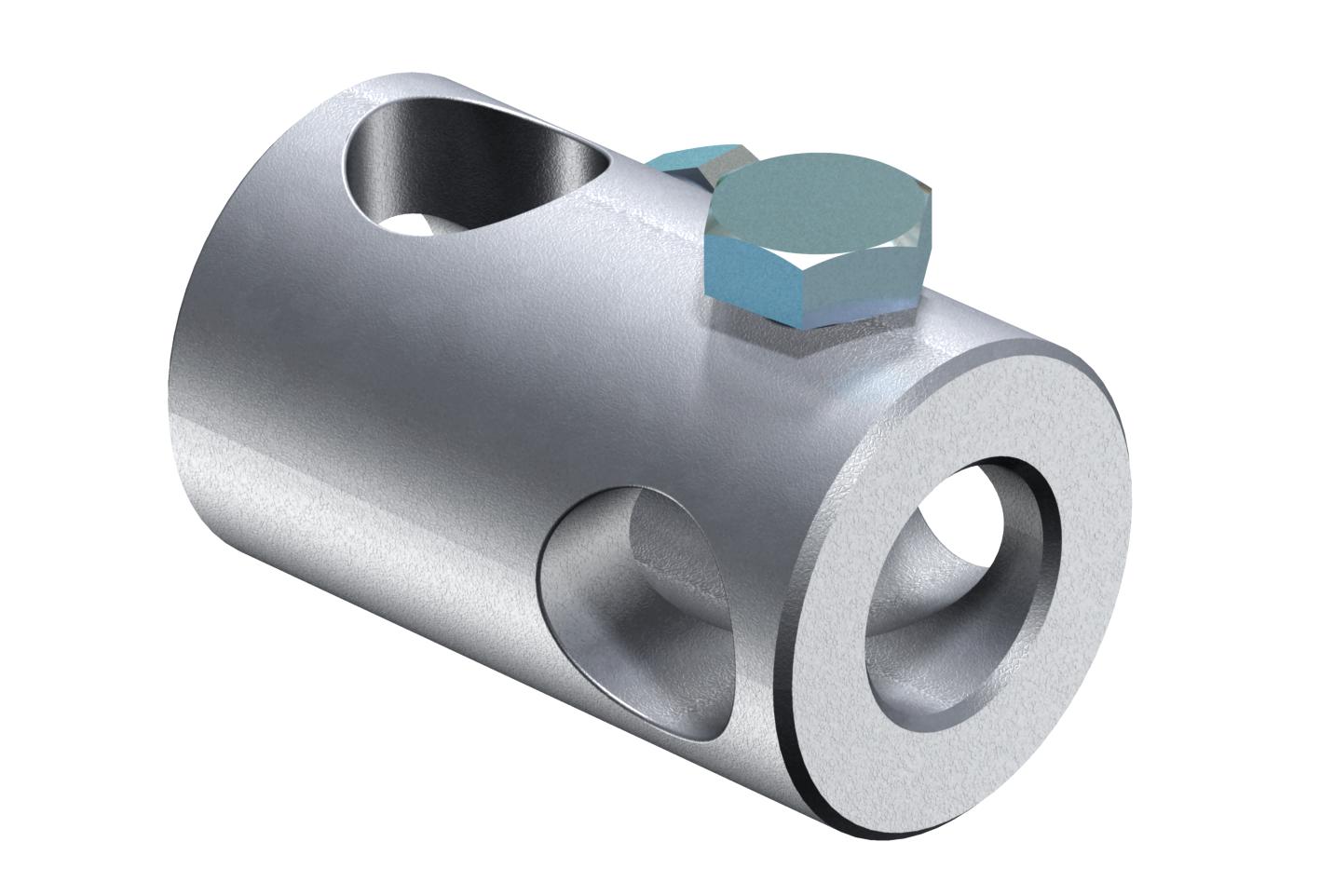

101 IT	40 mm	20 mm	65 mm	5408156	piece	10 piece
101 IT-16	30 mm	16 mm	60 mm	5408158	piece	10 piece

Downloads

Data sheet 101 IT-16 / 5408158 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity 101 IT-16 / 5408158 , 0.06MB , pdf

Download

Product graphic 101 IT-16 / 5408158, 88.76 kB, jpg

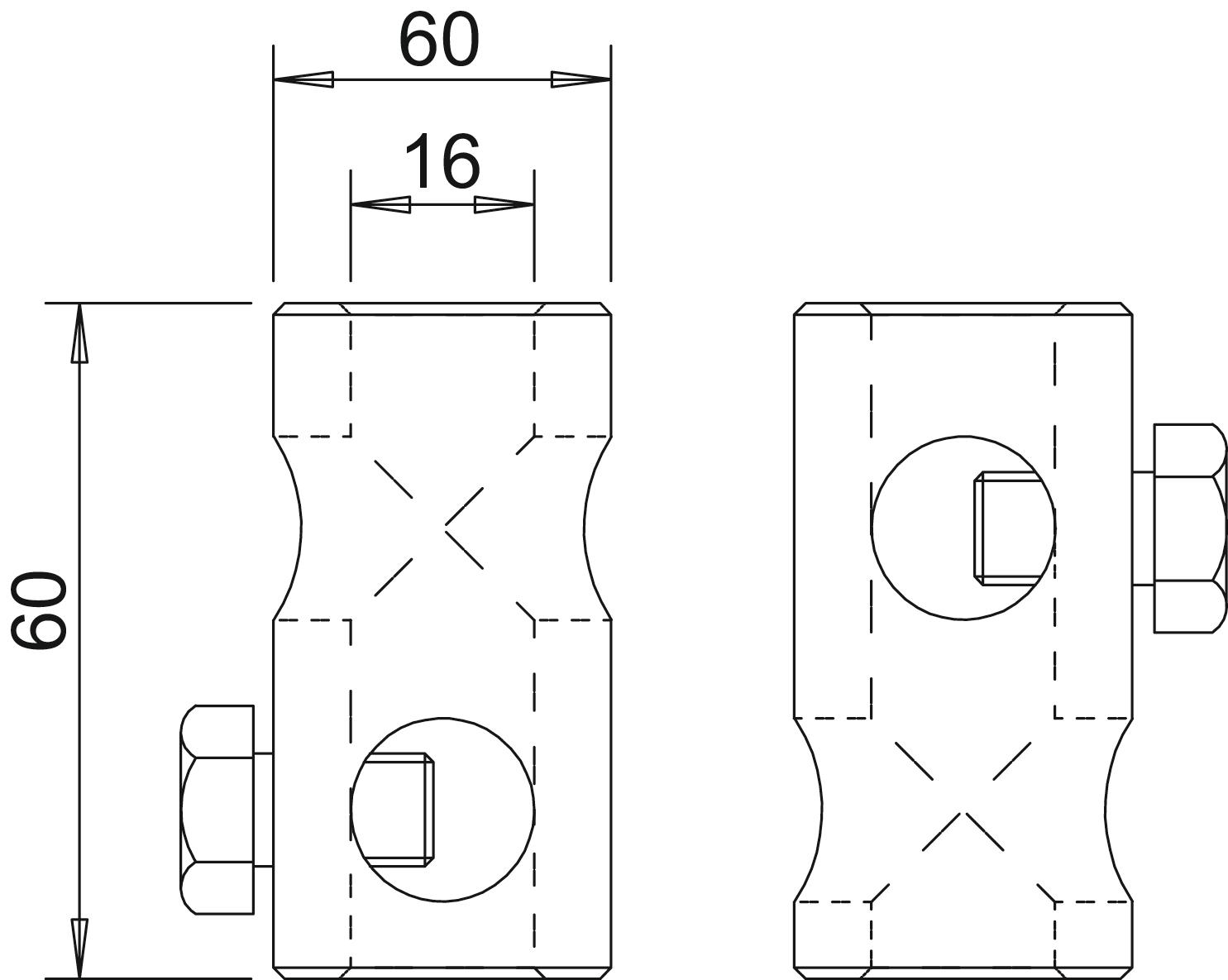

Scale drawing 101 IT-16 / 5408158, 69.85 kB, jpg

101 IT-16 / 5408158

5408158_KSTP1.stp, 451.50 kB
