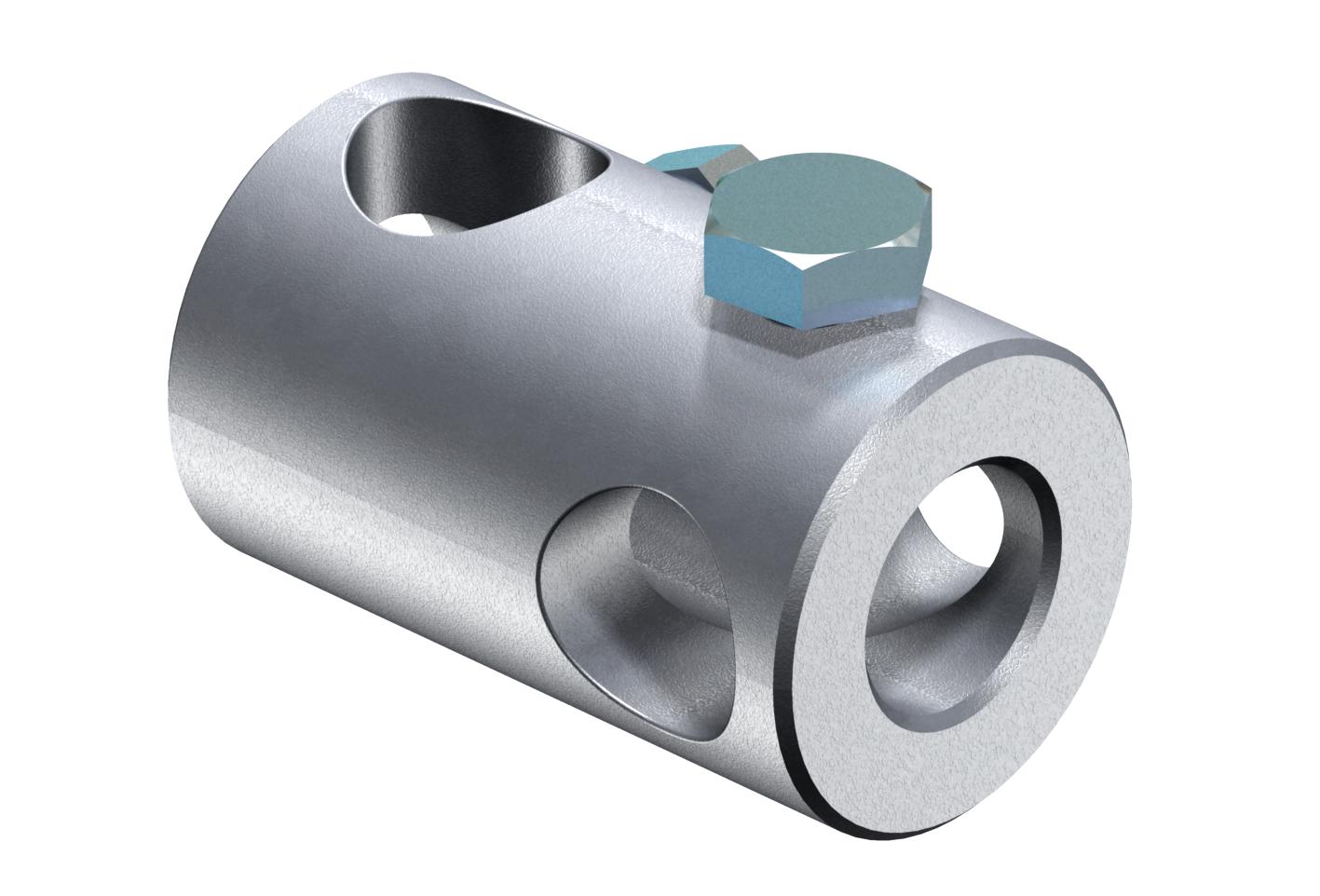

T connector

Item no. 5408156 | EAN 4012195681496

Product description

Product description

• T connector for installation of insulating rods

• With M10 bolts

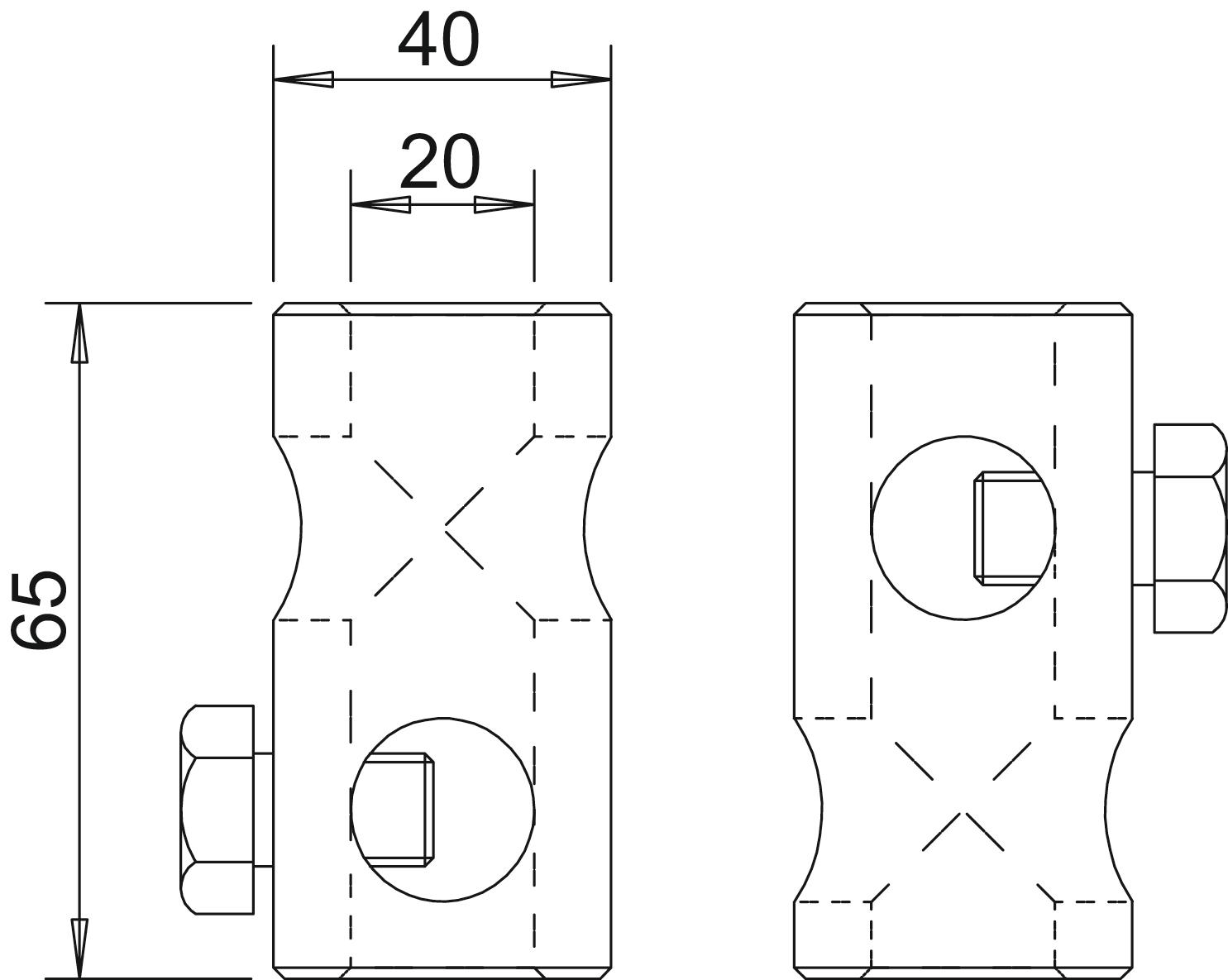

Technical data

Technical data

Connection Round conductor
Dimension 20mm
Dimension d min. 40 mm
Dimension d Ø 20 mm
Dimension L 65 mm
Length 65 mm
Material Aluminium
All types

All types

Types Dimension d min. Dimension d Ø Dimension L Item no. Quantity SSU
101 IT 40 mm 20 mm 65 mm 5408156
10 piece
101 IT-16 30 mm 16 mm 60 mm 5408158
10 piece
