T piece 110 FS 400 | 1.5
morepic-1 morepic-2 video-1

T piece 110 FS

Item no. 6225294 | EAN 4012196444342

1.5 mm
Product description

Product description

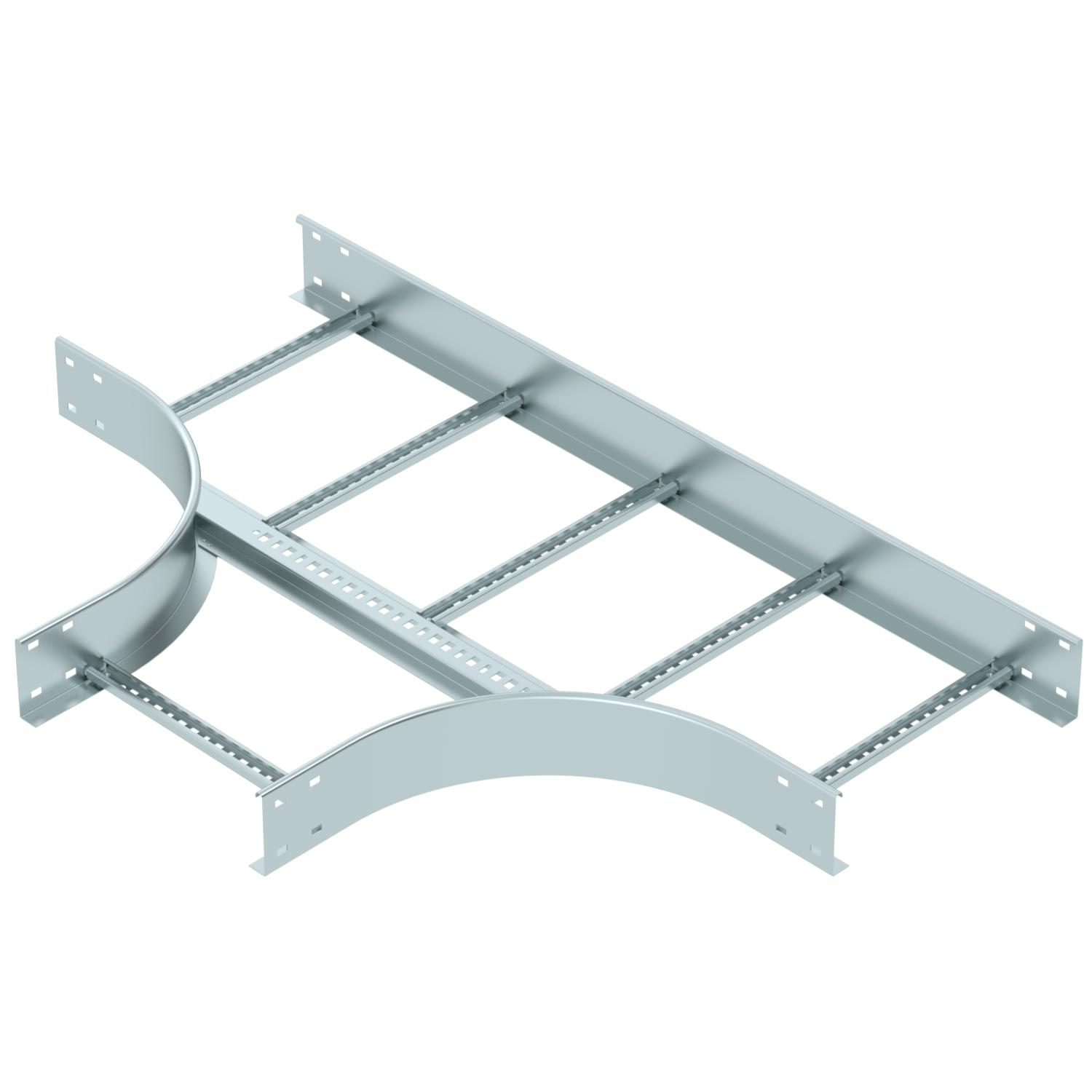

T piece, horizontal, with welded rung for all cable ladder types of 110 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
Technical data

Technical data

Connector version Without connectors

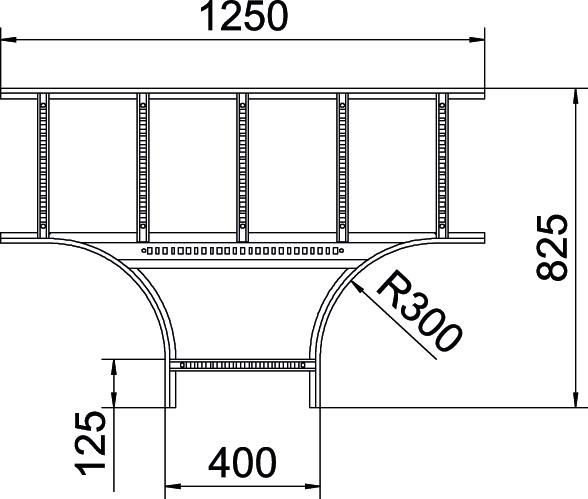

Dimension 110x400
Dimension B 400 mm
Dimension R 300 mm
Height 110 mm
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side rail version Flat profile
Surface Strip galvanized
Type Exit symmetrical
Version of the rungs Profile unperforated
Wide-span version no
Width 400 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
LT 1120 R3 FS 200 mm 1.5 mm 6225290
1 piece
LT 1130 R3 FS 300 mm 1.5 mm 6225292
1 piece
LT 1140 R3 FS 400 mm 1.5 mm 6225294
1 piece
LT 1150 R3 FS 500 mm 1.5 mm 6225296
1 piece
LT 1160 R3 FS 600 mm 1.5 mm 6225298
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Straight connector FS Straight connector FS LVG 110 FS 6216545
10 piece
