T piece 110 FT 1000 | 2
morepic-1 morepic-2 video-1 video-2

T piece 110 FT

Item no. 6225368 | EAN 4012196444700

2 mm
Product description
Product description

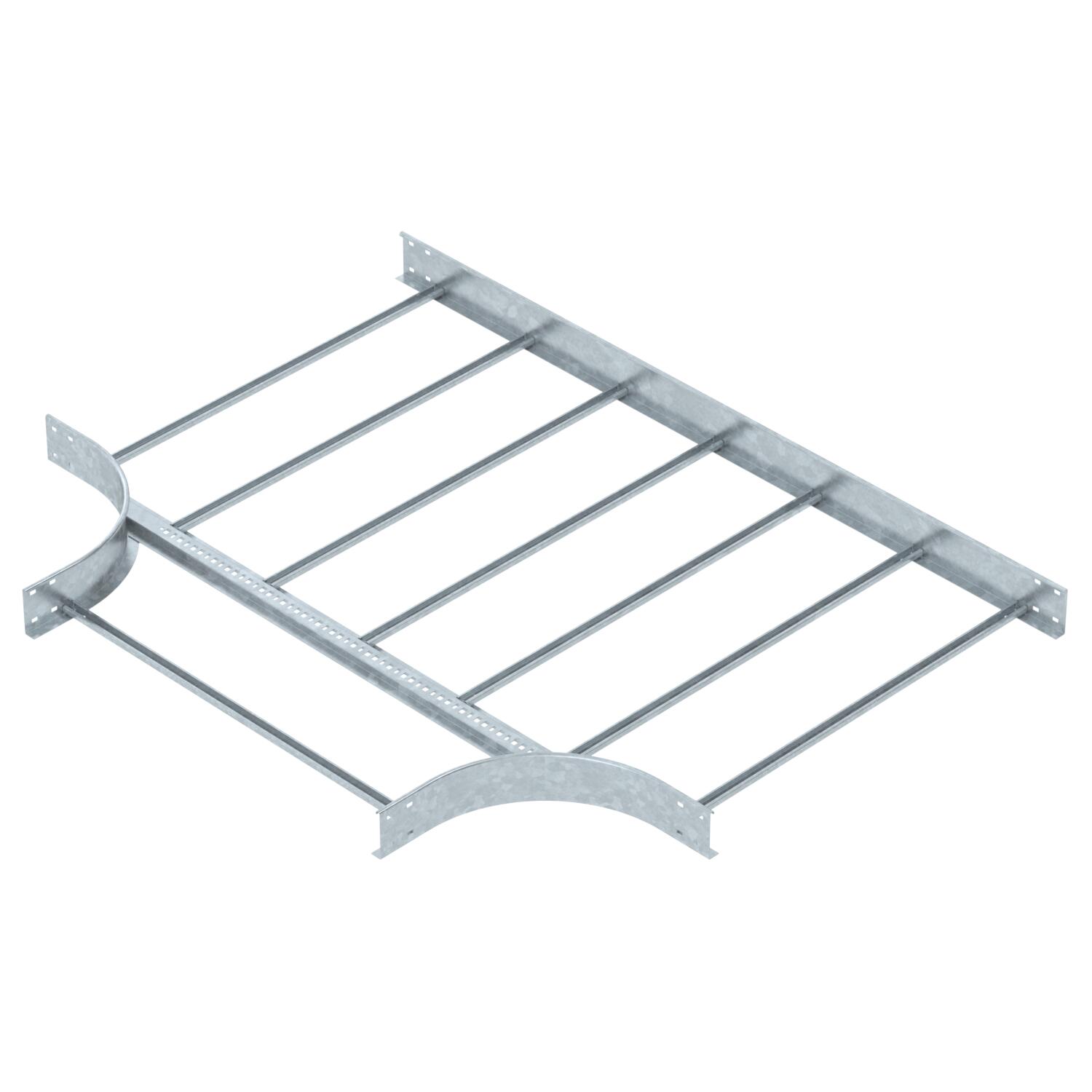

T piece, horizontal, with welded rung for all cable ladder types of 110 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
Technical data

Technical data

Colour zinc
Connector version Without connectors
Dimension 110x1000
Dimension B 1000 mm
Dimension R 300 mm
Height 110 mm
Maintain electrical functions no
Material Steel
Rail thickness 2 mm
Rustproof steel, pickled no
Side rail version Flat profile
Surface Hot-dip galvanised
Type Exit symmetrical
Version of the rungs Profile unperforated
Wide-span version no
Width 1000 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
SLT 1120 R3 FT 200 mm 2 mm 6225350
1 piece
SLT 1130 R3 FT 300 mm 2 mm 6225352
1 piece
SLT 1140 R3 FT 400 mm 2 mm 6225354
1 piece
SLT 1145 R3 FT 450 mm 2 mm 6225356
1 piece
SLT 1150 R3 FT 500 mm 2 mm 6225358
1 piece
SLT 1160 R3 FT 600 mm 2 mm 6225360
1 piece
SLT 1175 R3 FT 750 mm 2 mm 6225362
1 piece
SLT 1180 R3 FT 800 mm 2 mm 6225364
1 piece
SLT 1190 R3 FT 900 mm 2 mm 6225366
1 piece
SLT 11100 R3 FT 1000 mm 2 mm 6225368
1 piece
SLT 11120 R3 FT 1200 mm 2 mm 6225372
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Straight connector FT Straight connector FT LVG 110 FT 6216548
10 piece
Downloads

Download

Download
Download
Download
Download
Download

EU declaration of conformity SLT 11100 R3 FT / 6225368 , 0.10MB , pdf
Download
UK Declaration of Conformity SLT 11100 R3 FT / 6225368 , 0.09MB , pdf
Download

Download
Download

SLT 11100 R3 FT / 6225368
Download
