T piece 110 FT

Item no. 6225352 | EAN 4012196444533

2 mm
Product description
Product description

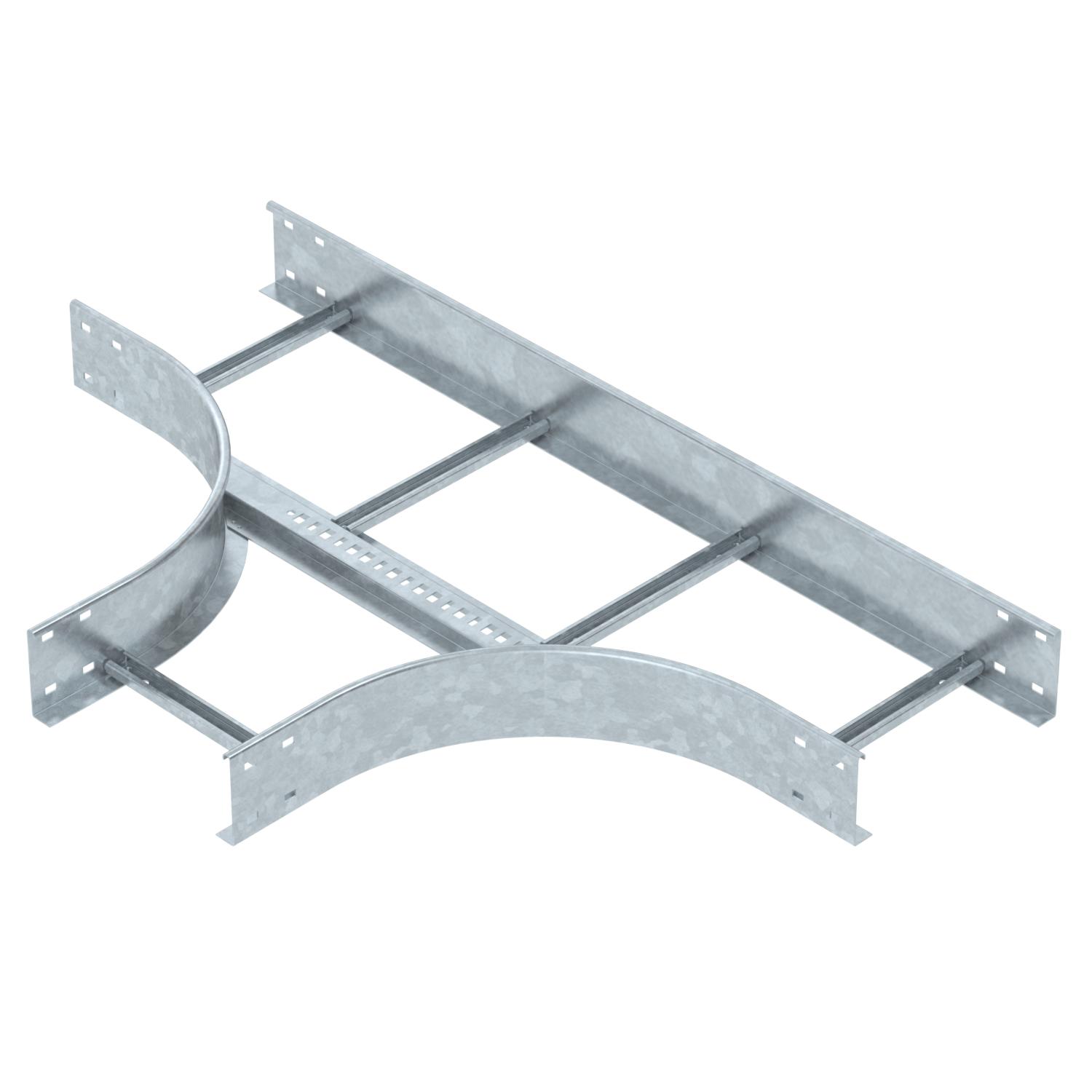

T piece, horizontal, with welded rung for all cable ladder types of 110 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
Technical data

Technical data

Colour zinc
Connector version Without connectors

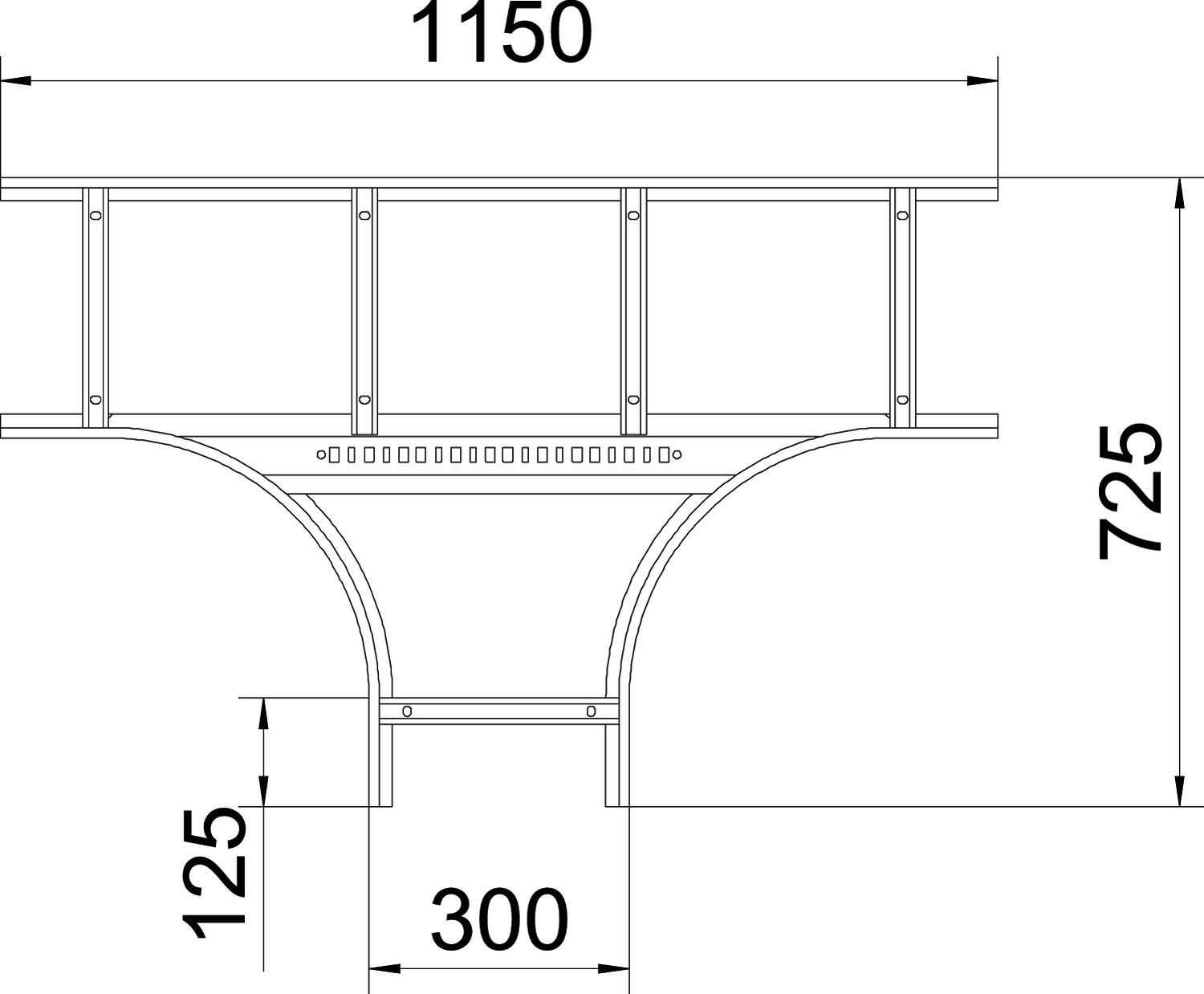

Dimension 110x300
Dimension B 300 mm
Dimension R 300 mm
Height 110 mm
Maintain electrical functions no
Material Steel
Rail thickness 2 mm
Rustproof steel, pickled no
Side rail version Flat profile
Surface Hot-dip galvanised
Type Exit symmetrical
Version of the rungs Profile unperforated
Wide-span version no
Width 300 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
SLT 1120 R3 FT 200 mm 2 mm 6225350
1 piece
SLT 1130 R3 FT 300 mm 2 mm 6225352
1 piece
SLT 1140 R3 FT 400 mm 2 mm 6225354
1 piece
SLT 1145 R3 FT 450 mm 2 mm 6225356
1 piece
SLT 1150 R3 FT 500 mm 2 mm 6225358
1 piece
SLT 1160 R3 FT 600 mm 2 mm 6225360
1 piece
SLT 1175 R3 FT 750 mm 2 mm 6225362
1 piece
SLT 1180 R3 FT 800 mm 2 mm 6225364
1 piece
SLT 1190 R3 FT 900 mm 2 mm 6225366
1 piece
SLT 11100 R3 FT 1000 mm 2 mm 6225368
1 piece
SLT 11120 R3 FT 1200 mm 2 mm 6225372
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Straight connector FT Straight connector FT LVG 110 FT 6216548
10 piece
