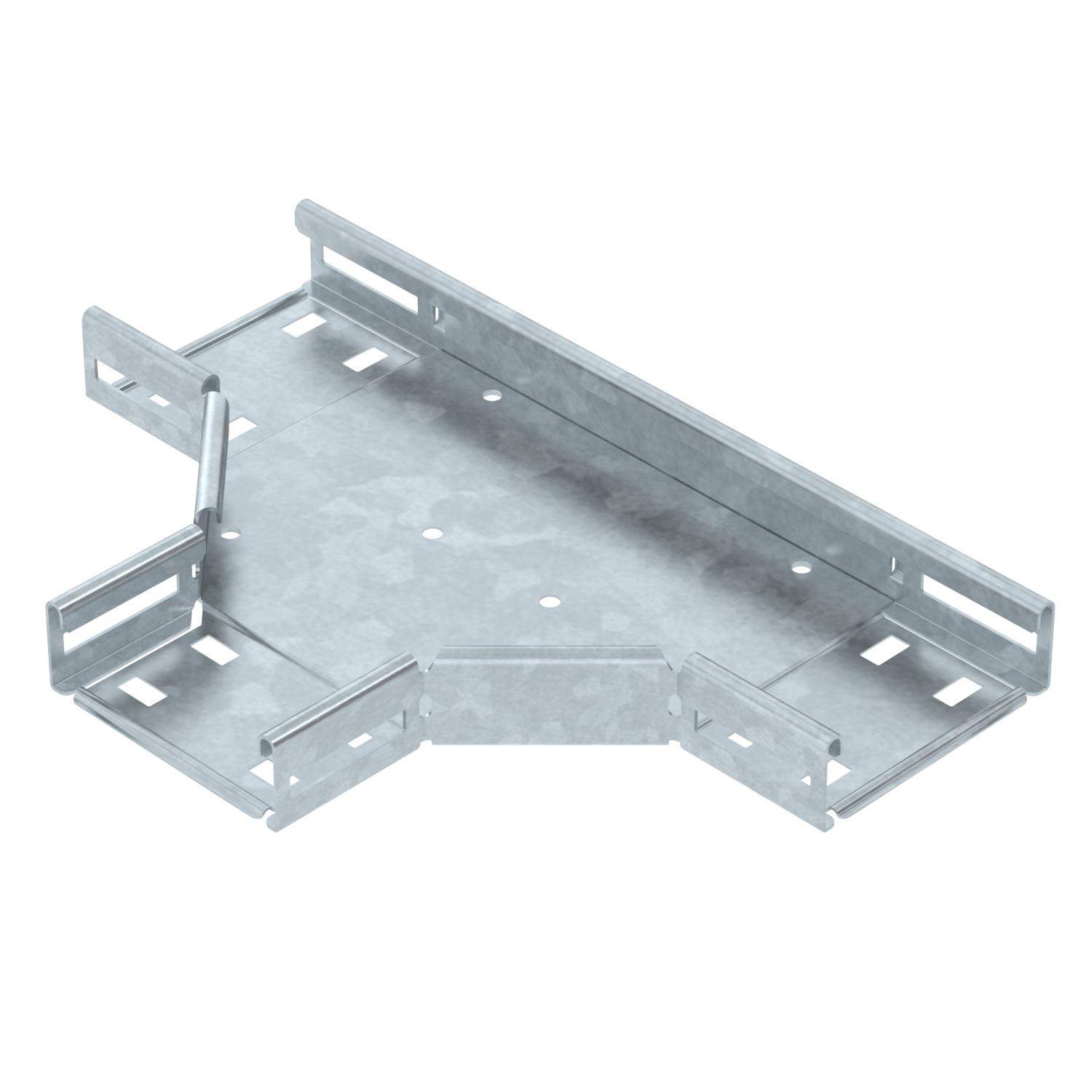

T piece 35 FT
Item no. 6038010 | EAN 4012197347222
- Product description
-
Product descriptionT piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

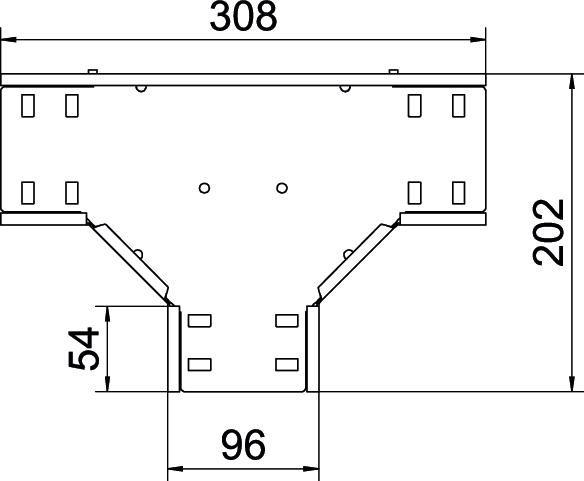

Colour zinc Connector version Integrated connector Dimension 35x100 Dimension B 100 mm Height 35 mm Maintain electrical functions no Material Steel NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 9 St. Rustproof steel, pickled no Surface Hot-dip galvanised Type T piece horizontal Type of connector, cable support system Screwed Wide-span version no Width 100 mm Width of the branch 100 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Cover, T piece DD
RTD 100 DD 6038640 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet RT 310 FT / 6038010 , 0.20MB , pdfEU declaration of conformity RT 310 FT / 6038010 , 0.15MB , pdfUK Declaration of Conformity RT 310 FT / 6038010 , 0.14MB , pdfREACH Declaration of conformity RT 310 FT / 6038010 , 0.12MB , pdfRoHS Declaration of conformity RT 310 FT / 6038010 , 0.13MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
