T-piece
Item no. 6074912 | EAN 4012195453468
- Product description
-
Product description

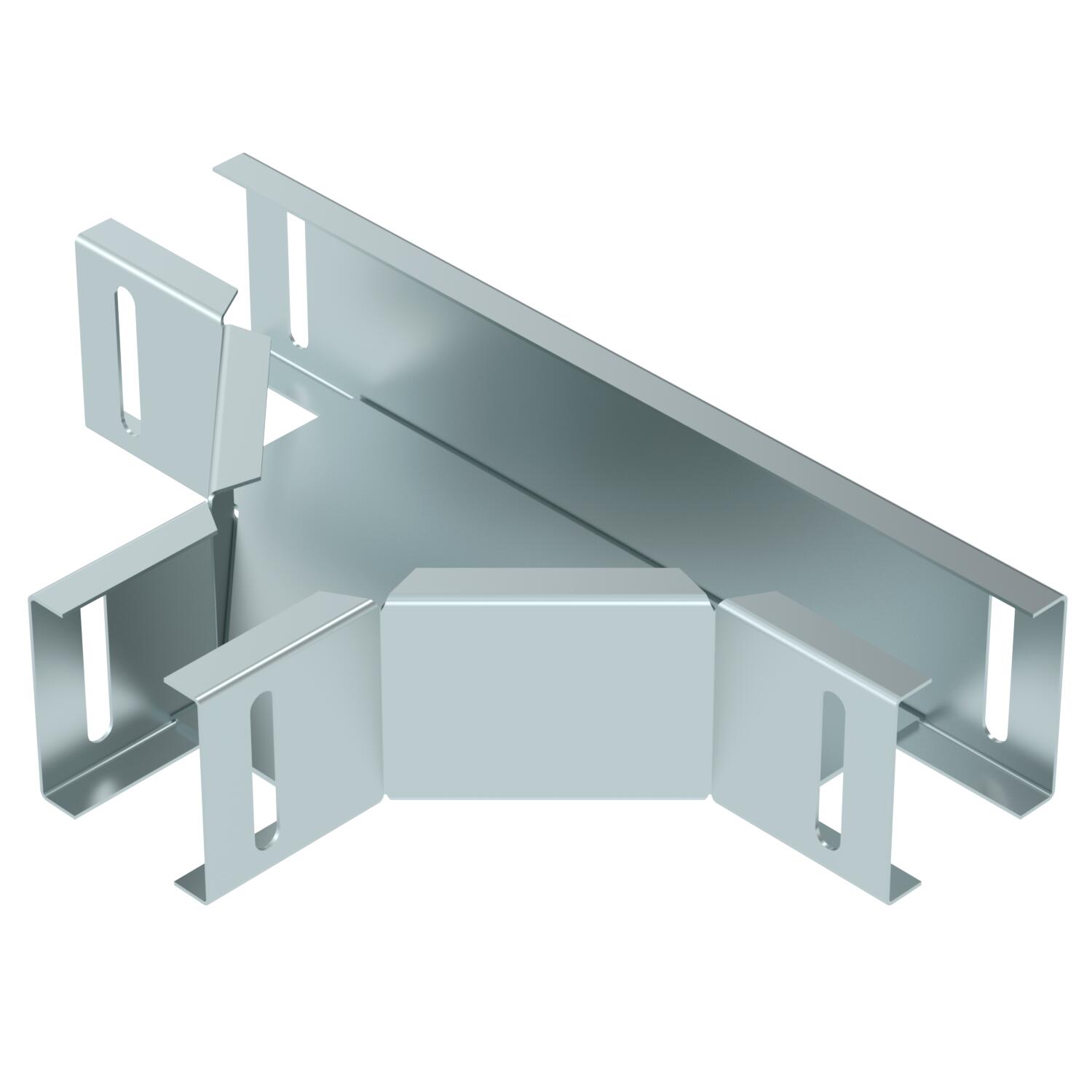

Horizontal tee, for AZ small duct AZK 050 and luminaire support channel LTS 50.
-
- Technical data
-
Technical data

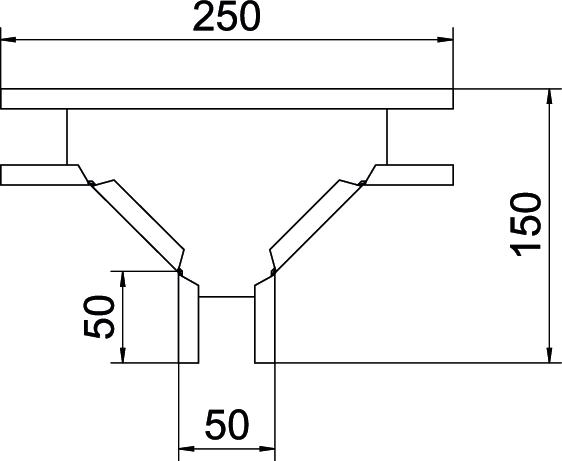

Connector version Without connectors Dimension 50x50 Height 50 mm Maintain electrical functions no Material Steel NATO hole pattern no Plate thickness 1 mm Rail thickness 1 mm Rustproof steel, pickled no Surface Strip galvanised zinc/aluminium, Double Dip Type T piece horizontal Wide-span version no Width 50 mm - All types
- Downloads
-
Data sheet LTS T DD / 6074912 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LTS T DD / 6074912 , 0.13MB , pdfREACH Declaration of conformity LTS T DD / 6074912 , 0.12MB , pdfRoHS Declaration of conformity LTS T DD / 6074912 , 0.12MB , pdfMounting instructions Mounting instructions, luminaire support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
