T piece 60 A2
Item no. 6225250 | EAN 4012196444199
- Product description
-

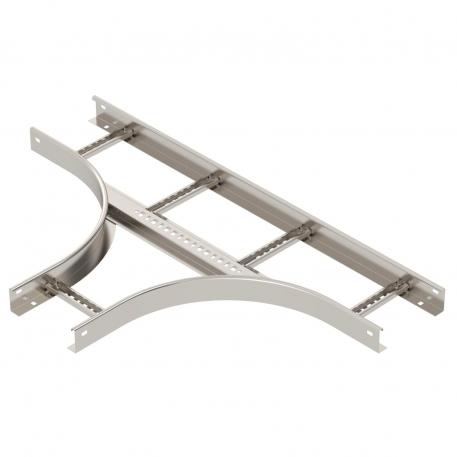

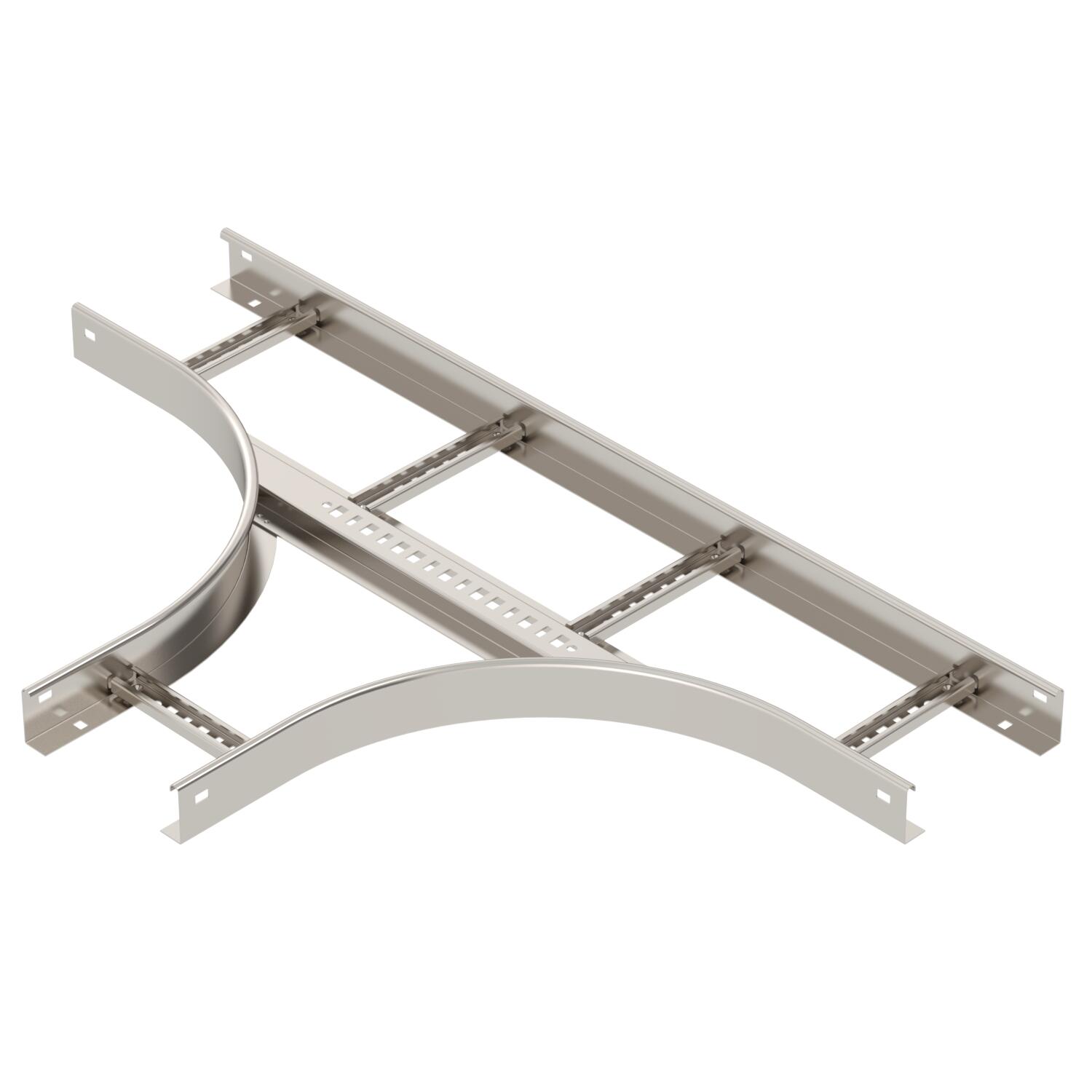

Product descriptionT piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.
-
- Technical data
-
Technical data

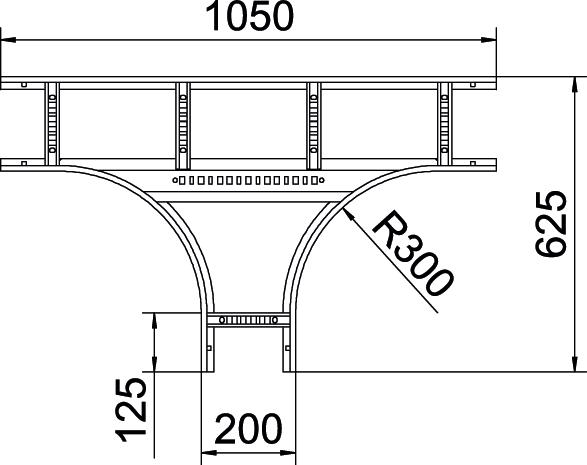

Colour stainless steel Connector version Without connectors Dimension 60x200 Dimension B 200 mm Dimension R 300 mm Height 60 mm Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Bright, treated Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector A2
LVG 60 A2 6208846 10 piece - Downloads
-
