Product description

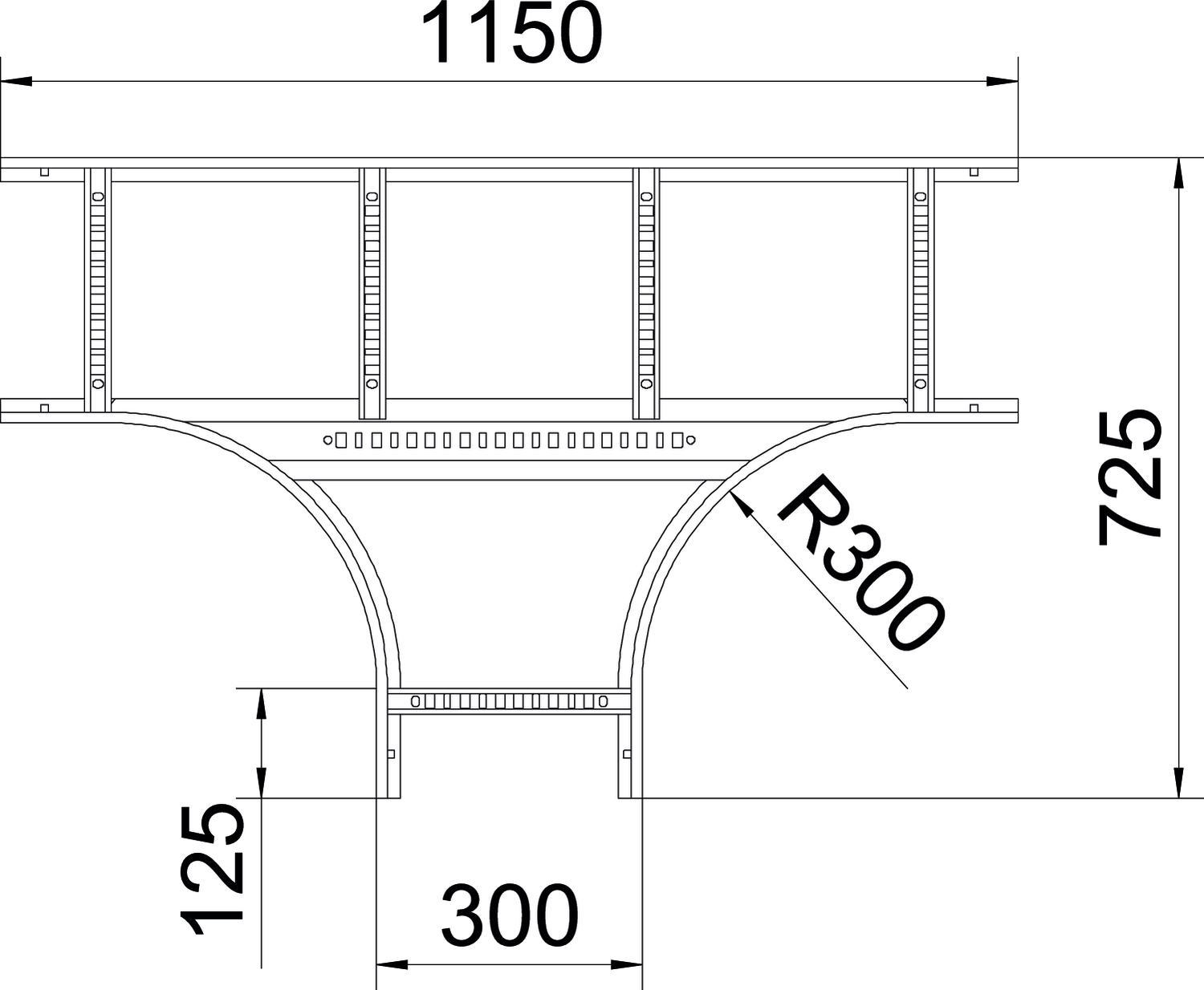

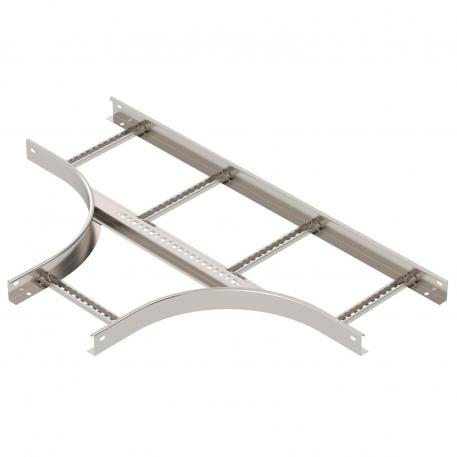

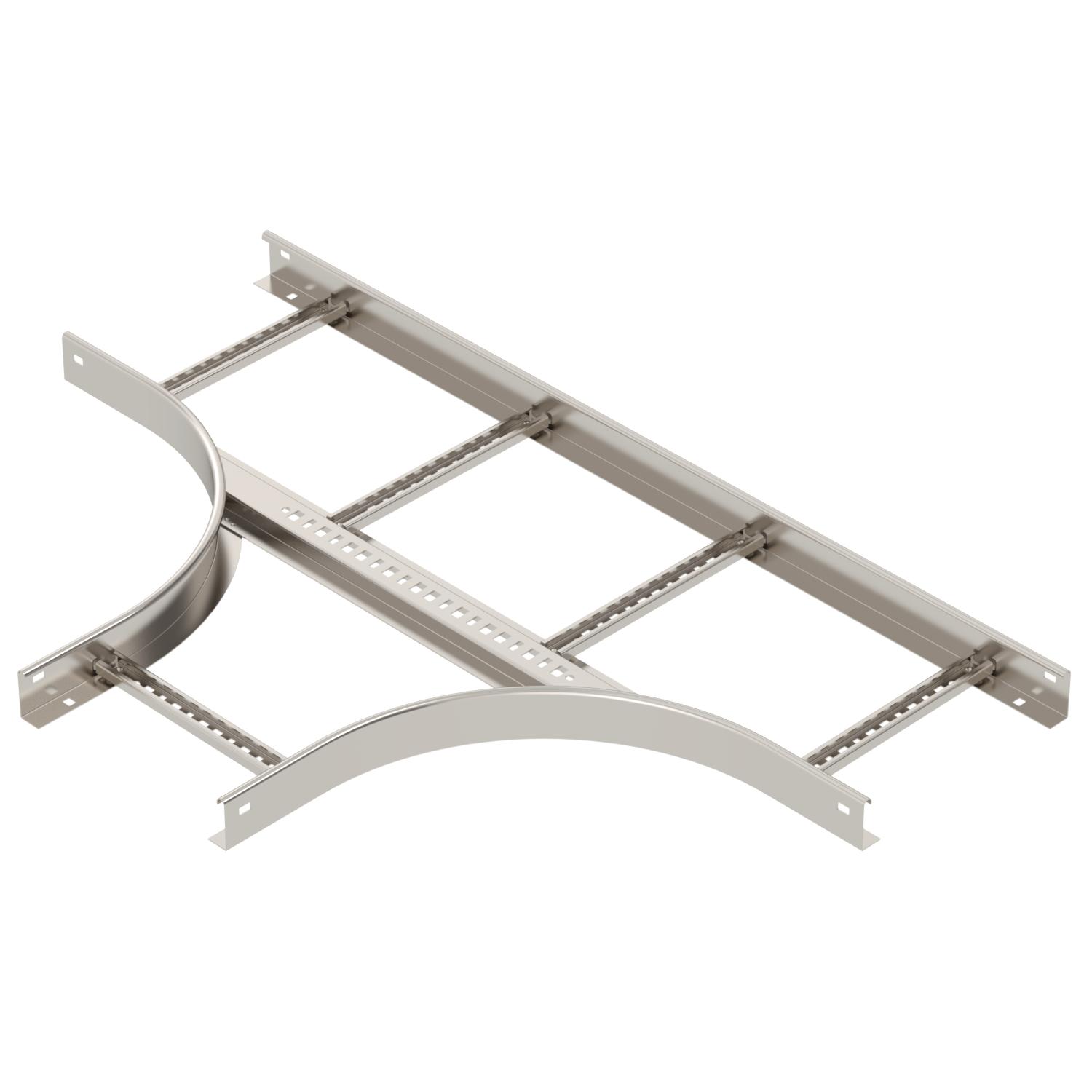

T piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.
- Technical data
-
Technical data
Connector version Without connectors Dimension 60x300 Dimension B 300 mm Dimension R 300 mm Height 60 mm Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Bright, treated Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 300 mm - All types
- Downloads
-
Data sheet LT 630 R3 A2 / 6225252 , 0.25MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LT 630 R3 A2 / 6225252 , 0.10MB , pdfUK Declaration of Conformity LT 630 R3 A2 / 6225252 , 0.09MB , pdfREACH Declaration of conformity LT 630 R3 A2 / 6225252 , 0.12MB , pdfRoHS Declaration of conformity LT 630 R3 A2 / 6225252 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
