T piece 60 A4 200 | 1.5
morepic-1 morepic-2 video-1

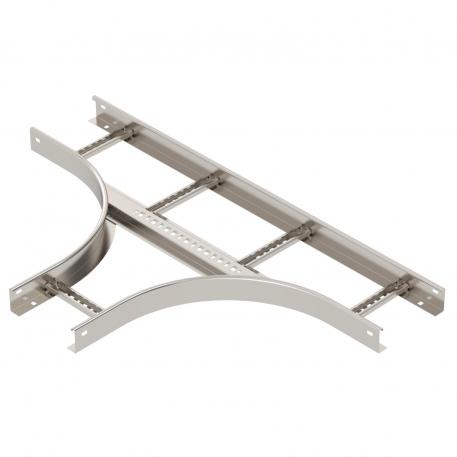

T piece 60 A4

Item no. 6225270 | EAN 4012196444243

1.5 mm
Product description
Product description

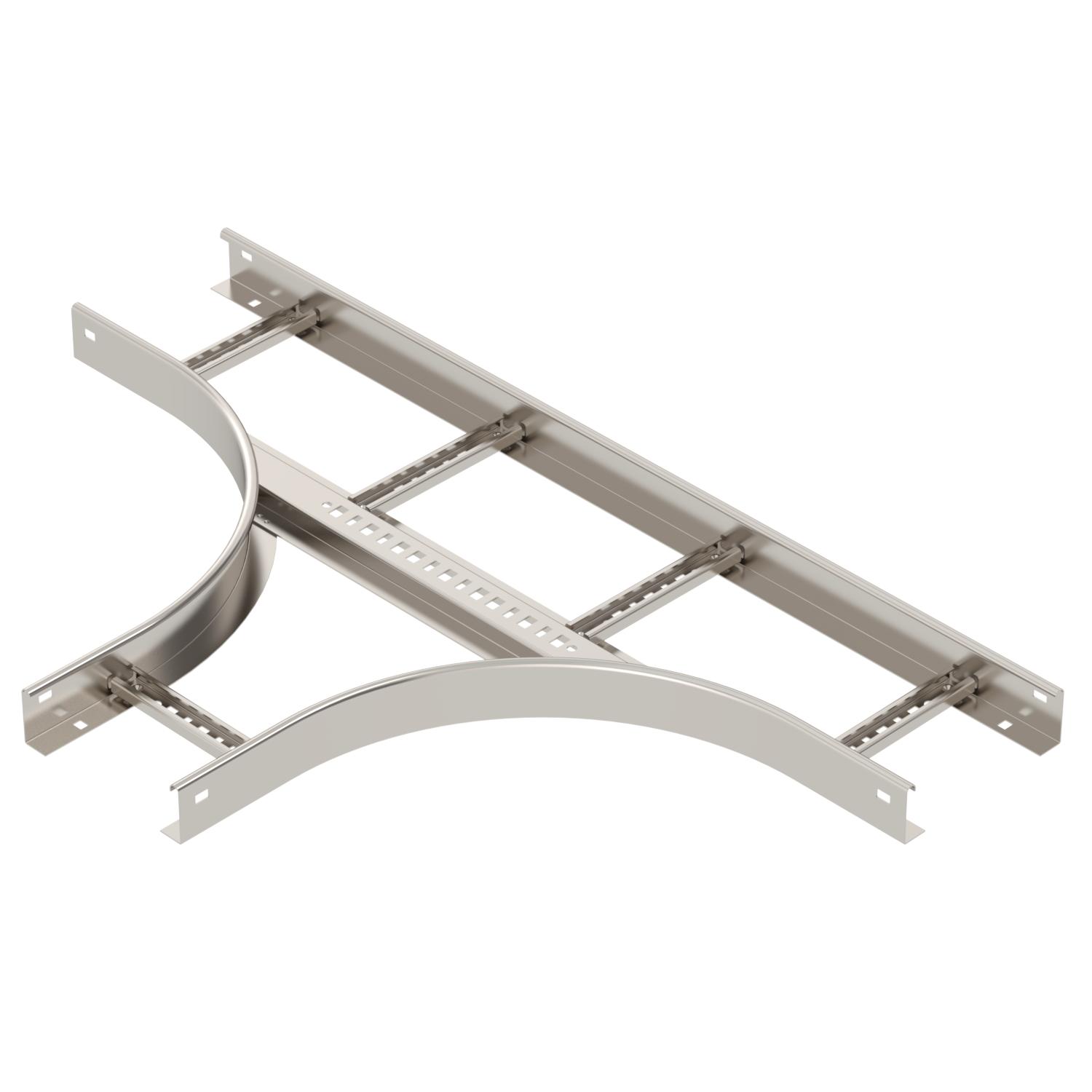

T piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
Technical data

Technical data

Colour stainless steel
Connector version Without connectors

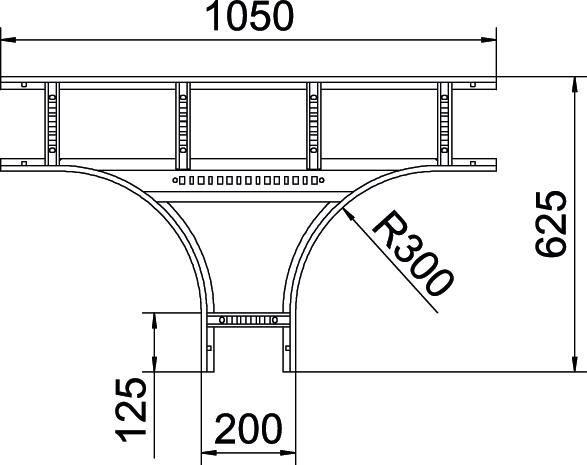

Dimension 60x200
Dimension B 200 mm
Dimension R 300 mm
Height 60 mm
Maintain electrical functions no
Material Stainless steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side rail version Flat profile
Surface Bright, treated
Type Exit symmetrical
Version of the rungs Profile unperforated
Wide-span version no
Width 200 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
LT 620 R3 A4 200 mm 1.5 mm 6225270
1 piece
LT 630 R3 A4 300 mm 1.5 mm 6225272
1 piece
LT 640 R3 A4 400 mm 1.5 mm 6225274
1 piece
LT 650 R3 A4 500 mm 1.5 mm 6225276
1 piece
LT 660 R3 A4 600 mm 1.5 mm 6225278
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Straight connector A4 Straight connector A4 LVG 60 A4 6208835
10 piece
