- Product description
-

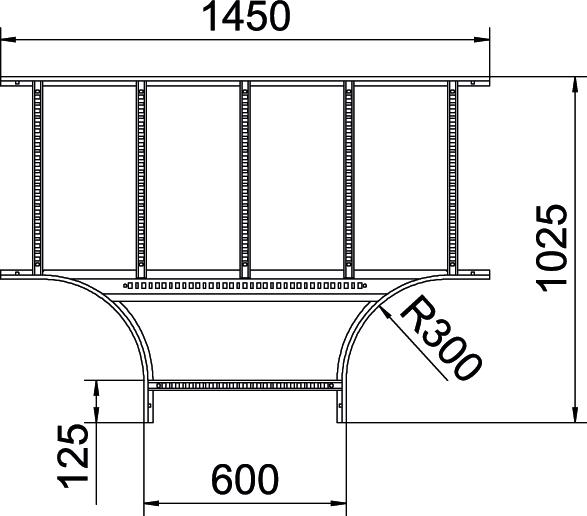

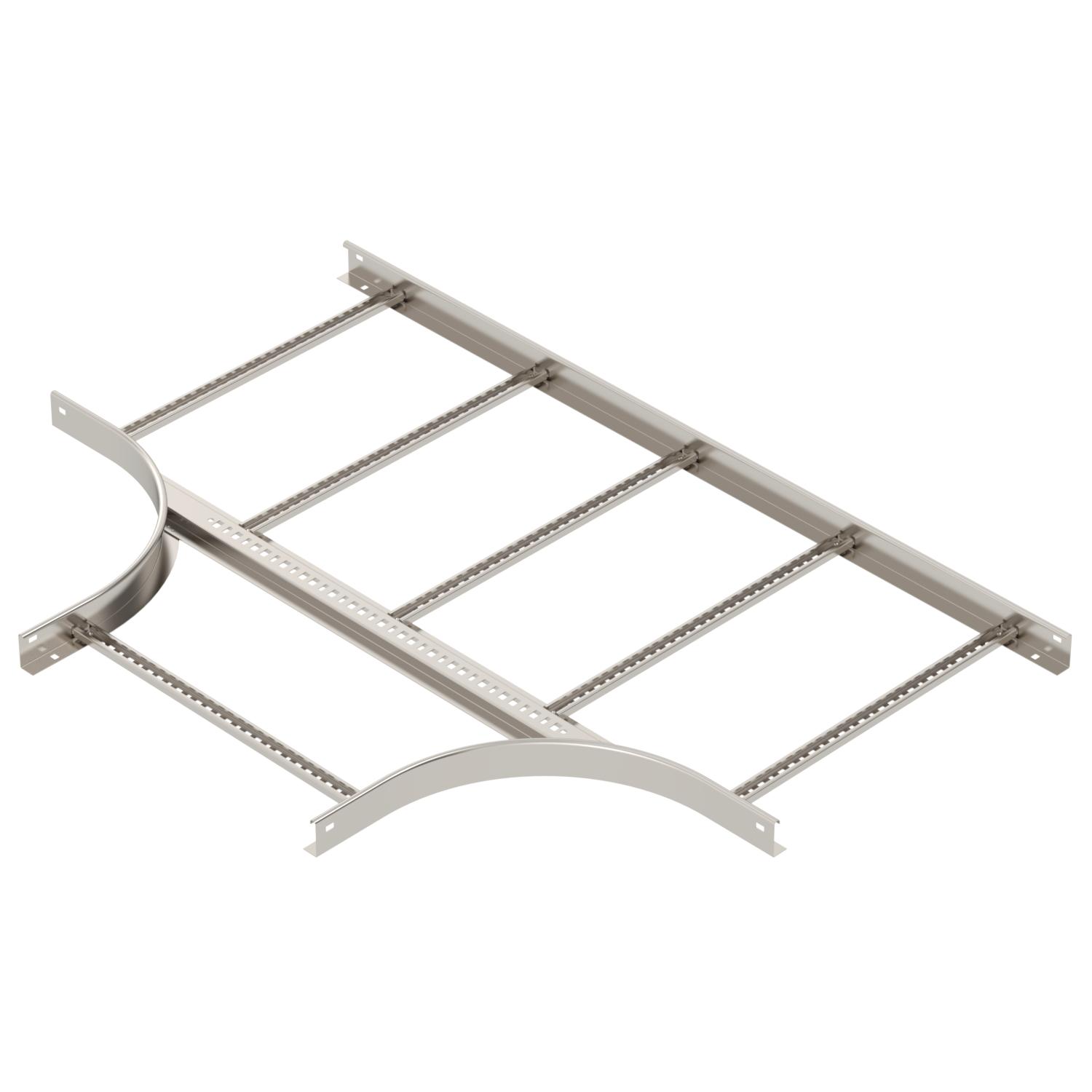

Product descriptionT piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.
- Technical data
-
Technical data
Colour stainless steel Connector version Without connectors Dimension 60x600 Dimension B 600 mm Dimension R 300 mm Height 60 mm Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Bright, treated Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 600 mm - All types
- Downloads
-
Data sheet LT 660 R3 A4 / 6225278 , 0.25MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LT 660 R3 A4 / 6225278 , 0.10MB , pdfUK Declaration of Conformity LT 660 R3 A4 / 6225278 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
