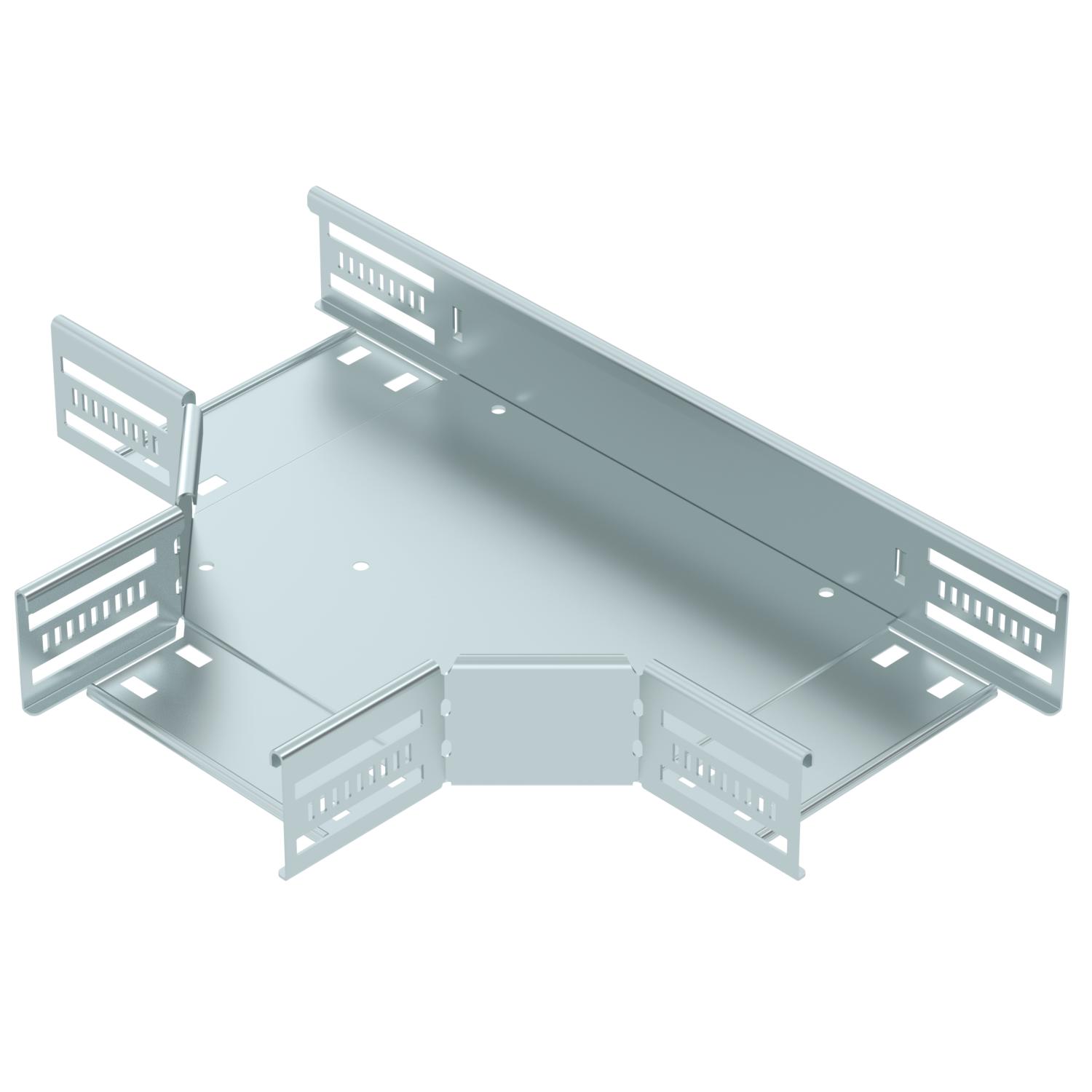

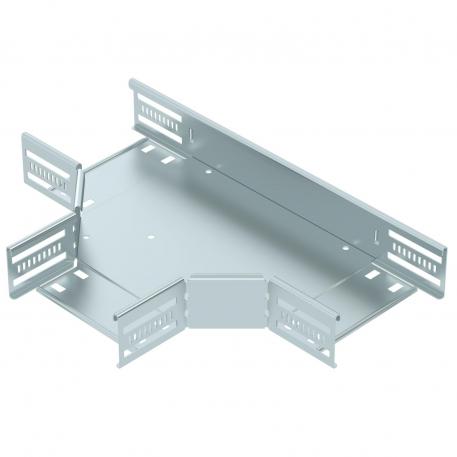

T piece 60 FS
Item no. 6038102 | EAN 4012197346652
- Product description
-
Product descriptionT piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

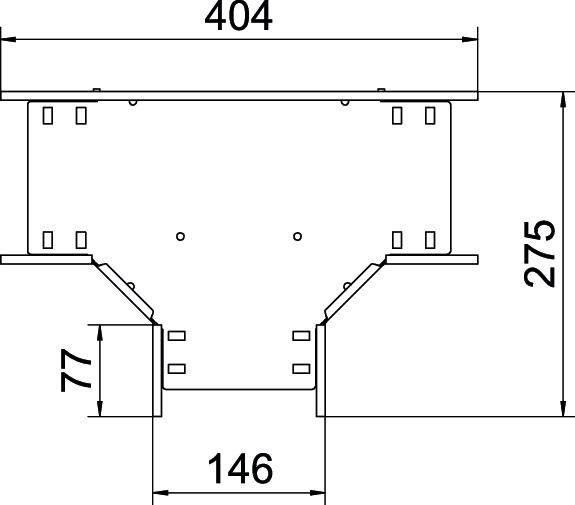

Colour zinc Connector version Integrated connector Dimension 60x150 Dimension B 150 mm Height 60 mm Maintain electrical functions yes Material Steel NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 15 St. Rustproof steel, pickled no Surface Strip galvanized Type T piece horizontal Type of connector, cable support system screwed/clamped Wide-span version no Width 150 mm Width of the branch 150 mm - All types
-
All types
-
System accessories
Products Types Item no. Quantity SSU
Cover, T piece FS
RTD 150 FS 6038602 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Double clamp, fitting mounting A2
DOP A2 6035998 10 piece - Downloads
-
Data sheet RT 615 FS / 6038102 , 0.21MB , pdfEU declaration of conformity RT 615 FS / 6038102 , 0.15MB , pdfUK Declaration of Conformity RT 615 FS / 6038102 , 0.14MB , pdfREACH Declaration of conformity RT 615 FS / 6038102 , 0.12MB , pdfRoHS Declaration of conformity RT 615 FS / 6038102 , 0.13MB , pdfSelection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdfSelection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
