- Product description
-
Product description

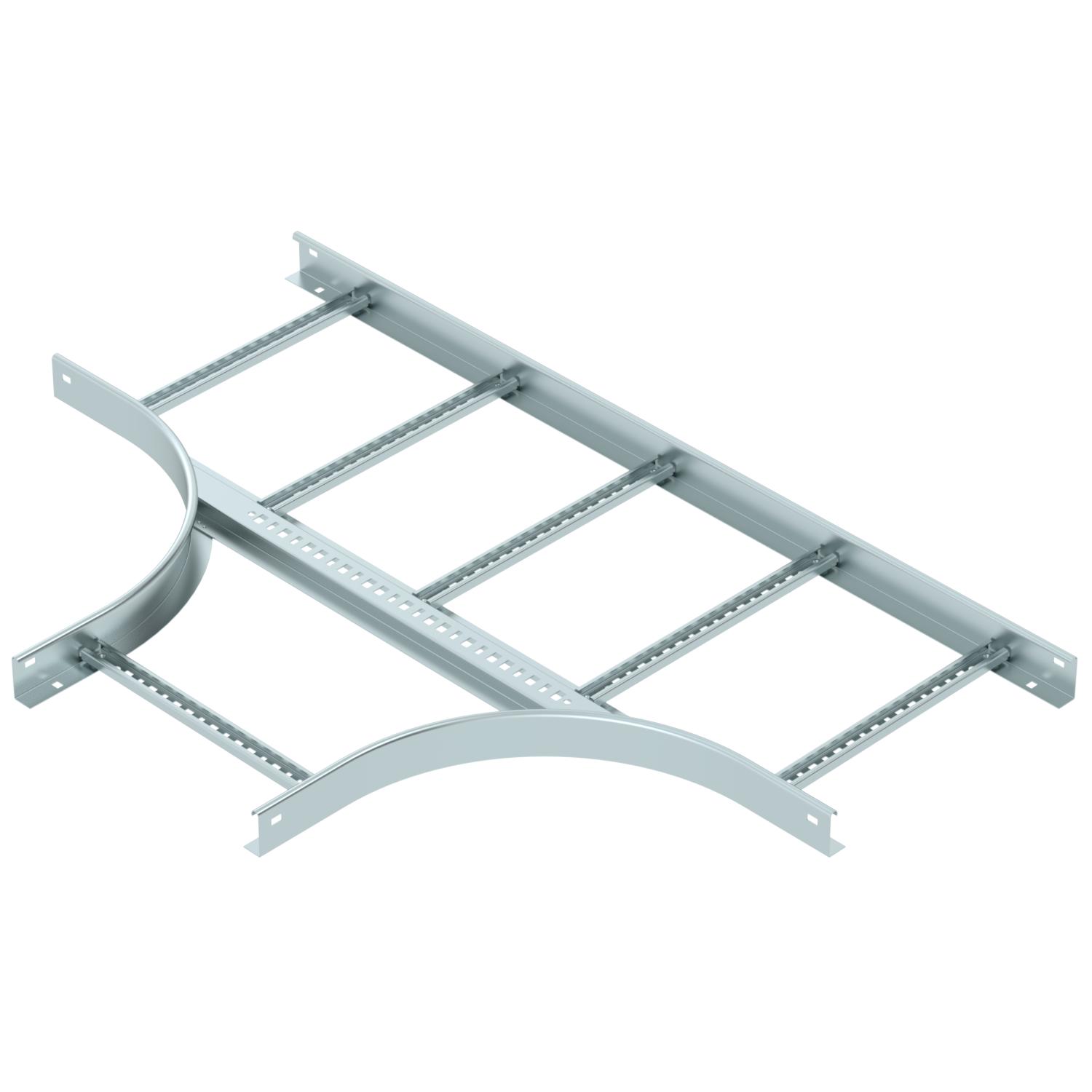

T piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.
- Technical data
-
Technical data

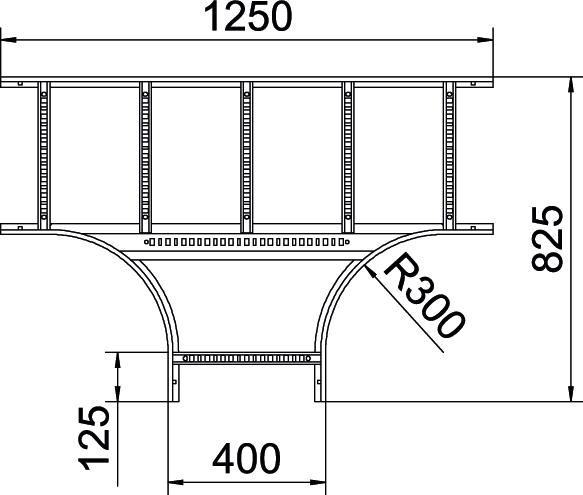

Connector version Without connectors Dimension 60x400 Dimension B 400 mm Dimension R 300 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Strip galvanized Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 400 mm - All types
- Downloads
-
Data sheet LT 640 R3 FS / 6225214 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LT 640 R3 FS / 6225214 , 0.10MB , pdfUK Declaration of Conformity LT 640 R3 FS / 6225214 , 0.09MB , pdfREACH Declaration of conformity LT 640 R3 FS / 6225214 , 0.12MB , pdfRoHS Declaration of conformity LT 640 R3 FS / 6225214 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
