T piece 60 FT
Item no. 6225234 | EAN 4012196444168
- Product description
-
Product descriptionT piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.
-
- Technical data
-
Technical data

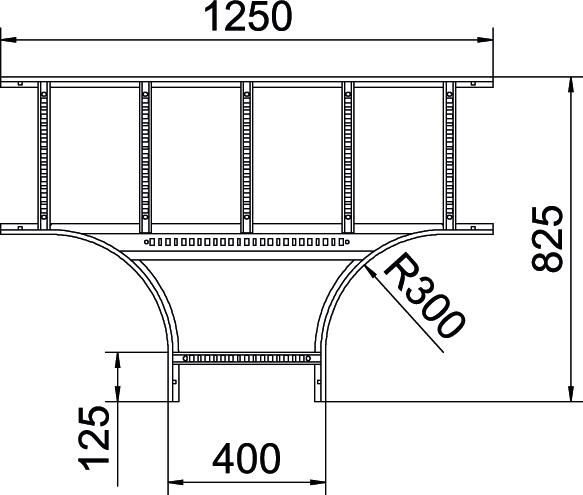

Colour zinc Connector version Without connectors Dimension 60x400 Dimension B 400 mm Dimension R 300 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 400 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 60 FT 6208843 10 piece - Downloads
-
