- Product description
-
Product description

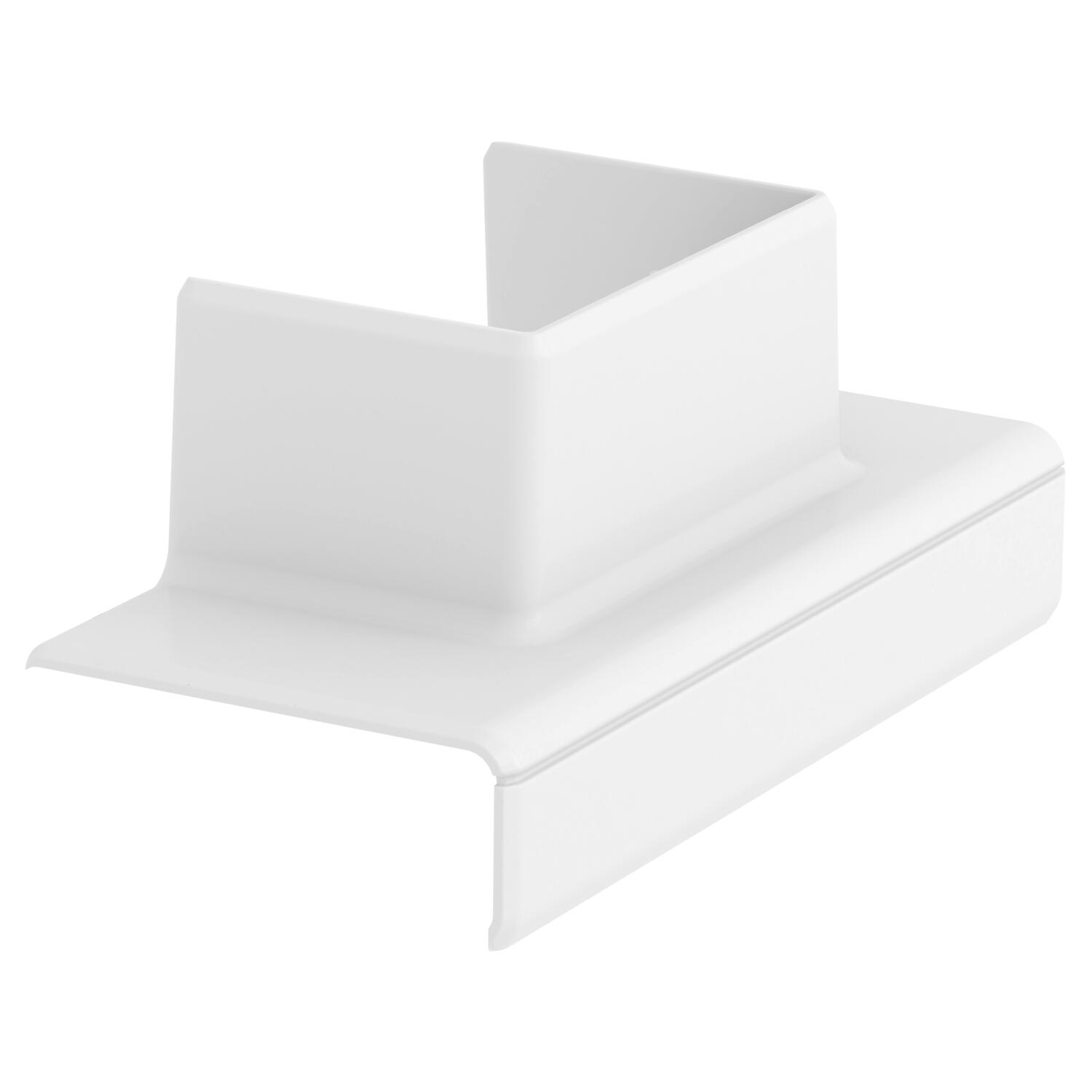

T piece adapter to create a 90° junction from the system size Rapid 45-2 53130 to a cable trunking WDK40060.
- Technical data
-
Technical data

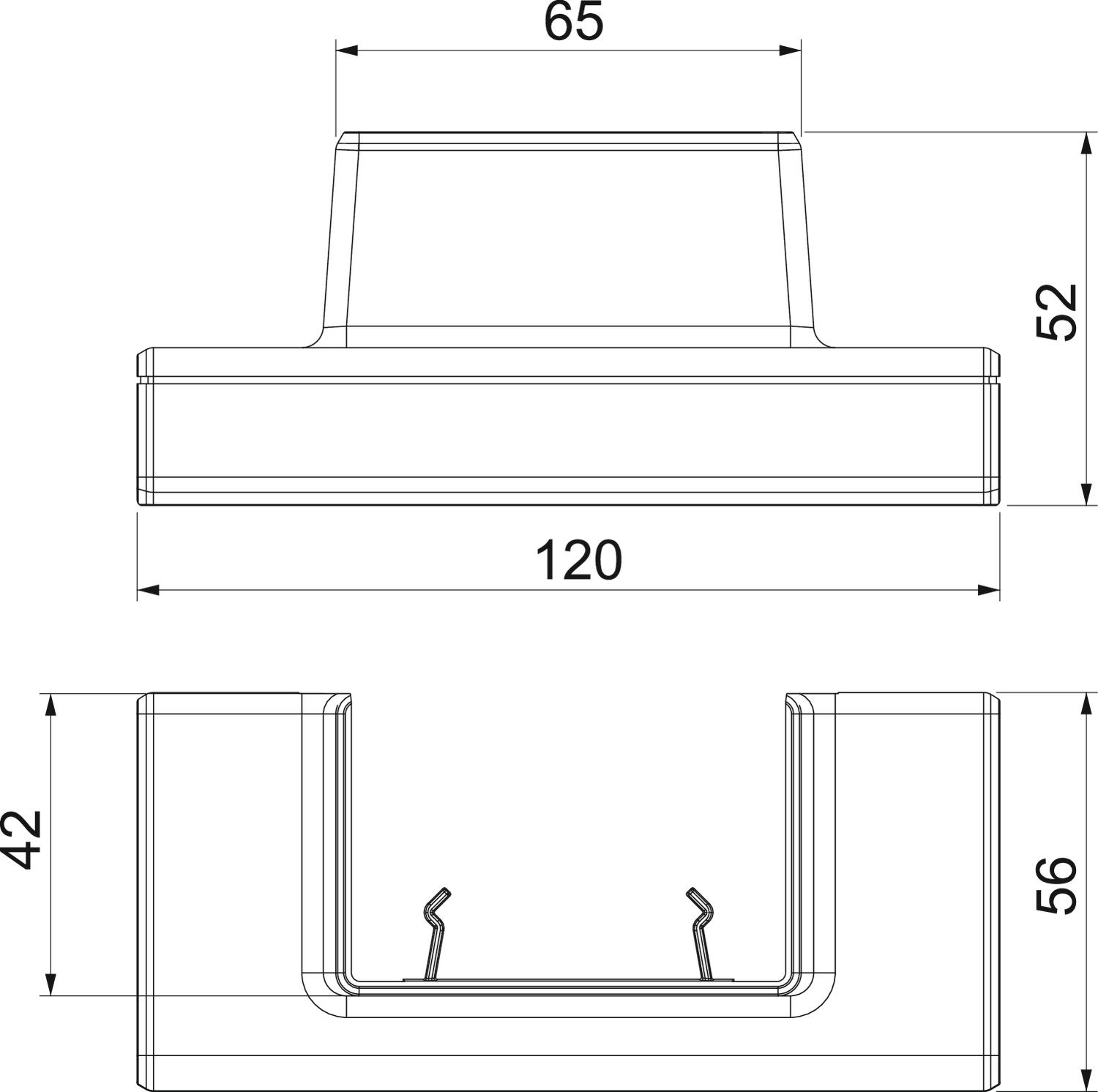

Antibacterial treatment no Cable retaining clip no Colour Pure white; RAL 9010 Cover mounting type Cross-over Dimension 120x52x56 Duct connector no for duct width 130 mm for trunking height 53 mm Halogen-free yes Height 55,5 mm Length 120 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film no Symmetrical no Version for Hood fitting Width 52 mm Width of the branch 60 mm - All types
- Downloads
-
Data sheet GK-TA WDK 2RW / 6113320 , 0.25MB , pdfDeclaration of conformity GK-TA WDK 2RW / 6113320 , 0.13MB , pdfREACH Declaration of conformity GK-TA WDK 2RW / 6113320 , 0.27MB , pdfRoHS Declaration of conformity GK-TA WDK 2RW / 6113320 , 0.28MB , pdfMounting instructions Mounting instructions, T piece adapter GK-TA WDK..., GK-TR... , 0.14MB , pdf
