T piece adapter WDK 40060
Item no. 6113310 | EAN 4012196419845
- Product description
-
Product description

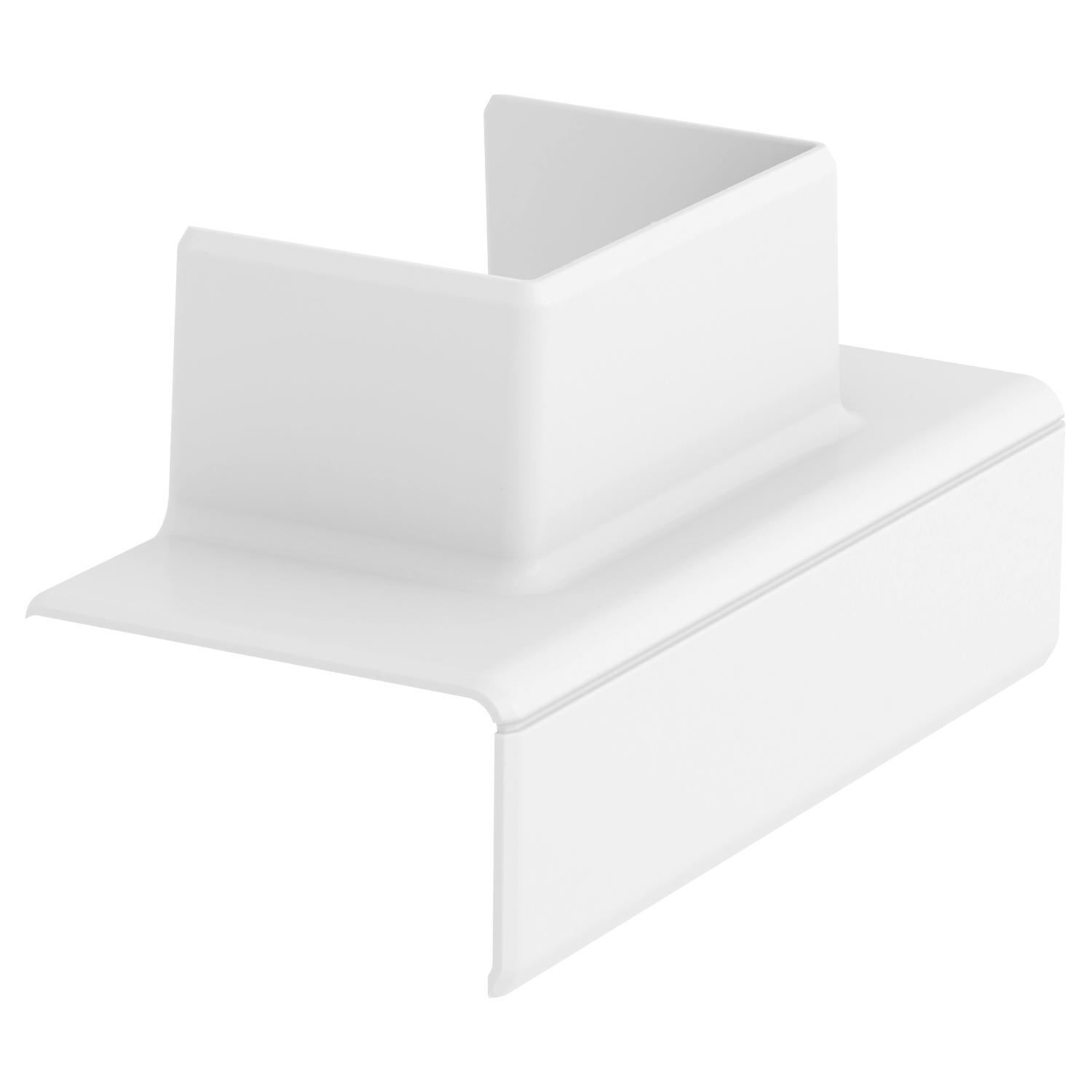

T-piece adapter to create a 90° junction from the system size Rapid 45-2 53100 and 53165 on a cable trunking WDK40060.
-
- Technical data
-
Technical data

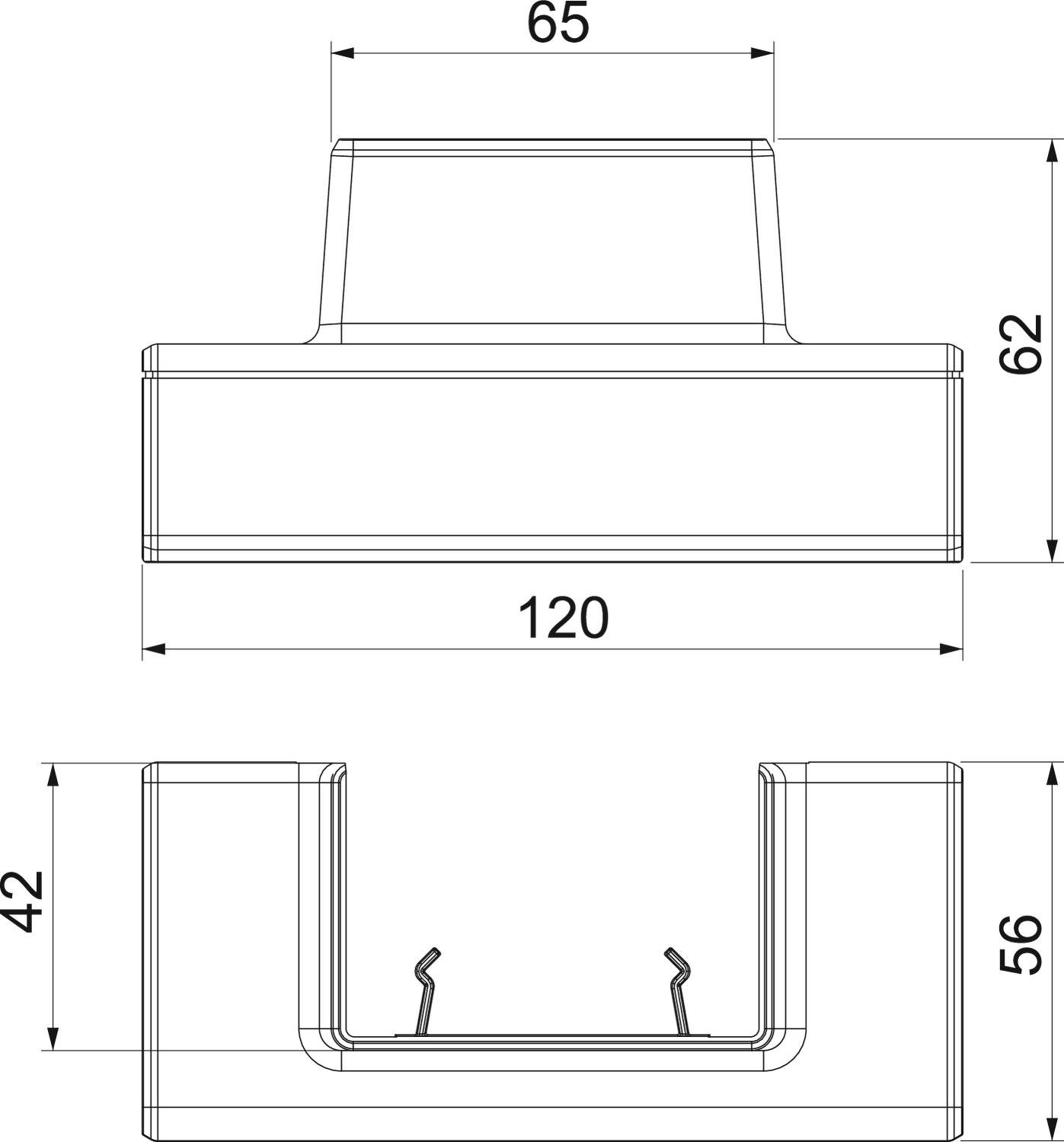

Antibacterial treatment no Cable retaining clip no Colour Pure white; RAL 9010 Cover mounting type Cross-over Dimension 120x62x56 Duct connector no for duct width 100 mm for trunking height 53 mm Halogen-free yes Height 55,5 mm Length 120 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film no Symmetrical no Version for Hood fitting Width 62 mm Width of the branch 60 mm - All types
- Downloads
-
Data sheet GK-TA WDK 1RW / 6113310 , 0.19MB , pdfDeclaration of conformity GK-TA WDK 1RW / 6113310 , 0.13MB , pdfREACH Declaration of conformity GK-TA WDK 1RW / 6113310 , 0.27MB , pdfRoHS Declaration of conformity GK-TA WDK 1RW / 6113310 , 0.28MB , pdfMounting instructions Mounting instructions, T piece adapter GK-TA WDK..., GK-TR... , 0.14MB , pdfNo invitation to tender text is available for this product.
