T piece cover, for trunking type WDK 10020 45 | 34 | 20 | Cream; RAL 9001
morepic-1 morepic-2

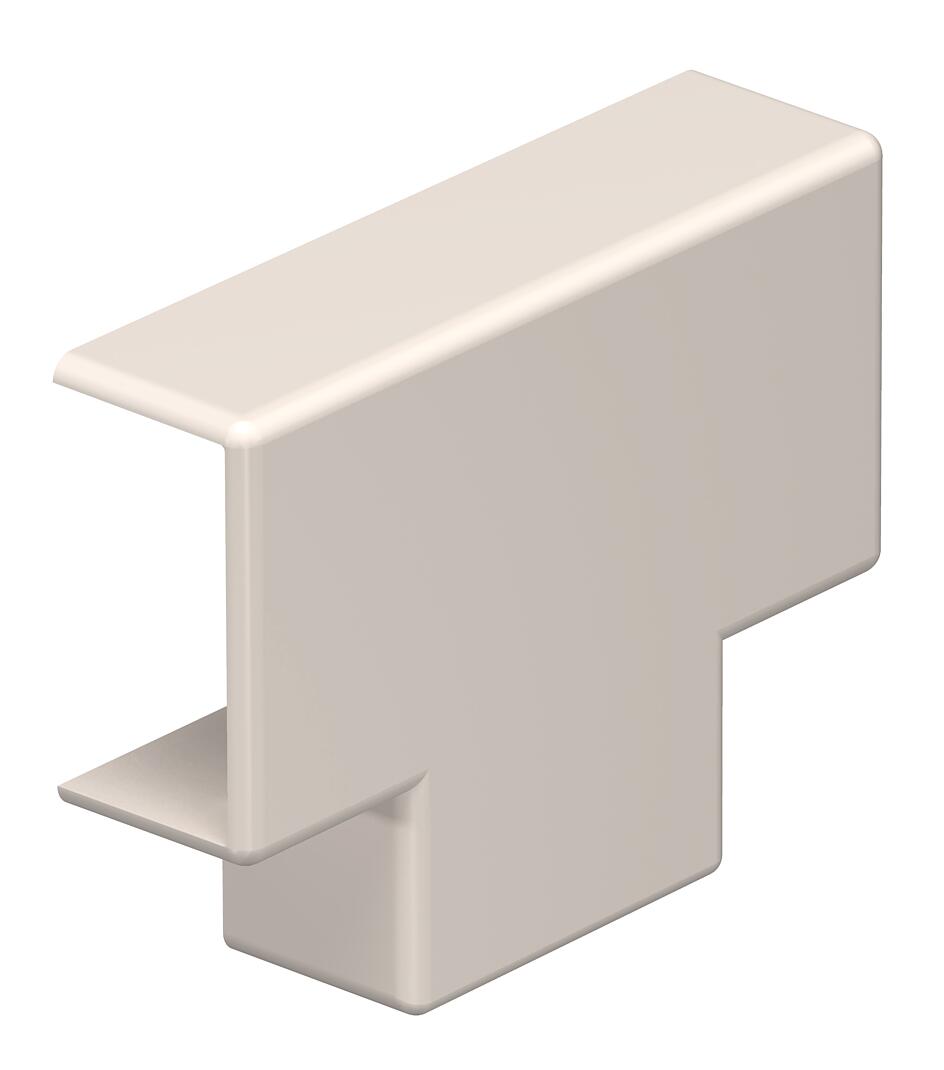

T piece cover, for trunking type WDK 10020

Item no. 6152309 | EAN 4012196098712

45 mm
34 mm
20 mm
Product description

Product description

T piece hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 10x20mm
Fastening type Lockable
for duct dimension 10 x 20
Halogen-free no
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 10 mm
Version for Hood fitting

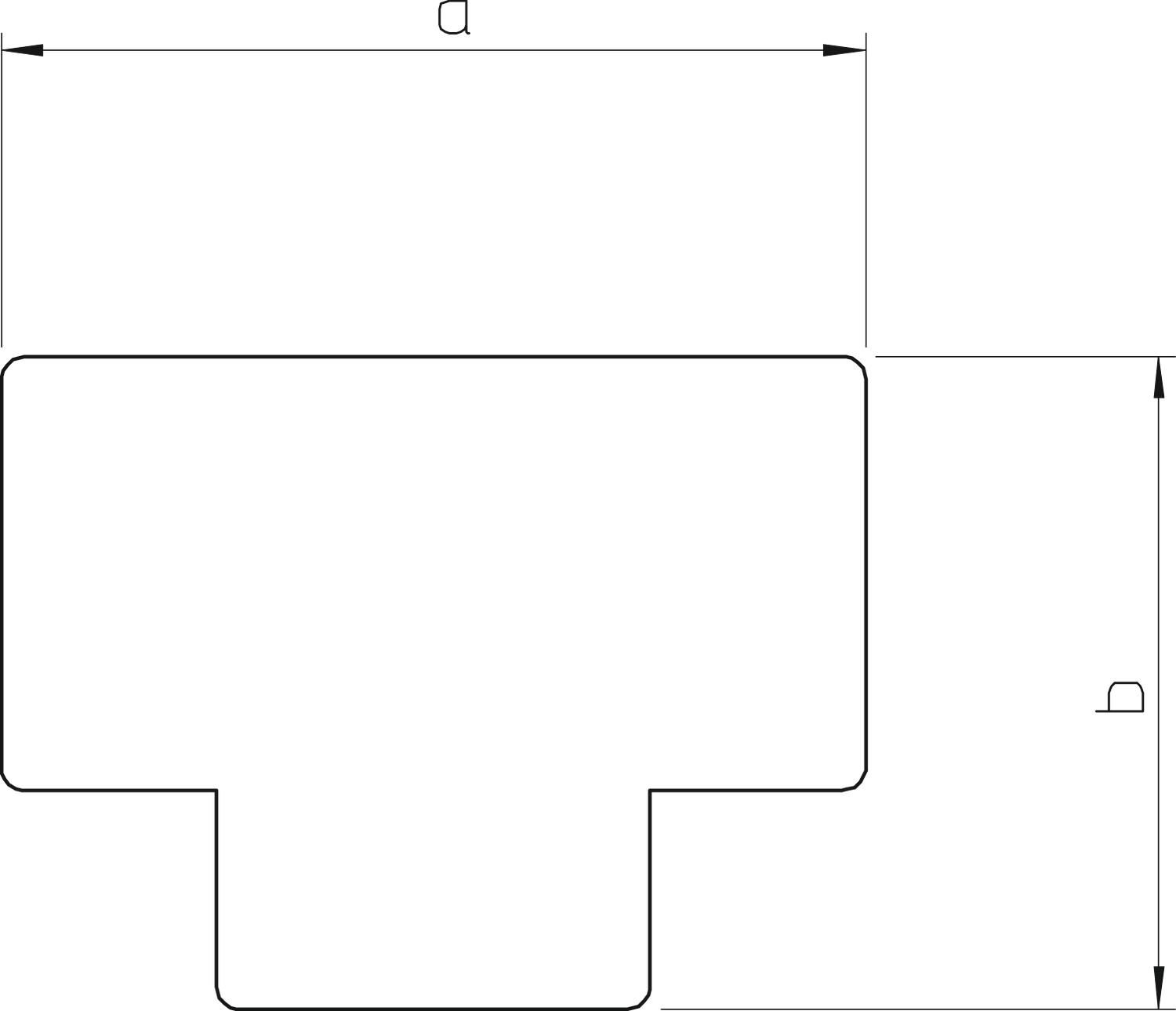

Dimensions

Dimension a 45 mm
Dimension b 34 mm
Dimension H 20 mm
Height 10 mm
Length 45 mm
Width 22 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HT10020CW 45 mm 34 mm 20 mm Cream; RAL 9001 6152309
4 piece
WDK HT10020RW 45 mm 34 mm 20 mm Pure white; RAL 9010 6154115
4 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HT10020CW / 6152309 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
