T piece cover, for trunking type WDK 13025 | | | Oyster white; RAL 1013

morepic-1

morepic-2

T piece cover, for trunking type WDK 13025

Item no. 6192448 | EAN 4012195959137

Item no. / Types

Colour

Product description

Product description

T piece cover for changing the direction of the WDK trunking.

Technical data

Technical data

Antibacterial treatment	no
Colour	Oyster white; RAL 1013
Dimension	15x80x40mm
Fastening type	Lockable
Halogen-free	no
Material	Polycarbonate/Acrylnitrile-butadiene-styrene

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Hood fitting

Dimensions

Height	13 mm
Length	80 mm

Width	25 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
WDK HTCW13025PW	Oyster white; RAL 1013	6192448	piece	10 piece
WDK HTCW13025RW	Pure white; RAL 9010	6192450	piece	10 piece

Downloads

Data sheet WDK HTCW13025PW / 6192448 , 0.17MB , pdf

Catalogue Cable routing systems , 17.62MB , pdf

Declaration of conformity WDK HTCW13025PW / 6192448 , 0.13MB , pdf

Label approval VDE-Zeichengenehmigung WDK , 0.64MB , pdf

Download

Mounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdf

Download

Safety data sheet PVC_Material data , 0.02MB , pdf

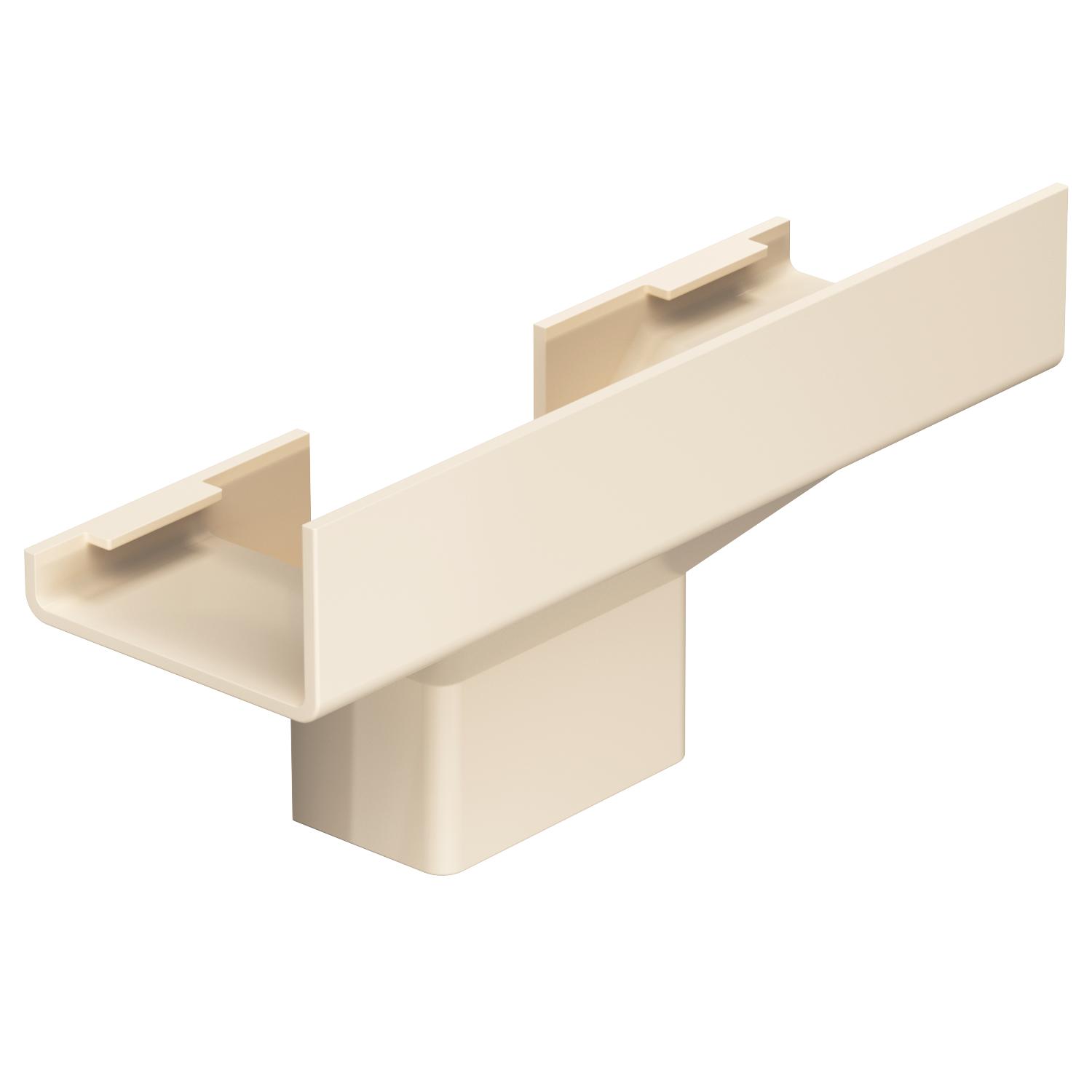

Product graphic WDK HTCW13025PW / 6192448, 35.45 kB, jpg

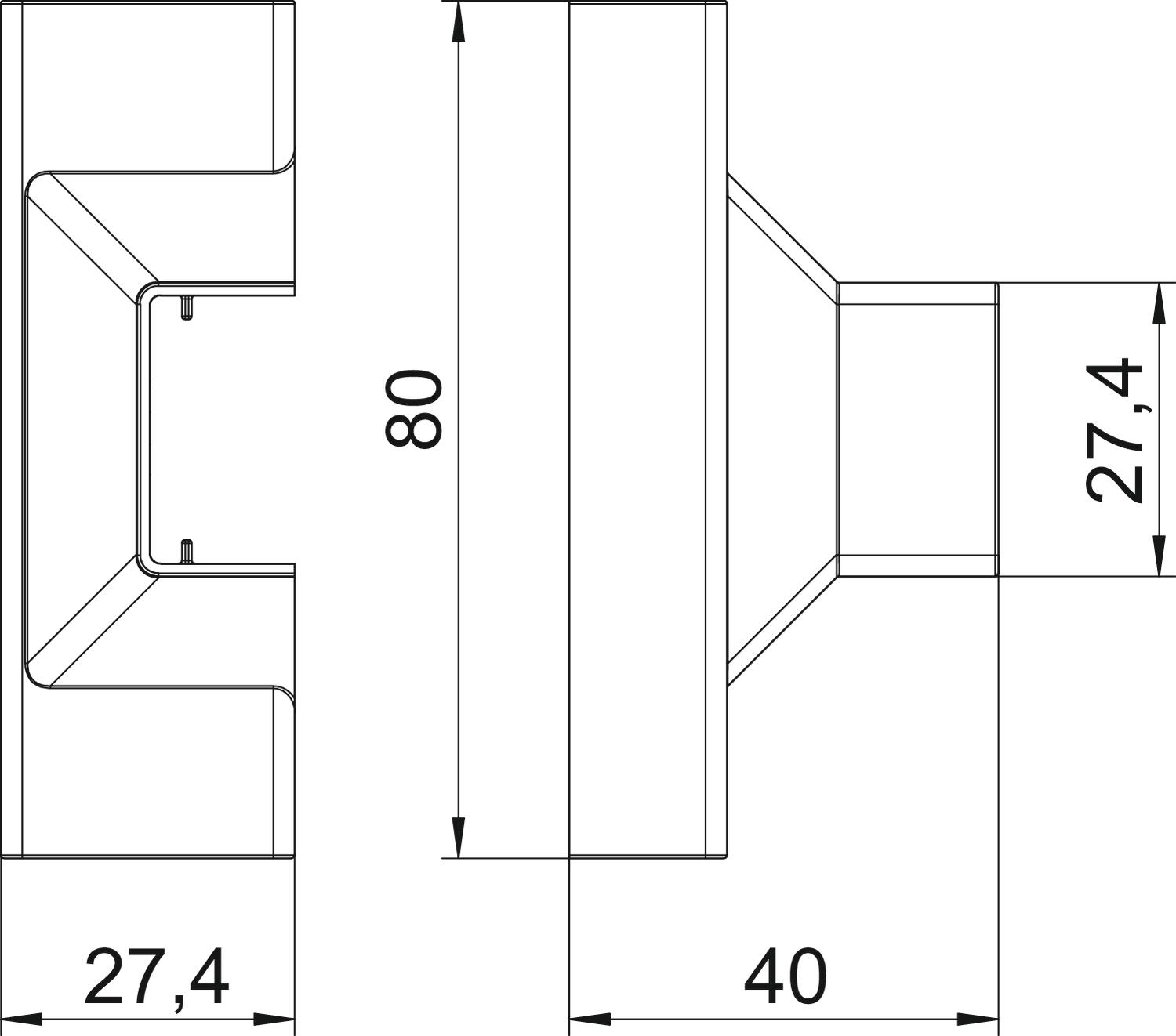

Scale drawing WDK HTCW13025PW / 6192448, 66.63 kB, jpg

No invitation to tender text is available for this product.
