- Product description
-
Product description

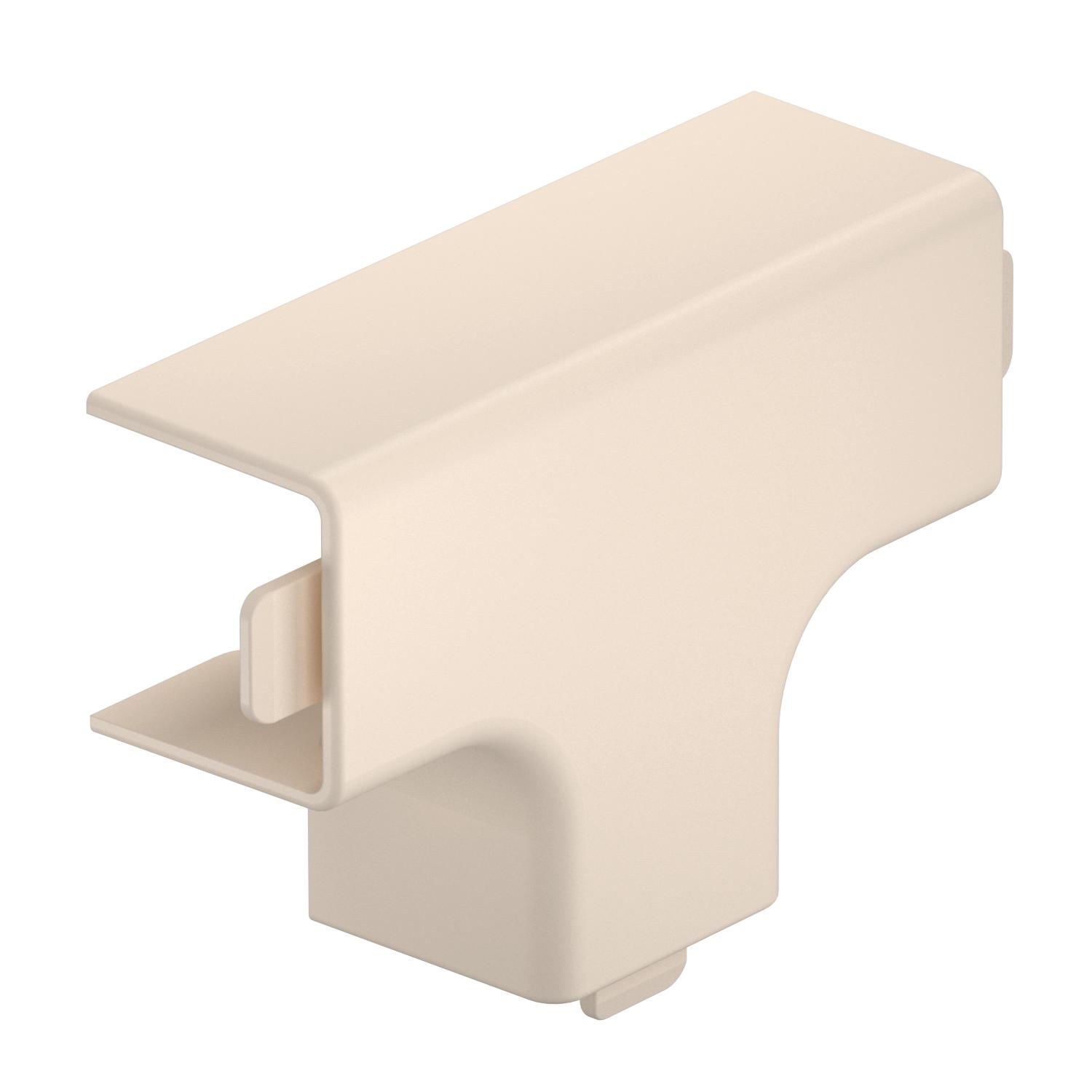

T piece cover for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Cream; RAL 9001 Dimension 20x20mm Fastening type Lockable for duct dimension 20 x 20 Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 20 mm Version for Hood fitting Dimensions
Dimension a 57 mm Dimension b 39 mm Dimension H 20 mm Height 20 mm Length 57 mm Width 20 mm - All types
- Downloads
-
Data sheet WDK HT20020CW / 6161901 , 0.26MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HT20020CW / 6161901 , 0.13MB , pdfUK Declaration of Conformity WDK HT20020CW / 6161901 , 0.14MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdf
