T piece cover, for trunking type WDK 20020 57 | 39 | 20 | Light grey; RAL 7035
morepic-1 morepic-2

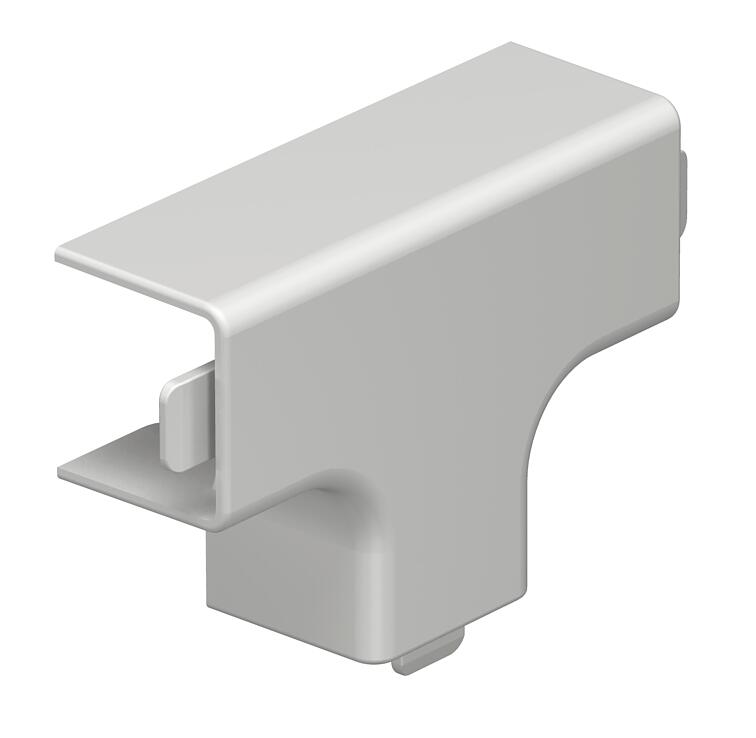

T piece cover, for trunking type WDK 20020

Item no. 6182801 | EAN 4012196672851

57 mm
39 mm
20 mm
Product description

Product description

T piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 20x20mm
Dimension a 57 mm
Dimension b 39 mm
Dimension H 20 mm
Fastening type Lockable
for duct dimension 20 x 20
Halogen-free no
Height 20 mm
Length 57 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 20 mm
Version for Hood fitting
Width 20 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HT20020GR 57 mm 39 mm 20 mm Stone grey; RAL 7030 6158455
4 piece
WDK HT20020CW 57 mm 39 mm 20 mm Cream; RAL 9001 6161901
4 piece
WDK HT20020LGR 57 mm 39 mm 20 mm Light grey; RAL 7035 6182801
4 piece
WDK HT20020RW 57 mm 39 mm 20 mm Pure white; RAL 9010 6192475
4 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HT20020LGR / 6182801 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HT20020LGR / 6182801 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HT20020LGR / 6182801 , 0.28MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
