T piece cover, for trunking type WDK 20050 93 | 73 | 50 | Pure white; RAL 9010
morepic-1 morepic-2

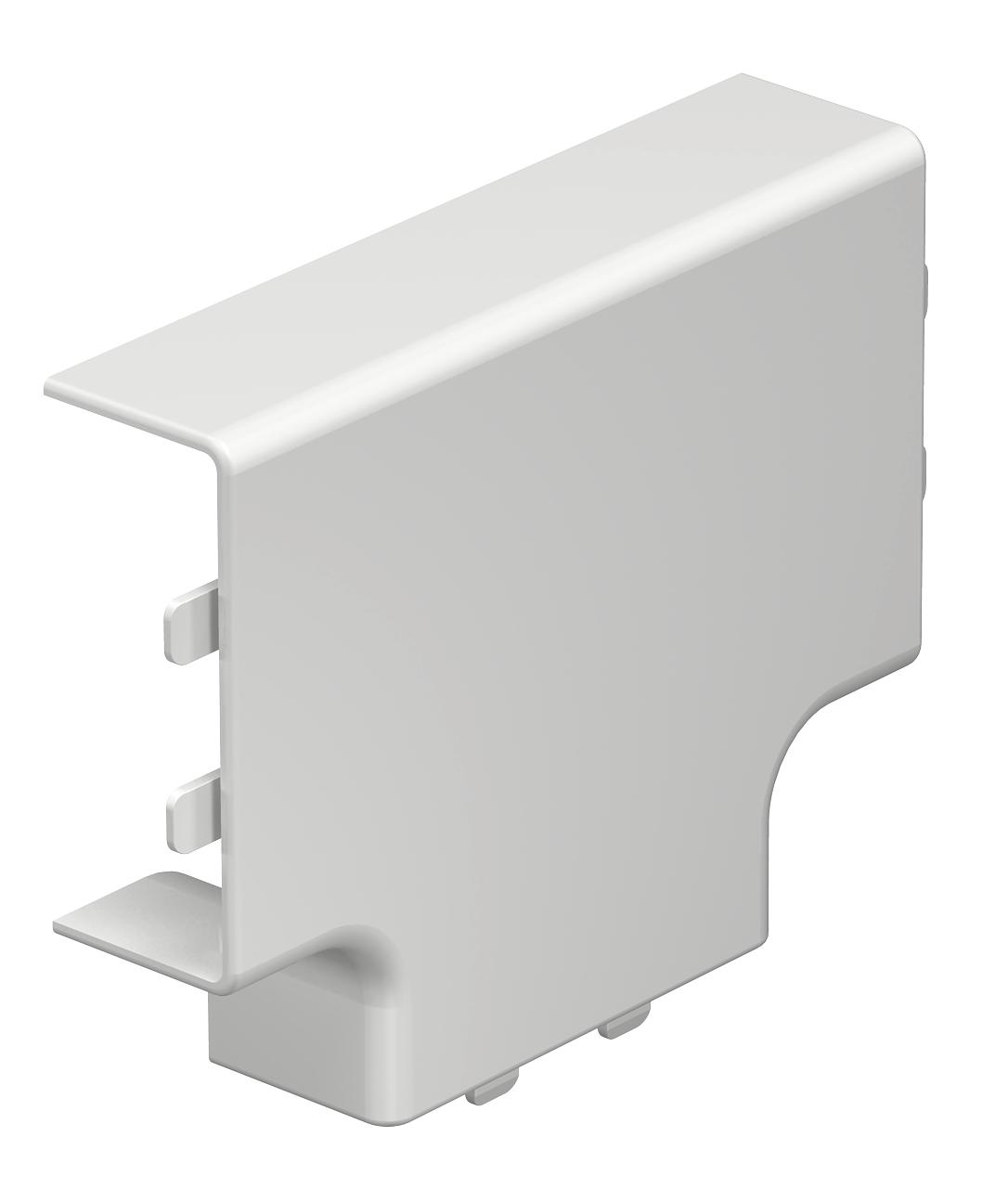

T piece cover, for trunking type WDK 20050

Item no. 6154166 | EAN 4012196493272

93 mm
73 mm
50 mm
Product description
Product description
T piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 20x50mm
Dimension a 93 mm
Dimension b 73 mm
Dimension H 50 mm
Fastening type Lockable
for duct dimension 20 x 50
Halogen-free no
Height 20 mm
Length 93 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 20 mm
Version for Hood fitting
Width 50 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HT20050CW 93 mm 73 mm 50 mm Cream; RAL 9001 6152384
4 piece
WDK HT20050RW 93 mm 73 mm 50 mm Pure white; RAL 9010 6154166
4 piece
Downloads

Download

Download

EU declaration of conformity WDK HT20050RW / 6154166 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HT20050RW / 6154166 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HT20050RW / 6154166 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HT20050RW / 6154166 , 0.28MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
