T piece cover, for trunking type WDK 25025 68 | 48 | 25 | Pure white; RAL 9010
morepic-1 morepic-2

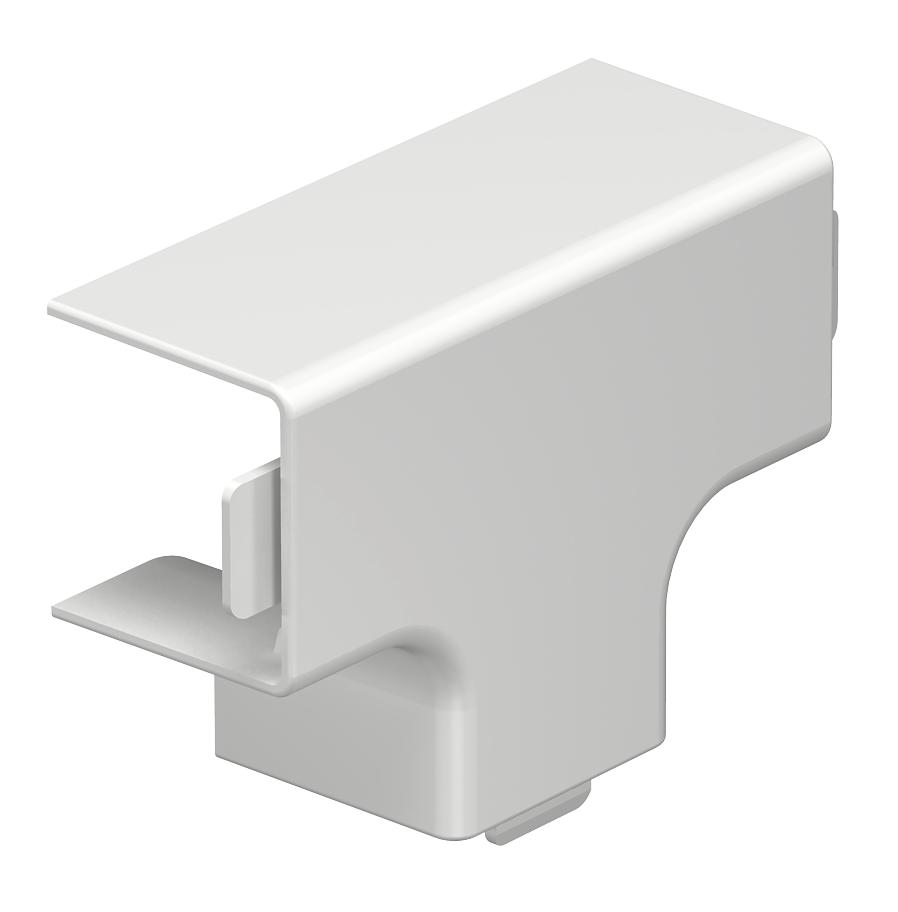

T piece cover, for trunking type WDK 25025

Item no. 6192483 | EAN 4012196504978

68 mm
48 mm
25 mm
Product description
Product description
T piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 25x25mm
Dimension a 68 mm
Dimension b 48 mm
Dimension H 25 mm
Fastening type Lockable
for duct dimension 25 x 25
Halogen-free no
Height 25 mm
Length 68 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 25 mm
Version for Hood fitting
Width 25 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HT25025GR 68 mm 48 mm 25 mm Stone grey; RAL 7030 6158498
4 piece
WDK HT25025CW 68 mm 48 mm 25 mm Cream; RAL 9001 6161944
4 piece
WDK HT25025LGR 68 mm 48 mm 25 mm Light grey; RAL 7035 6182852
4 piece
WDK HT25025RW 68 mm 48 mm 25 mm Pure white; RAL 9010 6192483
4 piece
Downloads

Download

Download

EU declaration of conformity WDK HT25025RW / 6192483 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HT25025RW / 6192483 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HT25025RW / 6192483 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HT25025RW / 6192483 , 0.28MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
