T piece cover, for trunking type WDK 25040 83 | 63 | 40 | Pure white; RAL 9010
morepic-1 morepic-2

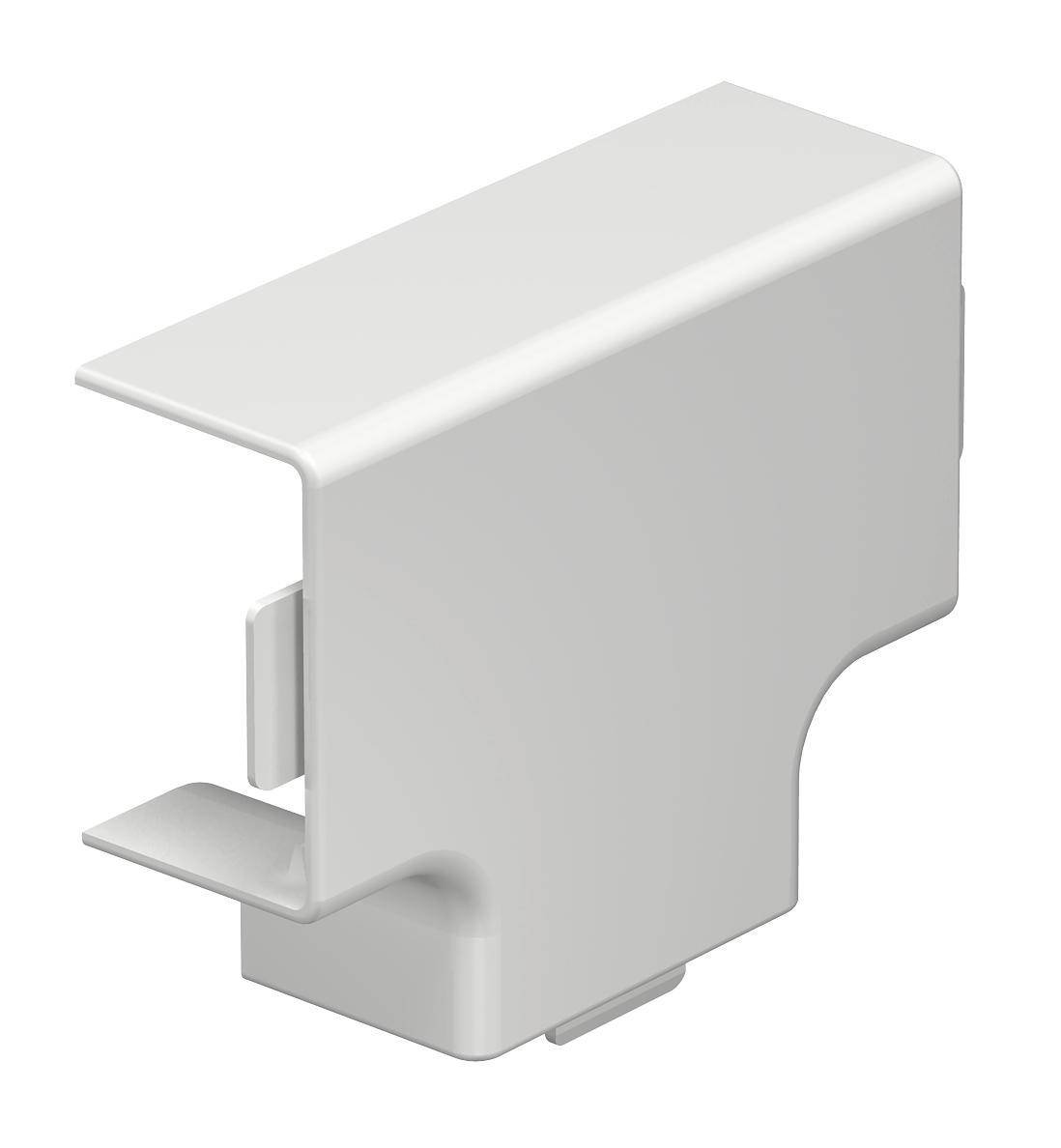

T piece cover, for trunking type WDK 25040

Item no. 6192491 | EAN 4012196796335

83 mm
63 mm
40 mm
Product description
Product description
T piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 25x40mm
Dimension a 83 mm
Dimension b 63 mm
Dimension H 40 mm
Fastening type Lockable
for duct dimension 25 x 40
Halogen-free no
Height 25 mm
Length 83 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 25 mm
Version for Hood fitting
Width 40 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HT25040GR 83 mm 63 mm 40 mm Stone grey; RAL 7030 6158501
4 piece
WDK HT25040CW 83 mm 63 mm 40 mm Cream; RAL 9001 6161952
4 piece
WDK HT25040RW 83 mm 63 mm 40 mm Pure white; RAL 9010 6192491
4 piece
Downloads

Download

Download

EU declaration of conformity WDK HT25040RW / 6192491 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HT25040RW / 6192491 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HT25040RW / 6192491 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HT25040RW / 6192491 , 0.28MB , pdf
