T piece for cable duct type LKM 60100 300 | | | | Pure white; RAL 9010
morepic-1 morepic-2 video-1 video-2

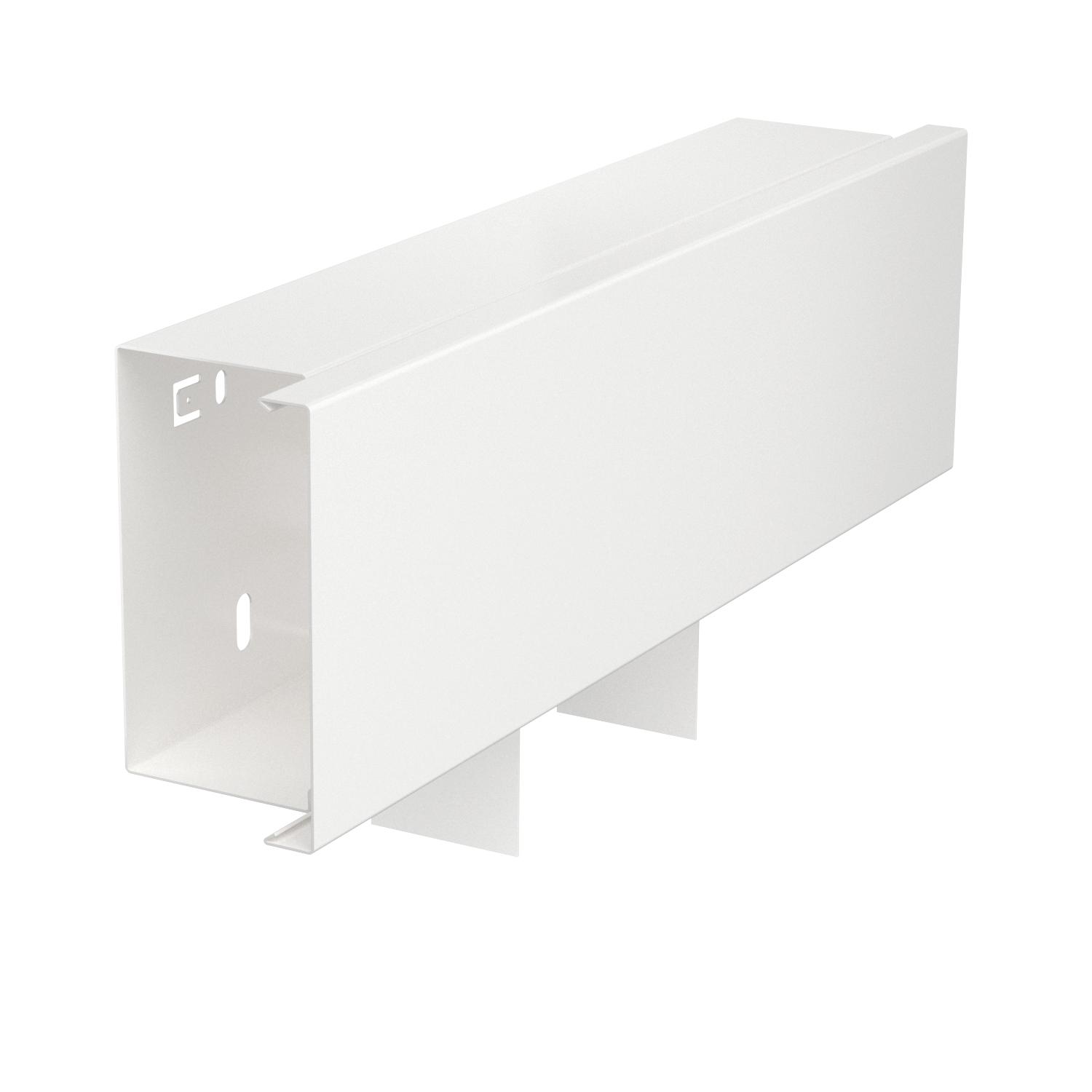

T piece for cable duct type LKM 60100

Item no. 6249701 | EAN 4012196318254

300 mm
Product description

Product description

T piece including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 60x100mm
Dimension a 300 mm
Duct height, min. 64 mm
Fastening type Base perforation
for duct dimension 60 x 100
Halogen-free yes
Height 64 mm
Length 300 mm
Maintain electrical functions yes
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Protective film no
Surface Strip galvanized / plastic coated
Trunking depth 64 mm
Version for Base and cover
Width 100 mm
All types

All types

Types Dimension a Colour Item no. Quantity SSU
LKM T60100FS 300 mm - 6248209
1 piece
LKM T60100RW 300 mm Pure white; RAL 9010 6249701
1 piece
