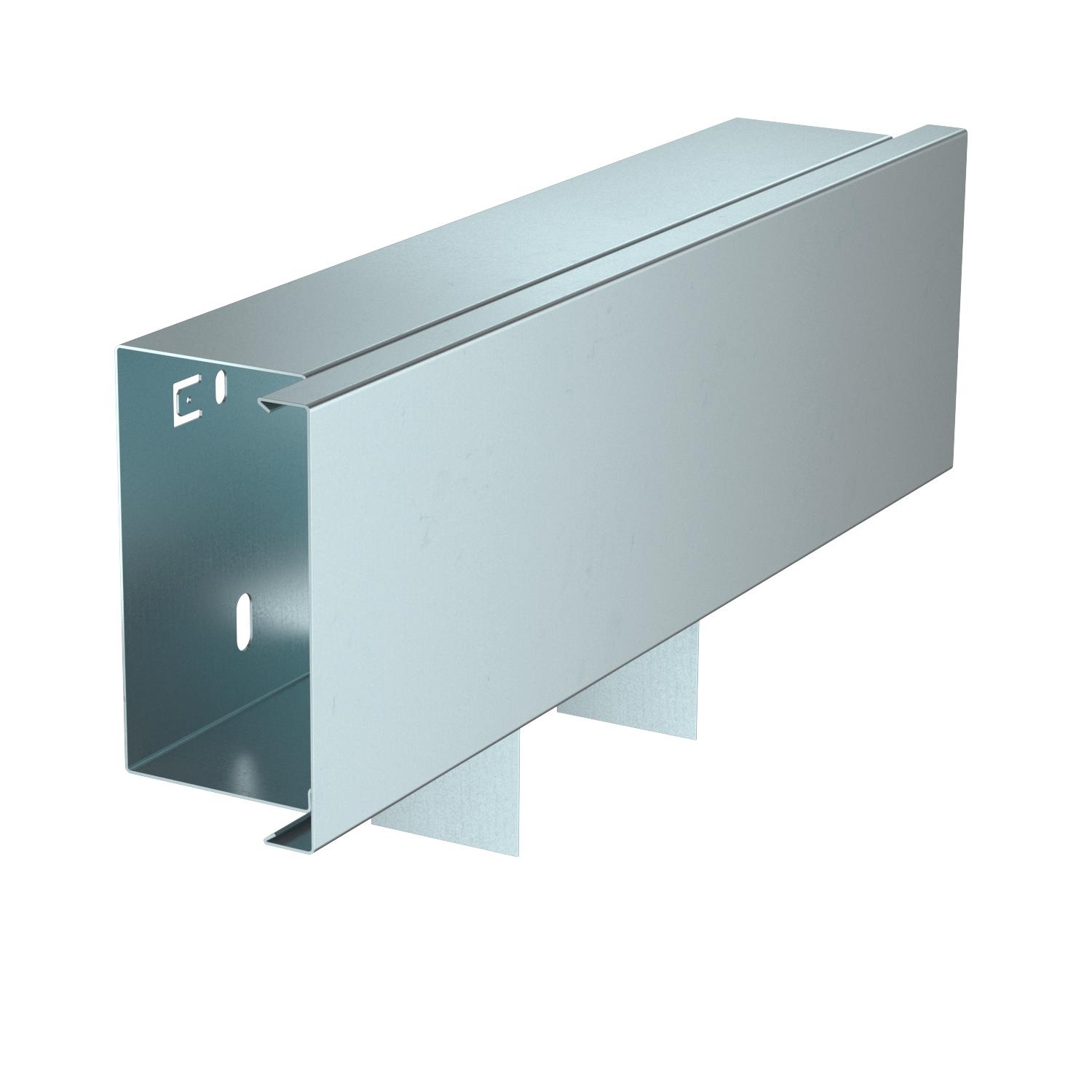

T piece for cable duct type LKM 60100
Item no. 6248209 | EAN 4012196317837
- Product description
-
Product descriptionT piece including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Colour zinc Dimension 60x100mm Dimension a 300 mm Duct height, min. 64 mm Fastening type Base perforation for duct dimension 60 x 100 Halogen-free yes Height 64 mm Length 300 mm Maintain electrical functions yes Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized Trunking depth 64 mm Version for Base and cover Width 100 mm - All types
