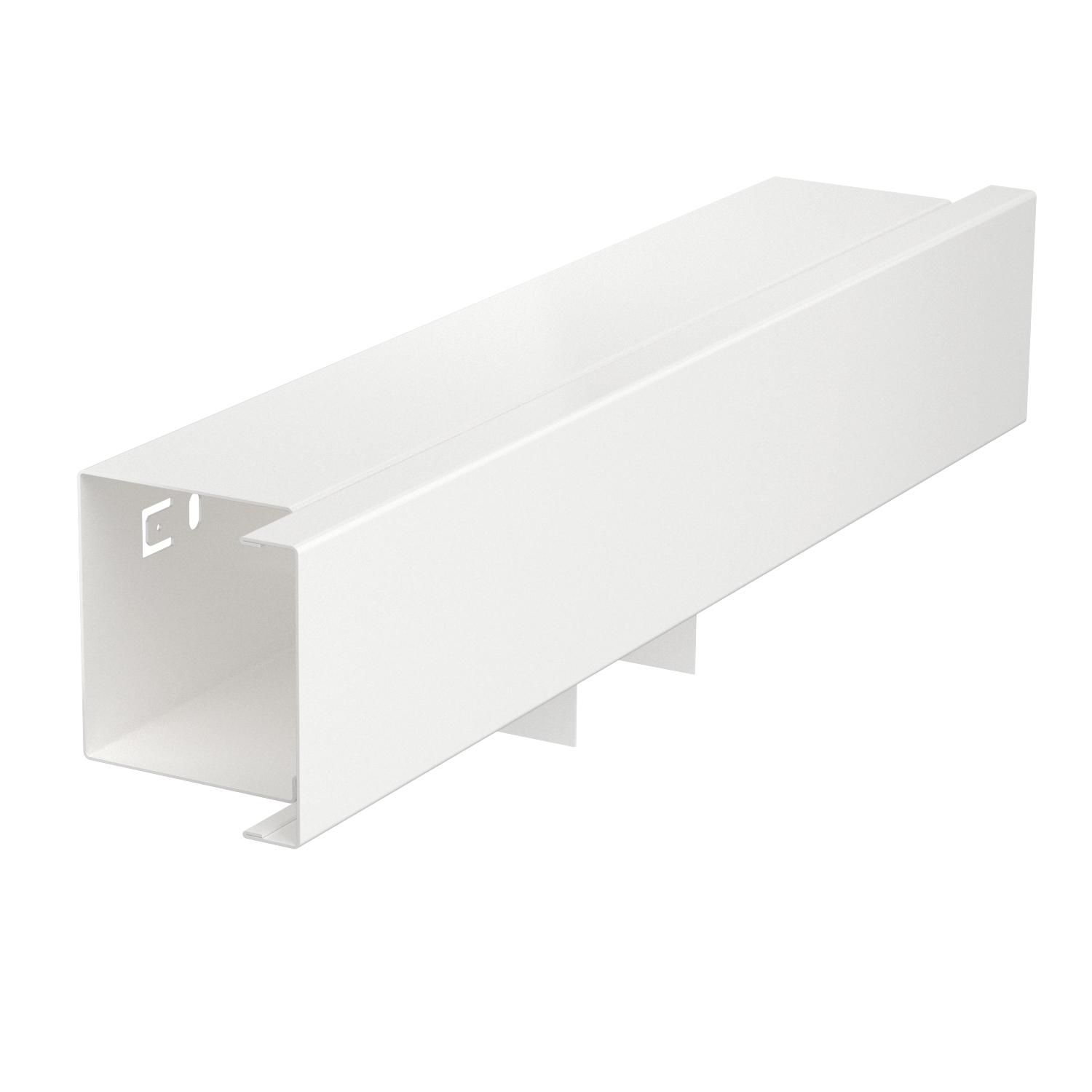

T piece, for cable trunking type LKM 60060
Item no. 6249671 | EAN 4012196503537
- Product description
-
Product description
T piece including cover for changing the direction of the LKM trunking.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Dimension 60x60mm Dimension a 300 mm Duct height, min. 64 mm Fastening type Base perforation for duct dimension 60 x 60 Halogen-free yes Height 64 mm Length 300 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Trunking depth 64 mm Version for Base and cover Width 60 mm - All types
- Downloads
-
Data sheet LKM T60060RW / 6249671 , 0.20MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity LKM T60060RW / 6249671 , 0.13MB , pdfUK Declaration of Conformity LKM T60060RW / 6249671 , 0.14MB , pdfREACH Declaration of conformity LKM T60060RW / 6249671 , 0.27MB , pdfRoHS Declaration of conformity LKM T60060RW / 6249671 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
