T piece, for trunking type WDK 100230 600 | | | Light grey; RAL 7035
morepic-1 morepic-2

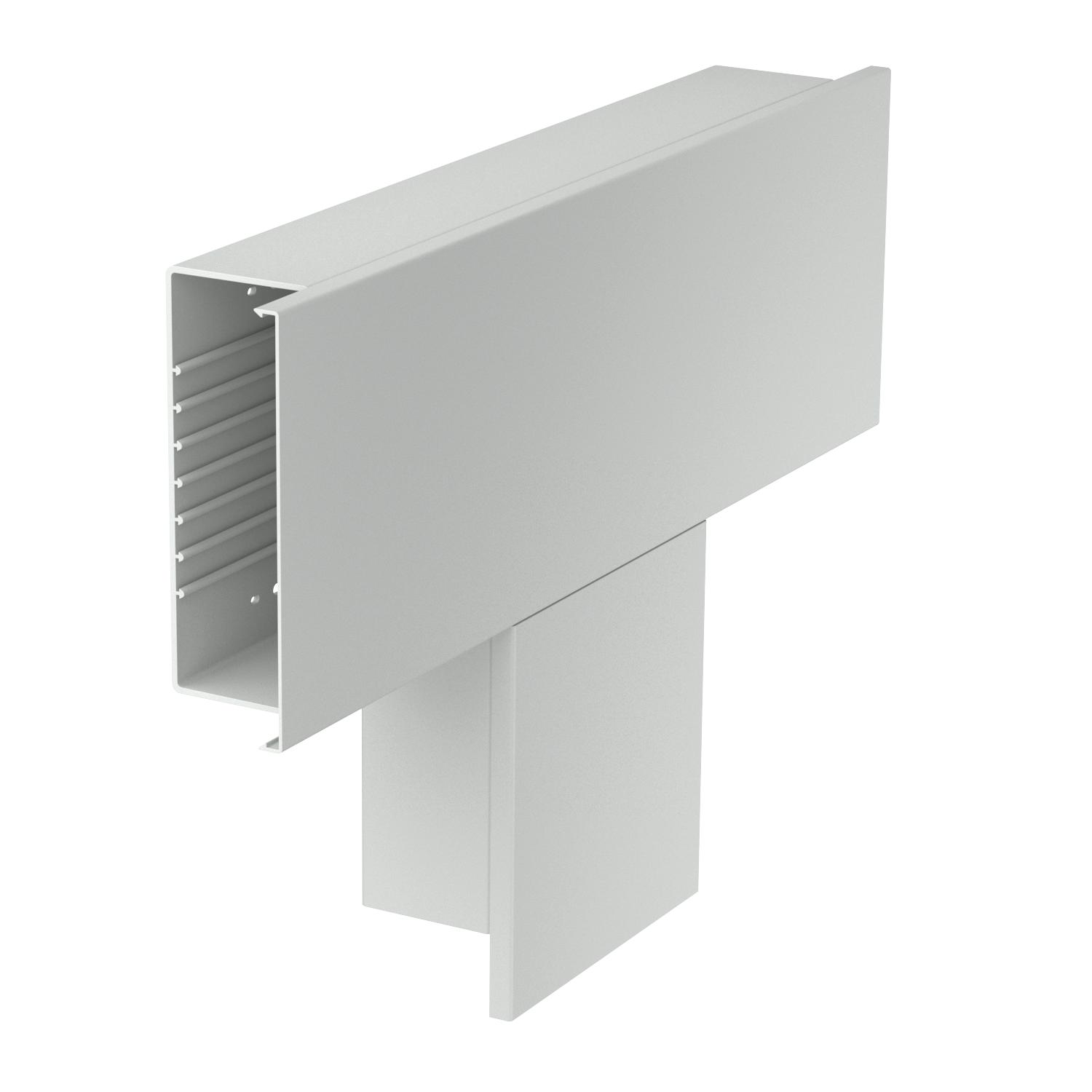

T piece, for trunking type WDK 100230

Item no. 6163092 | EAN 4012197251673

600 mm
Product description
Product description
T piece to change the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035

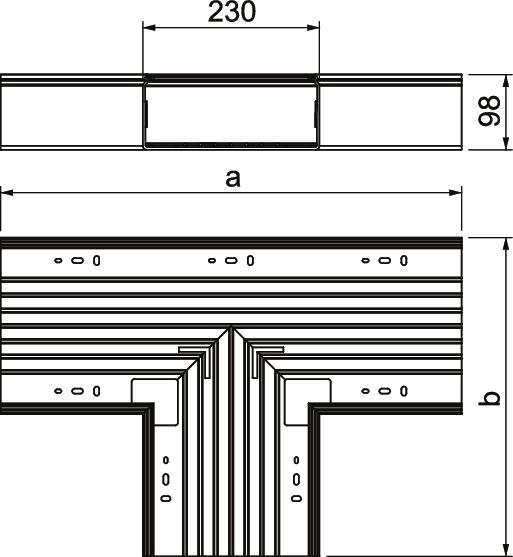

Dimension 600x230x100
Dimension a 600 mm
Fastening type Base perforation
Halogen-free no
Height 100 mm
Length 600 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Base
Width 230 mm
All types

All types

Types Dimension a Colour Item no. Quantity SSU
WDK T100230LGR 600 mm Light grey; RAL 7035 6163092
1 piece
WDK T100230RW 600 mm Pure white; RAL 9010 6183992
1 piece
WDK T100230CW 600 mm Cream; RAL 9001 6193402
1 piece
WDK T100230GR 600 mm Stone grey; RAL 7030 6193412
1 piece
