T piece, for trunking type WDK 80210 400 | | | Cream; RAL 9001
morepic-1 morepic-2

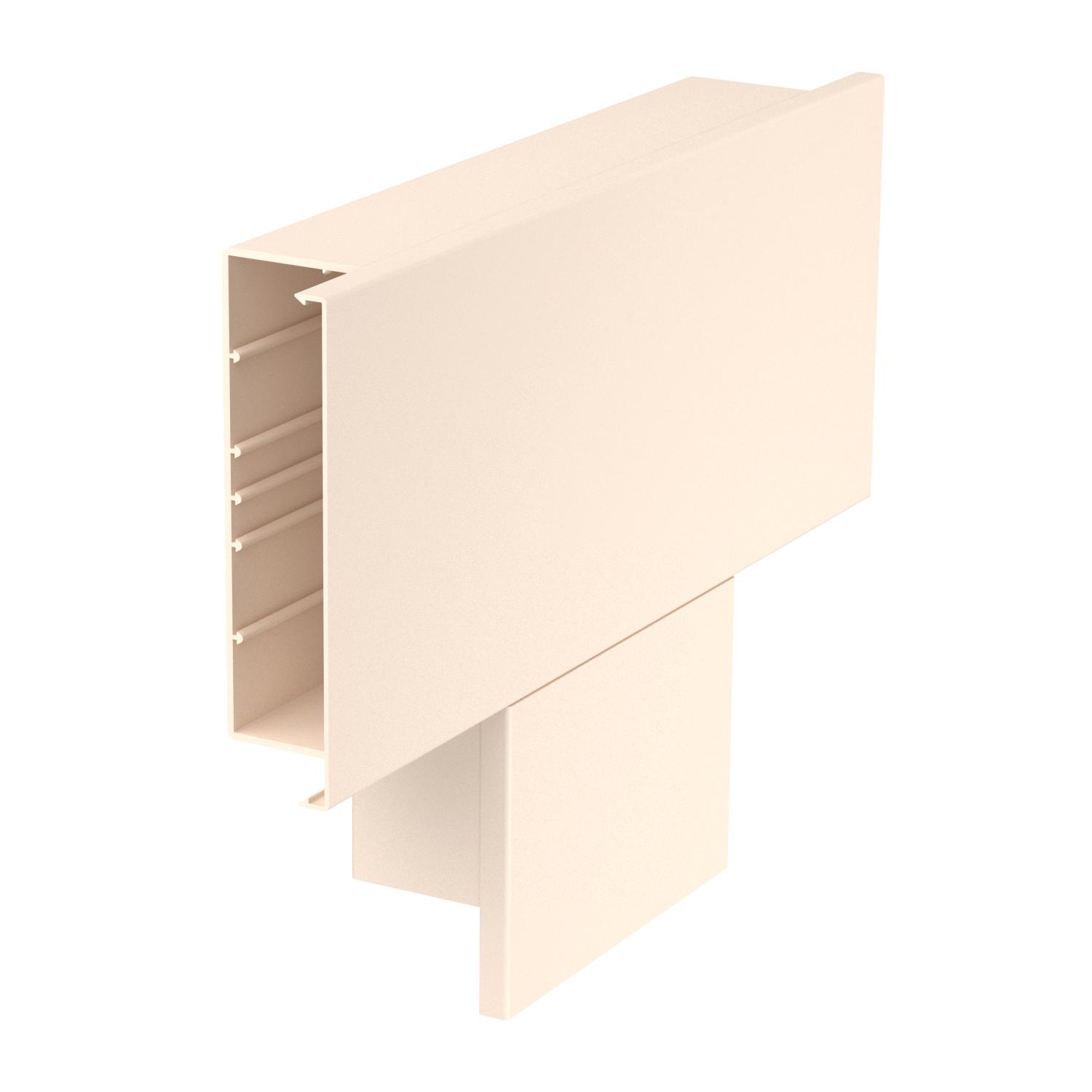

T piece, for trunking type WDK 80210

Item no. 6193406 | EAN 4012197251444

400 mm
Product description

Product description

T piece to change the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001

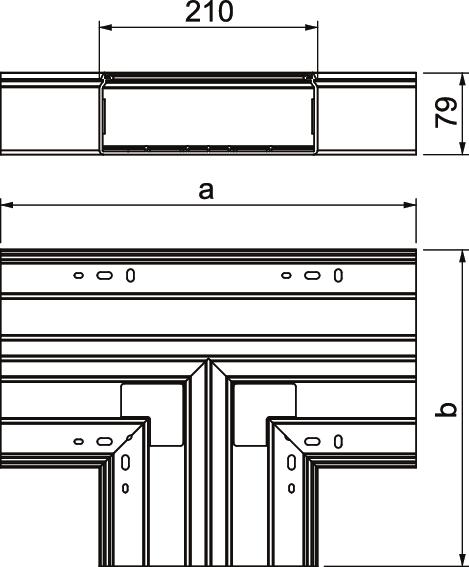

Dimension 400x210x80
Dimension a 400 mm
Fastening type Base perforation
Halogen-free no
Height 80 mm
Length 400 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Base
Width 210 mm
All types

All types

Types Dimension a Colour Item no. Quantity SSU
WDK T80210LGR 400 mm Light grey; RAL 7035 6163096
2 piece
WDK T80210RW 400 mm Pure white; RAL 9010 6183996
2 piece
WDK T80210CW 400 mm Cream; RAL 9001 6193406
2 piece
WDK T80210GR 400 mm Stone grey; RAL 7030 6193415
2 piece
