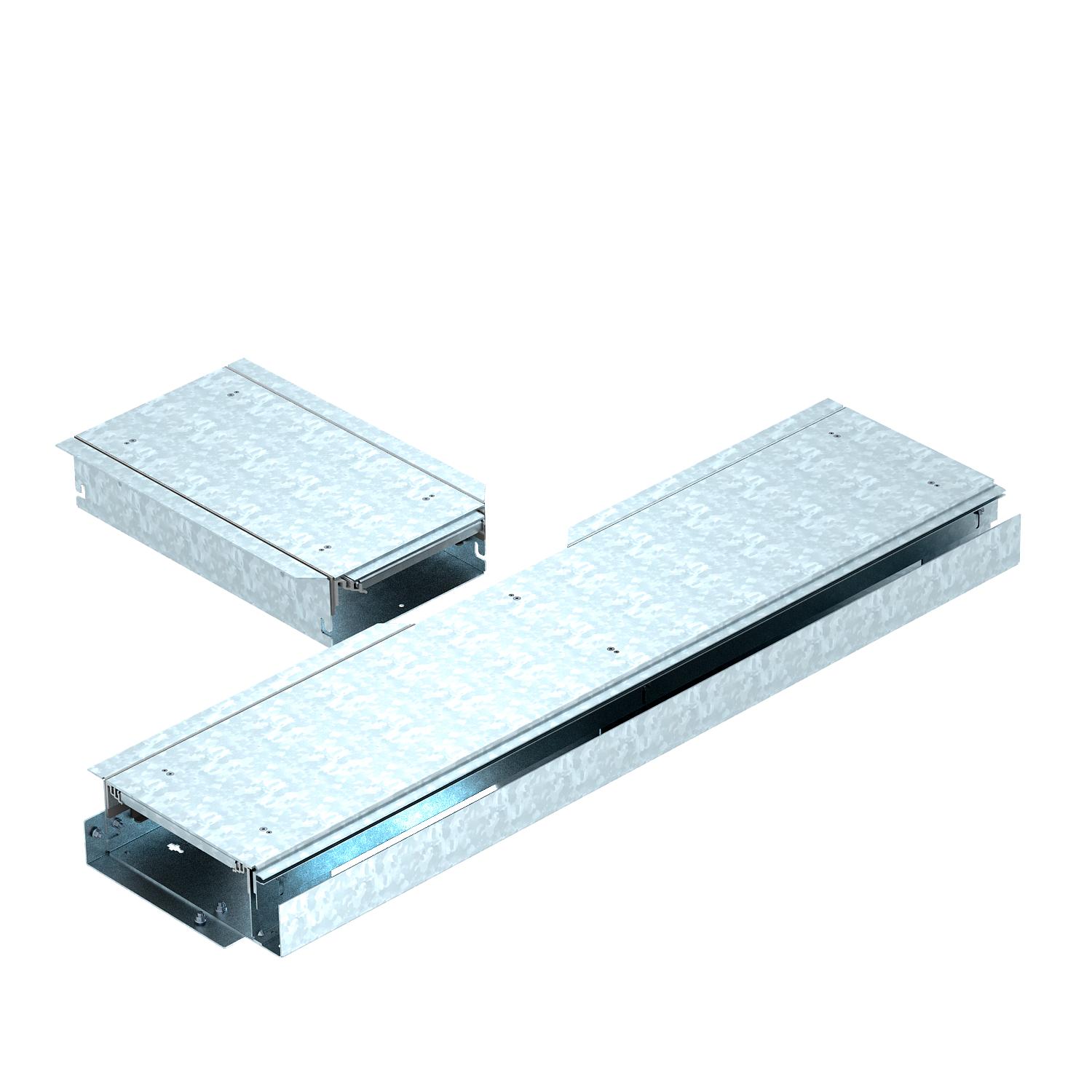

T piece, without height adjustment units

Item no. 7403836 | EAN 4012195845997

7403836 / OKB TS 25085 ON
250 mm
Product description

Product description

Ready-to-mount connection of a trunking unit with a brush bar and a trunking unit for cable laying, consisting of trunking bases, two lids, height-adjustable side profiles and brush bar arranged on the wall side for cable alignment. The scope of delivery contains two lid butt seals and two connectors.
For height adjustment six levelling units are required.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cover fastening, locking no
Decouplable yes
Dimension h 85 mm
Floor care Dry
Floor plate yes
Function Branch
Height 93 mm
Installation opening for on-floor tank no
Length 1000 mm
Material Steel
Minimum screed height 93
Mounting opening cover no
Removable cover yes
Seal installation option no
Separating retainer fastening Plug
Suitable for expansion joint no
Suitable for flushfloor, open underfloor trunking yes
Suitable for screed-covered underfloor ducts no
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Width 250 mm
With connection opening no
With equipotential bonding no
With overhang yes
With separating retainer no
All types

All types

Types Width Item no. Quantity SSU
OKB TS 25085 ON 250 mm 7403836
1 piece
