Tapered pipe air-termination rod 1500 | 10/16

Tapered pipe air-termination rod

Item no. 5401980 | EAN 4012195105619

Item no. / Types

Length

Nominal size Ø	10/16 mm

Product description

Product description

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• From a free length of > 2.5 m, an additional fastening, e.g. insulated
spacer is recommended

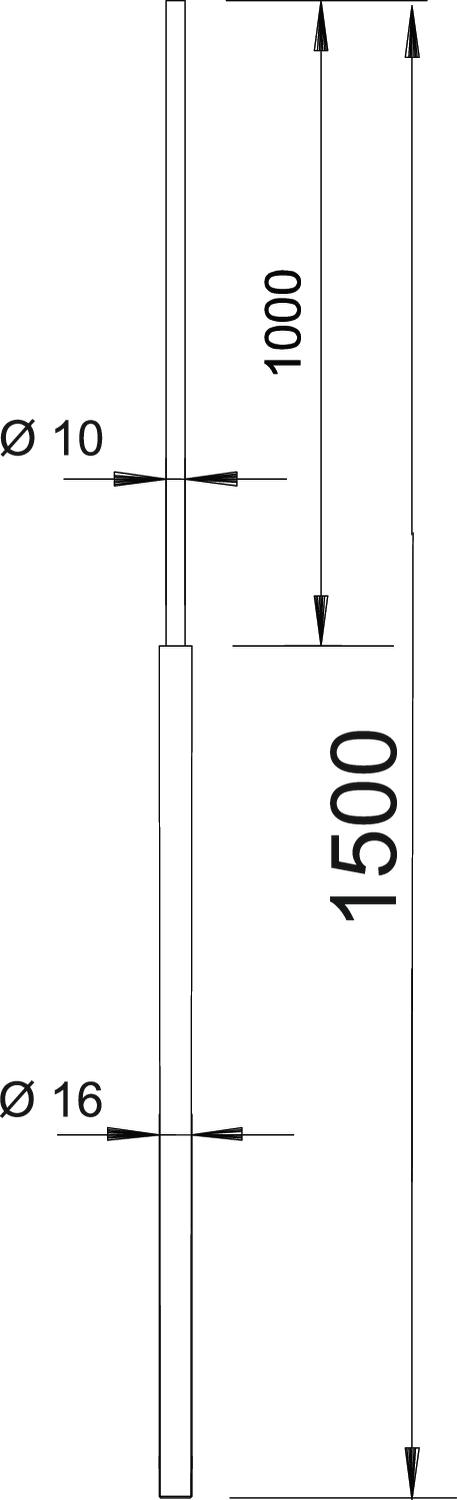

• Last metre is tapered from Ø 16 mm to Ø 10 mm, material: AlMgSi
• Matches stand system FangFix

Technical data

Technical data

Connection	Round conductor
Diameter	16 mm
Dimension	1500mm
High voltage-resistant, insulated version	no

Length	1500 mm
Material	Aluminium
Nominal size Ø	10/16 mm
Version for	Tapered air-termination rod

All types

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
101 VL1500	1500 mm	10/16 mm	5401980	piece	10 piece
101 VL2000	2000 mm	10/16 mm	5401983	piece	10 piece
101 VL2500	2500 mm	10/16 mm	5401986	piece	10 piece
101 VL3000	3000 mm	10/16 mm	5401989	piece	10 piece
101 VL3500	3500 mm	10/16 mm	5401993	piece	10 piece
101 VL4000	4000 mm	10/16 mm	5401995	piece	10 piece
