Tapered pipe air-termination rod 2000 | 10/16

Tapered pipe air-termination rod

Item no. 5401983 | EAN 4012195107774

Item no. / Types

Length

Nominal size Ø

Product description

Product description

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• From a free length of > 2.5 m, an additional fastening, e.g. insulated
spacer is recommended

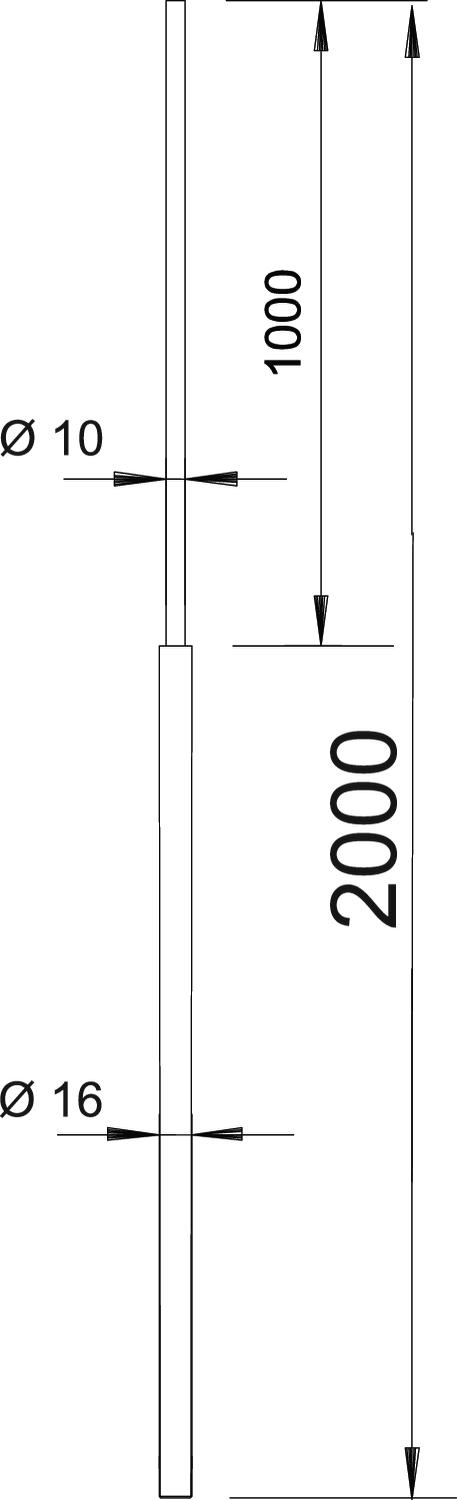

• Last metre is tapered from Ø 16 mm to Ø 10 mm, material: AlMgSi
• Matches stand system FangFix

Technical data

Technical data

Connection	Round conductor
Dimension	2000mm
High voltage-resistant, insulated version	no

Material	Aluminium
Nominal size Ø	10/16 mm
Version for	Tapered air-termination rod

Dimensions

Length	2000 mm

All types

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
isFang 3B-100	1000	40	5408968	piece	1 piece
101 VL1500	1500	10/16	5401980	piece	1 piece
101 VL2000	2000	10/16	5401983	piece	1 piece
101 VL2500	2500	10/16	5401986	piece	1 piece
101 VL3000	3000	10/16	5401989	piece	1 piece
101 VL3500	3500	10/16	5401993	piece	1 piece
101 VL4000	4000	10/16	5401995	piece	1 piece
