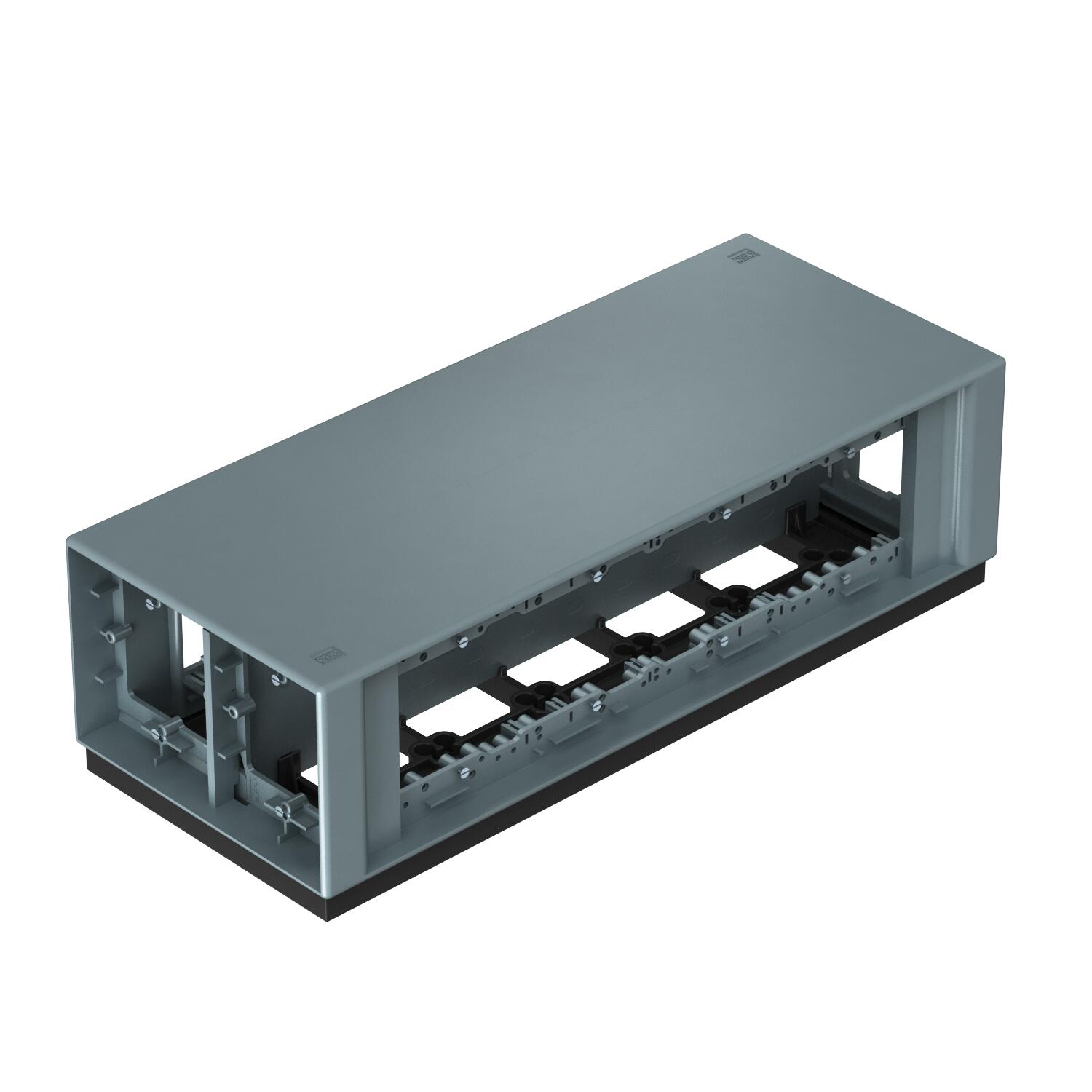

Telitank T12L

Item no. 7408096 | EAN 4012195114109

Item no. / Types

Number of installable devices	12

Colour

Product description

Product description

Raised-height Telitank installation units can be used in dry rooms with dry or wet-cleaned floors, according to the standard. They are installed on covers of empty underfloor boxes and trunking of the appropriate underfloor systems and on raised or cavity floors. A system opening of the type "DAT" is required for fixing on systems. Telitanks offer direct installation options for accessories with a support ring or support bracket with a 60 mm fixing groove. All the fixing grooves are arranged vertically. Modul 45 devices are locked directly into the appropriate cover plates. All the Telitank housings are made of shock-resistant polyamide and thus have a high load capacity. As the Telitanks have a fixed location, care should be taken during planning that they are not located in traffic areas.

Technical data

Technical data

Colour	Iron grey; RAL 7011

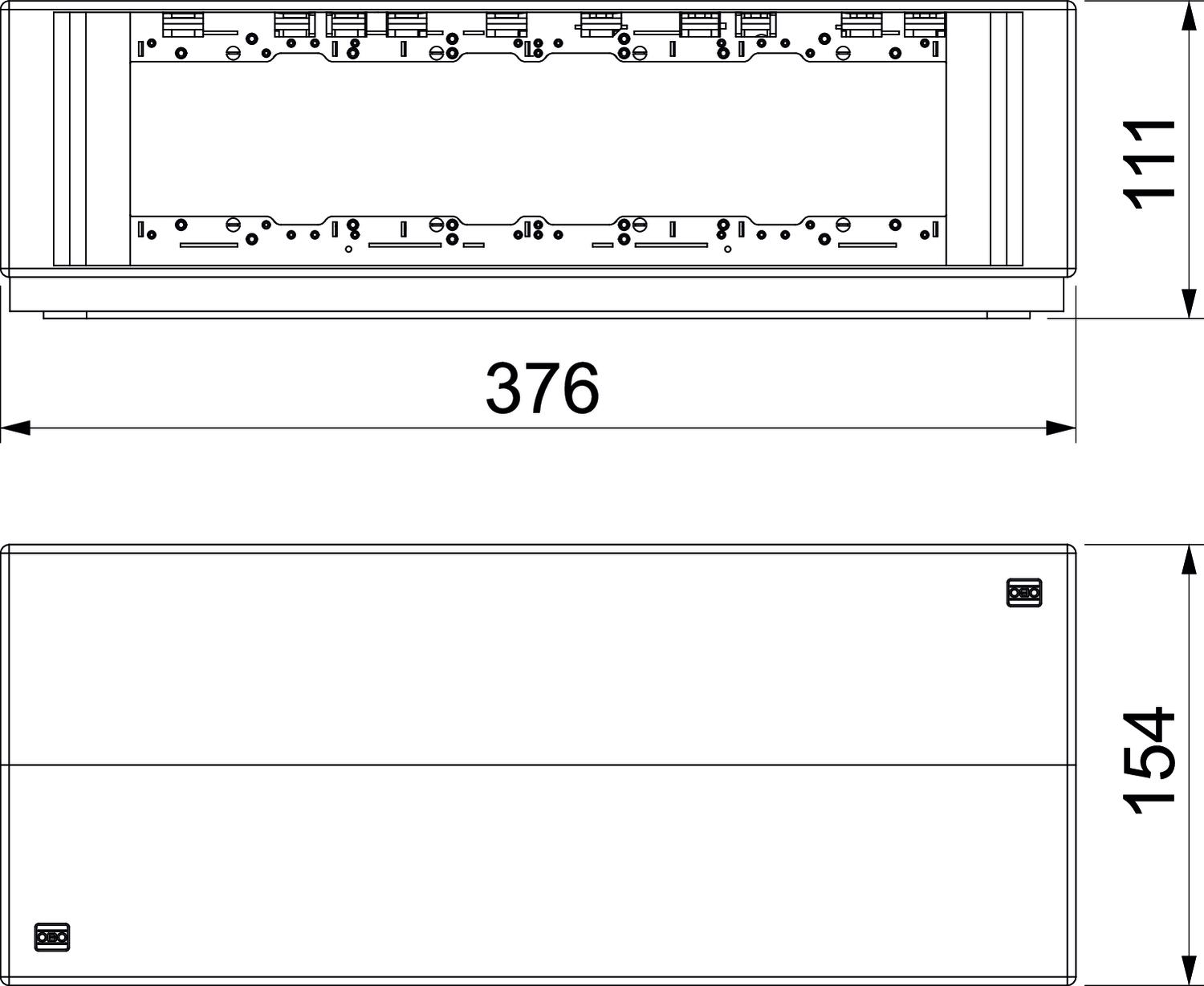

Dimension	375x154x109
Height	108,5 mm
Length	375,5 mm
Material	Polyamide
Number of installable devices	12

Number of installable devices, front side	4
Number of installable devices, rear side	4
Suitable for standard switch material	yes
Suitable for wet care	yes
Width	154 mm

All types

All types

Types	Number of installable devices	Colour	Item no.	Quantity	SSU
T12L 00C 7011	12	Iron grey; RAL 7011	7408096	piece	1 piece
T12L 00C 9011	12	Graphite black; RAL 9011	7408100	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

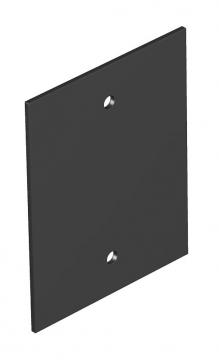

Cover plate, Telitank T12L, blank	T12L P01S 9011	7408108	piece	25 piece

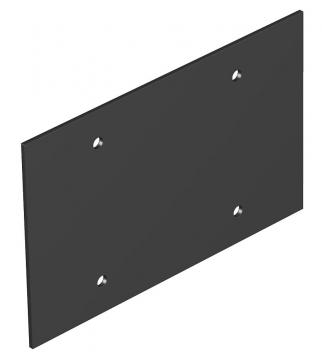

Cover plate, Telitank T12L, blank, for lengthwise side	T12L P02S 9011	7408116	piece	20 piece

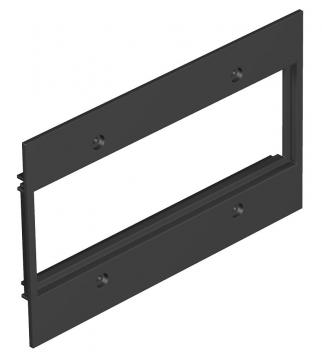

Cover plate, Telitank T12L, Modul 45® installation opening	T12L P17S 9011	7408164	piece	20 piece

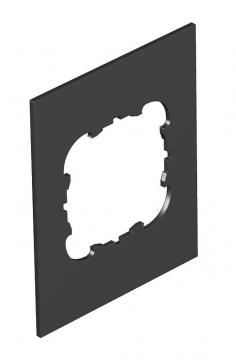

Cover plate, Telitank T12L, round installation opening for EKR device	T12L P1S 9011	7408172	piece	25 piece

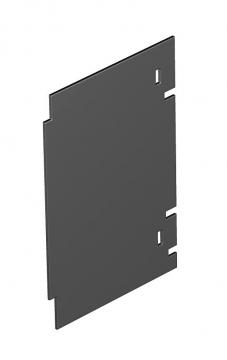

Partition Telitank T12L	T12L TQ	7408208	piece	50 piece

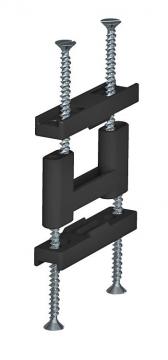

Strain relief T12L	T ZE	7408088	piece	100 piece
