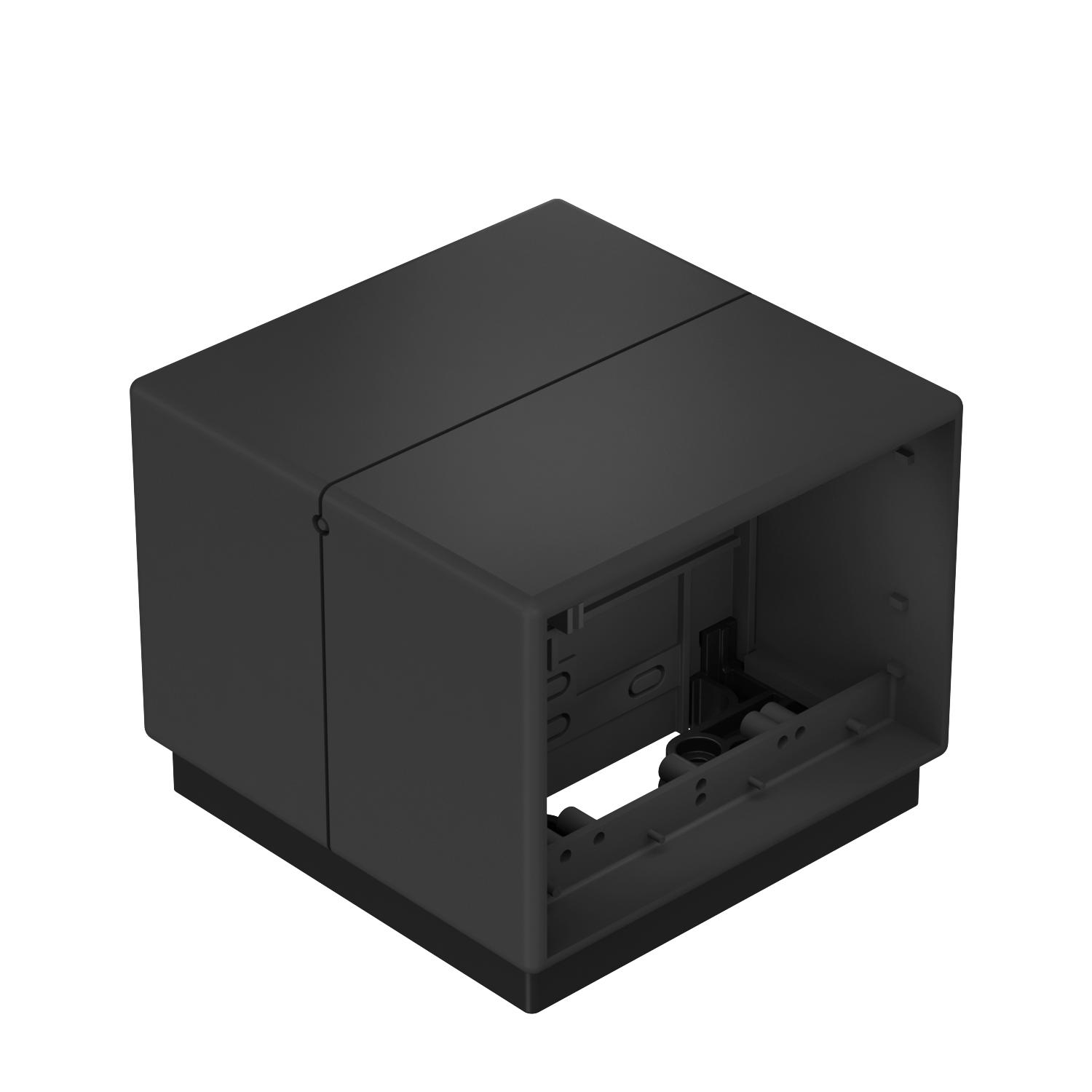

Telitank T4B 4 | Graphite black; RAL 9011

Telitank T4B

Item no. 7408292 | EAN 4012195114963

Item no. / Types

Number of installable devices	4

Colour

Product description

Product description

For combined installation of four individual accessories with support bracket (four accessories of one current type or two accessories each for two current types). The different current types are insulated against each other by a partition. Screw fixing groove for accessories: 60 mm vertical.

Technical data

Technical data

Colour	Graphite black; RAL 9011

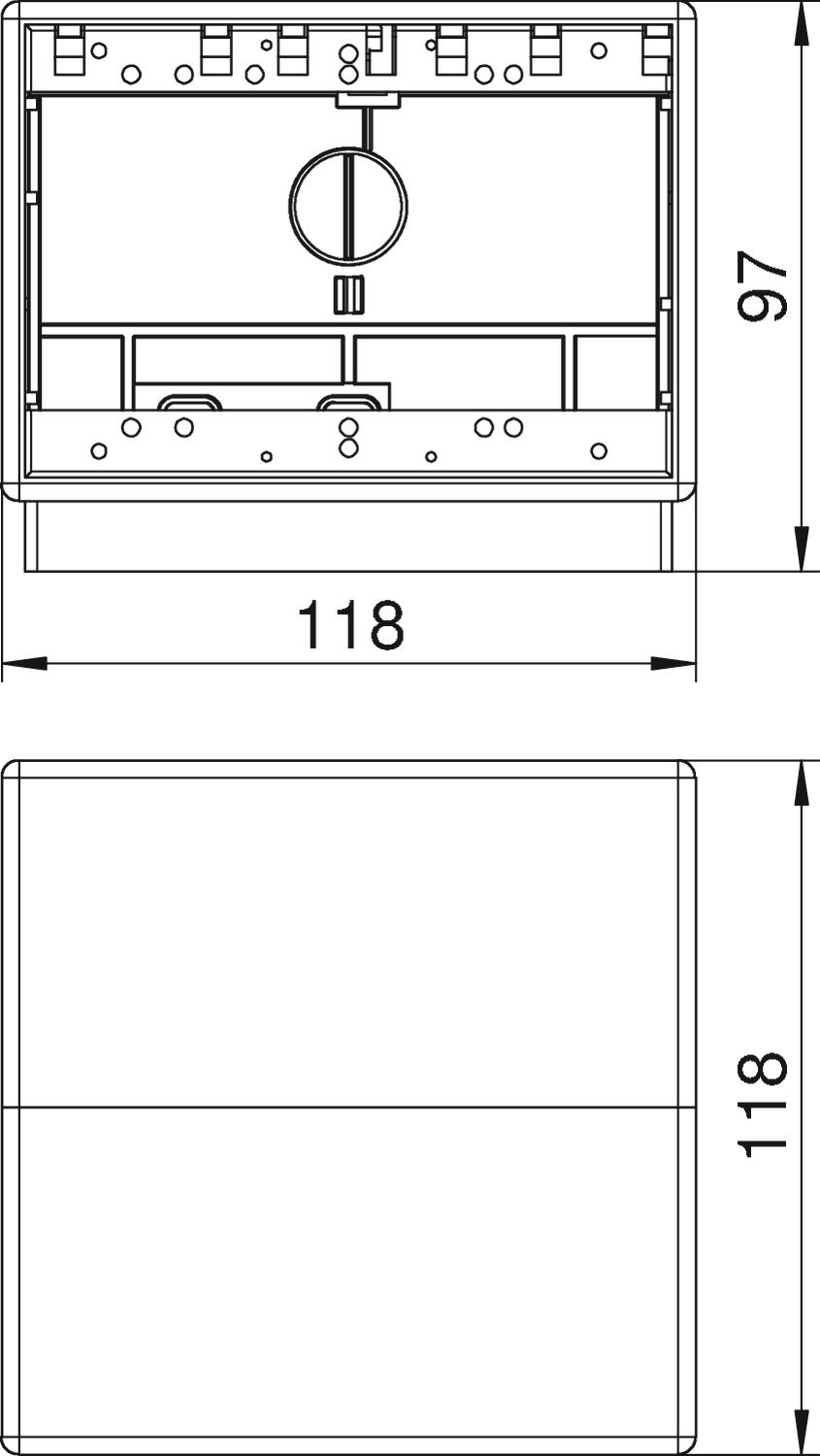

Dimension	118x118x97
Height	97 mm
Length	118 mm
Material	Polyamide
Number of installable devices	4

Number of installable devices, front side	2
Number of installable devices, rear side	2
Suitable for standard switch material	yes
Suitable for wet care	yes
Width	118 mm

All types

All types

Types	Number of installable devices	Colour	Item no.	Quantity	SSU

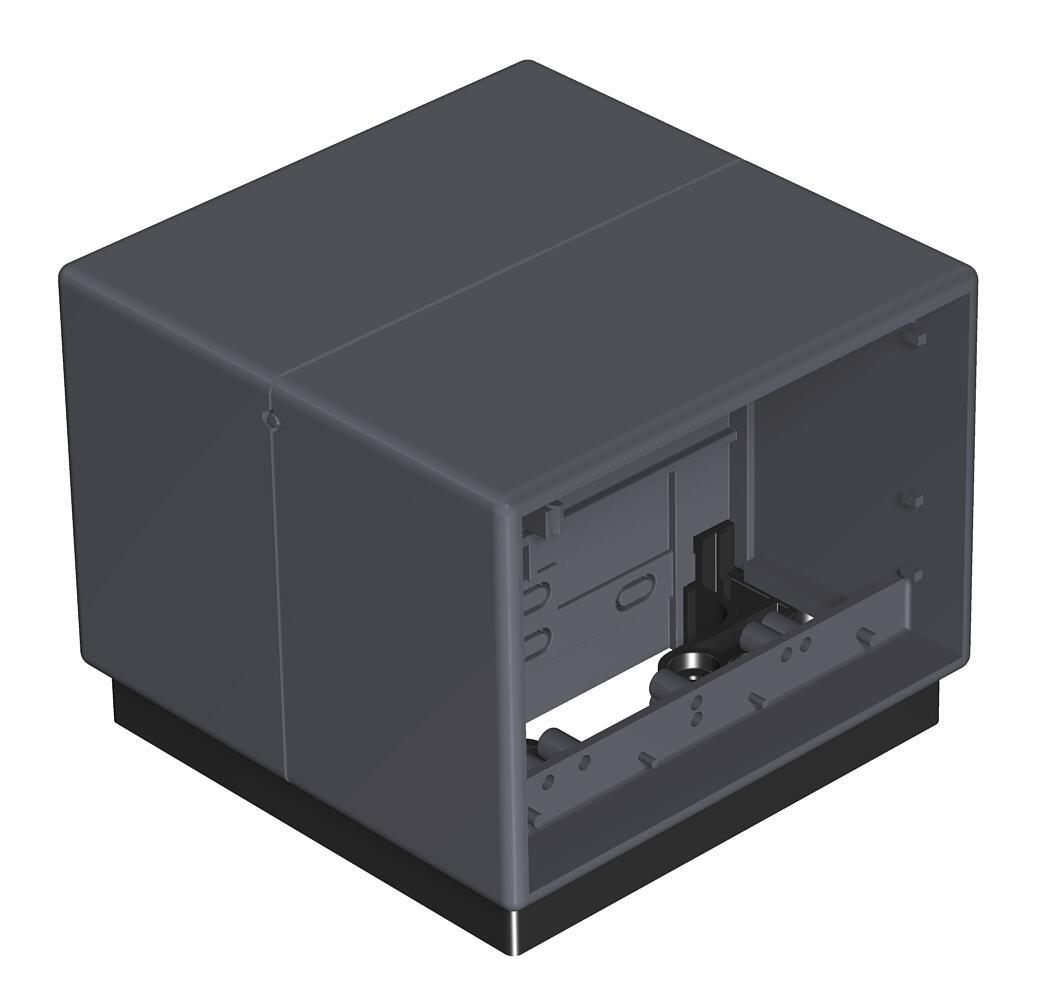

T4B 00C 7011	4	Iron grey; RAL 7011	7408288	piece	1 piece
T4B 00C 9011	4	Graphite black; RAL 9011	7408292	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover plate, Telitank T4B, blank	T4B P01S 9011	7408220	piece	25 piece
Cover plate, Telitank T4B, Modul 45® installation opening	T4B P6 9011	7408268	piece	25 piece
Partition Telitank T4B	T4B TQ	7408280	piece	50 piece
