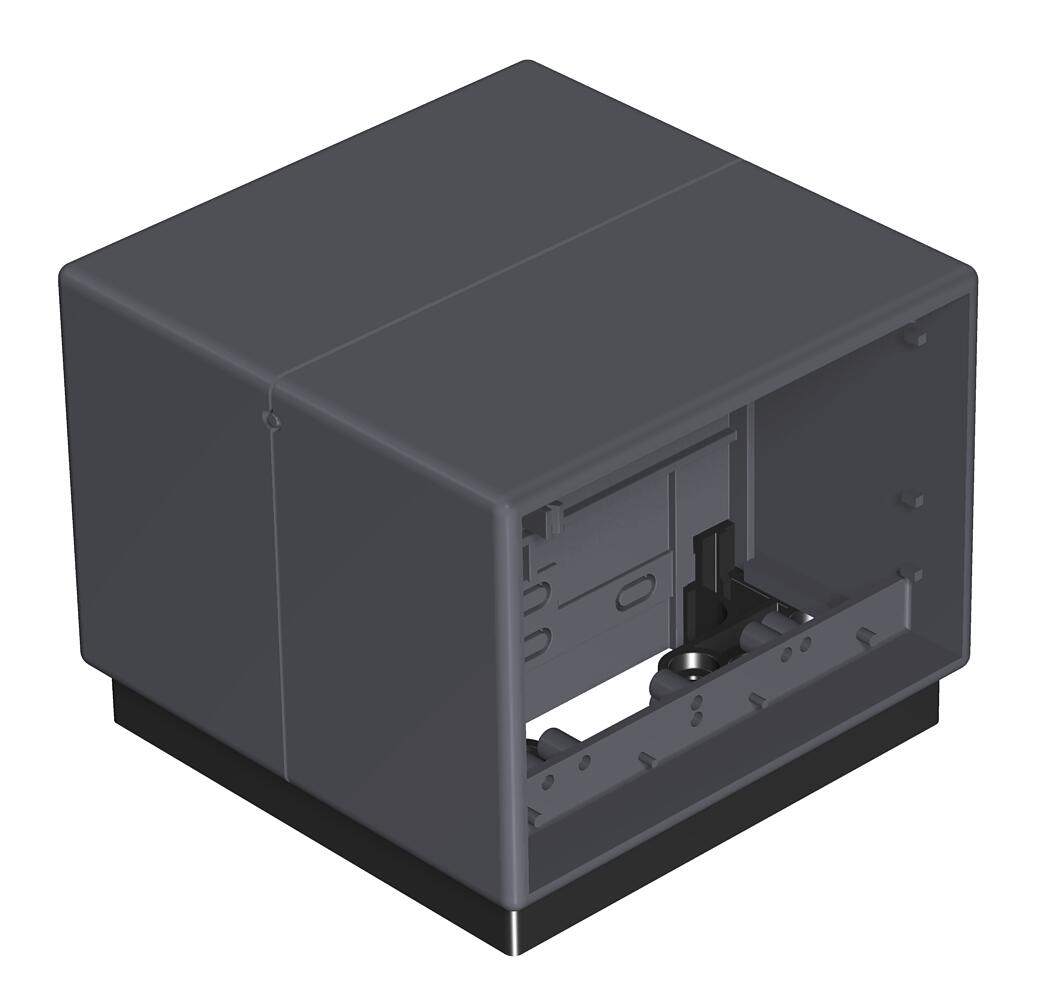

Telitank T4B

Item no. 7408288 | EAN 4012195114956

4
Product description
Product description
For combined installation of four individual accessories with support bracket (four accessories of one current type or two accessories each for two current types). The different current types are insulated against each other by a partition. Screw fixing groove for accessories: 60 mm vertical.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Iron grey; RAL 7011

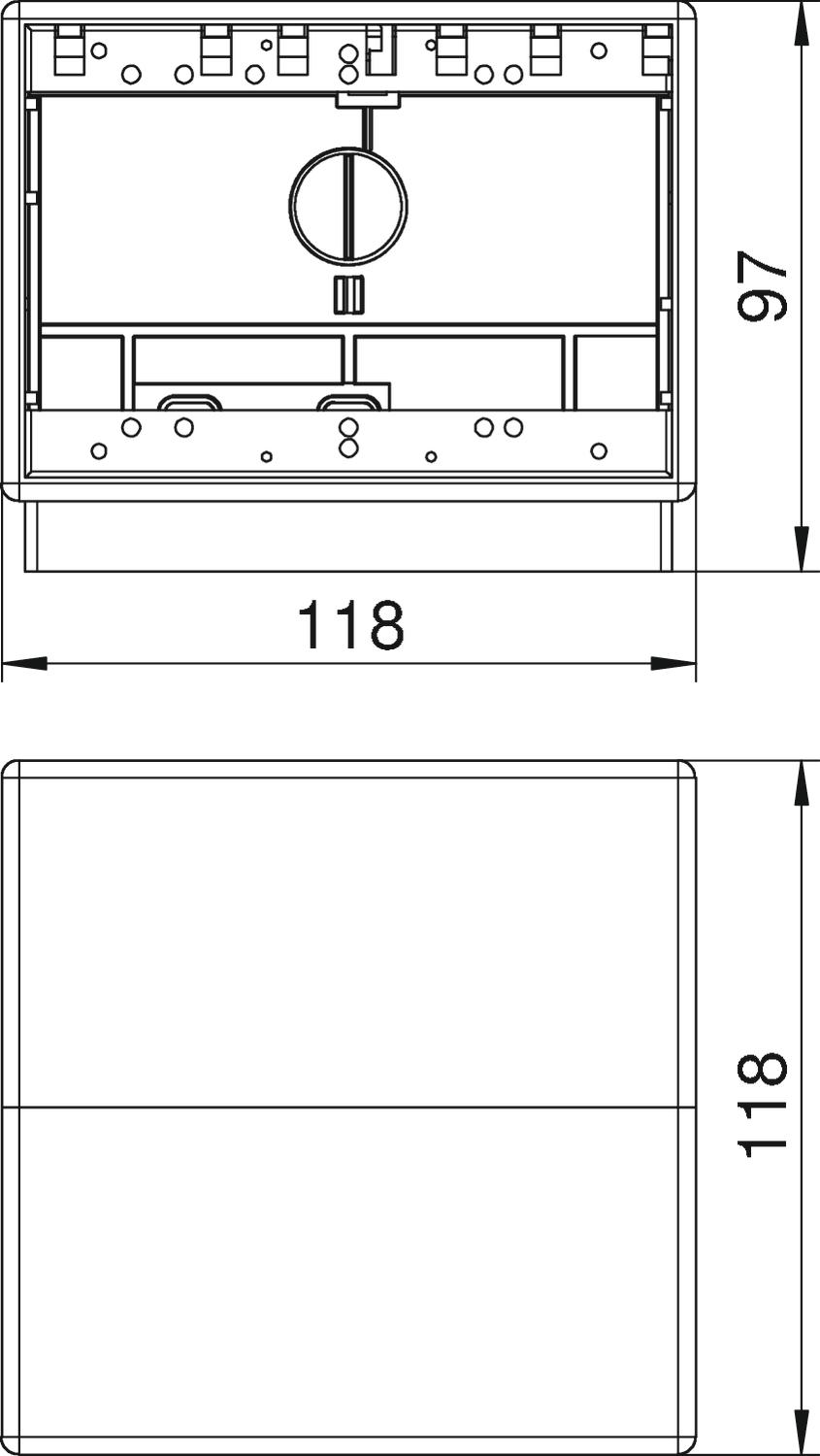

Dimension 118x118x97
Height 97 mm
Length 118 mm
Material Polyamide
Number of installable devices 4
Number of installable devices, front side 2
Number of installable devices, rear side 2
Suitable for standard switch material yes
Suitable for wet care yes
Width 118 mm
All types

All types

Types Number of installable devices Colour Item no. Quantity SSU
T4B 00C 7011 4 Iron grey; RAL 7011 7408288
1 piece
T4B 00C 9011 4 Graphite black; RAL 9011 7408292
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU

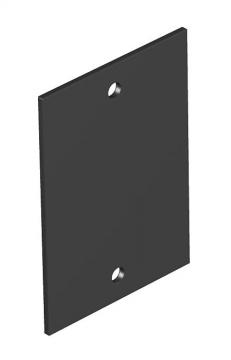

Cover plate, Telitank T4B, blank Cover plate, Telitank T4B, blank T4B P01S 9011 7408220
25 piece
Cover plate, Telitank T4B, round installation opening for EK device Cover plate, Telitank T4B, round installation opening for EK device T4B P1S 9011 7408236
25 piece

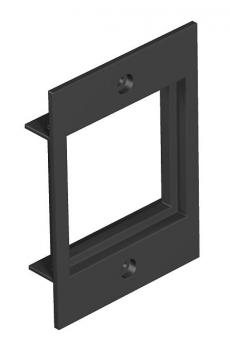

Cover plate, Telitank T4B, Modul 45® installation opening Cover plate, Telitank T4B, Modul 45® installation opening T4B P6 9011 7408268
25 piece

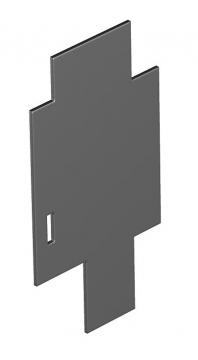

Partition Telitank T4B Partition Telitank T4B T4B TQ 7408280
50 piece
Downloads

Download

No invitation to tender text is available for this product.
