Telitank T8NL

Item no. 7408494 | EAN 4012195115984

8
Product description
Product description
Raised-height installation unit for the installation of eight individual accessories with a support ring or support bracket on four sides. The current types (4 + 4) are separated using a partition. When multiple accessories are used, the connection capacity can be increased. Screw fixing groove for accessories: 60 mm, vertical.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Graphite black; RAL 9011

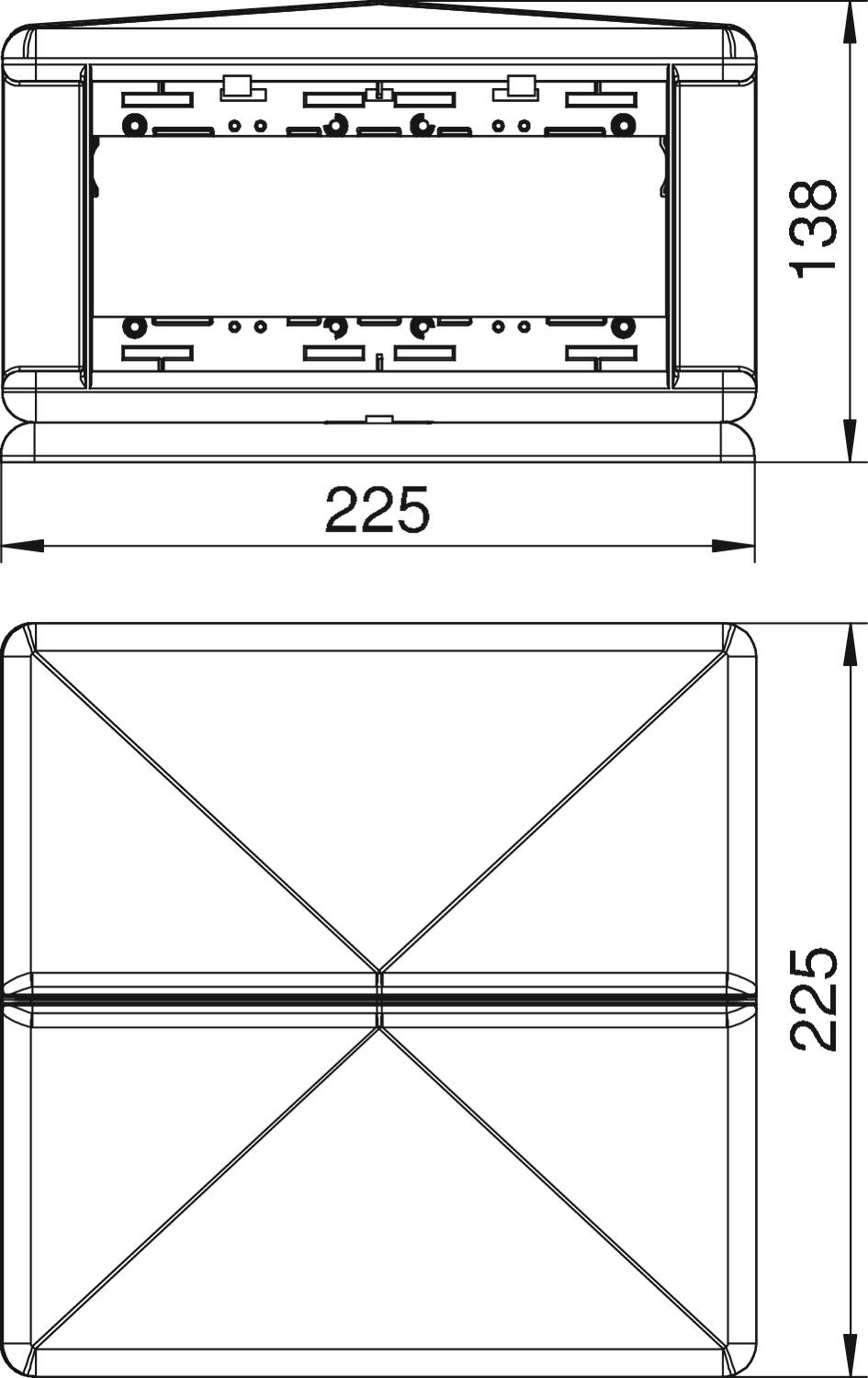

Dimension 225x225x125
Height 138 mm
Length 225 mm
Material Polyamide
Number of installable devices 8
Number of installable devices, front side 2
Number of installable devices, rear side 2
Suitable for standard switch material yes
Suitable for wet care yes
Width 225 mm
All types

All types

Types Number of installable devices Colour Item no. Quantity SSU

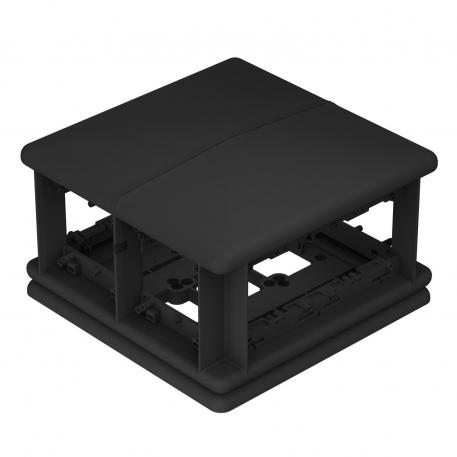

T8NL 00C 9011 8 Graphite black; RAL 9011 7408494
1 piece

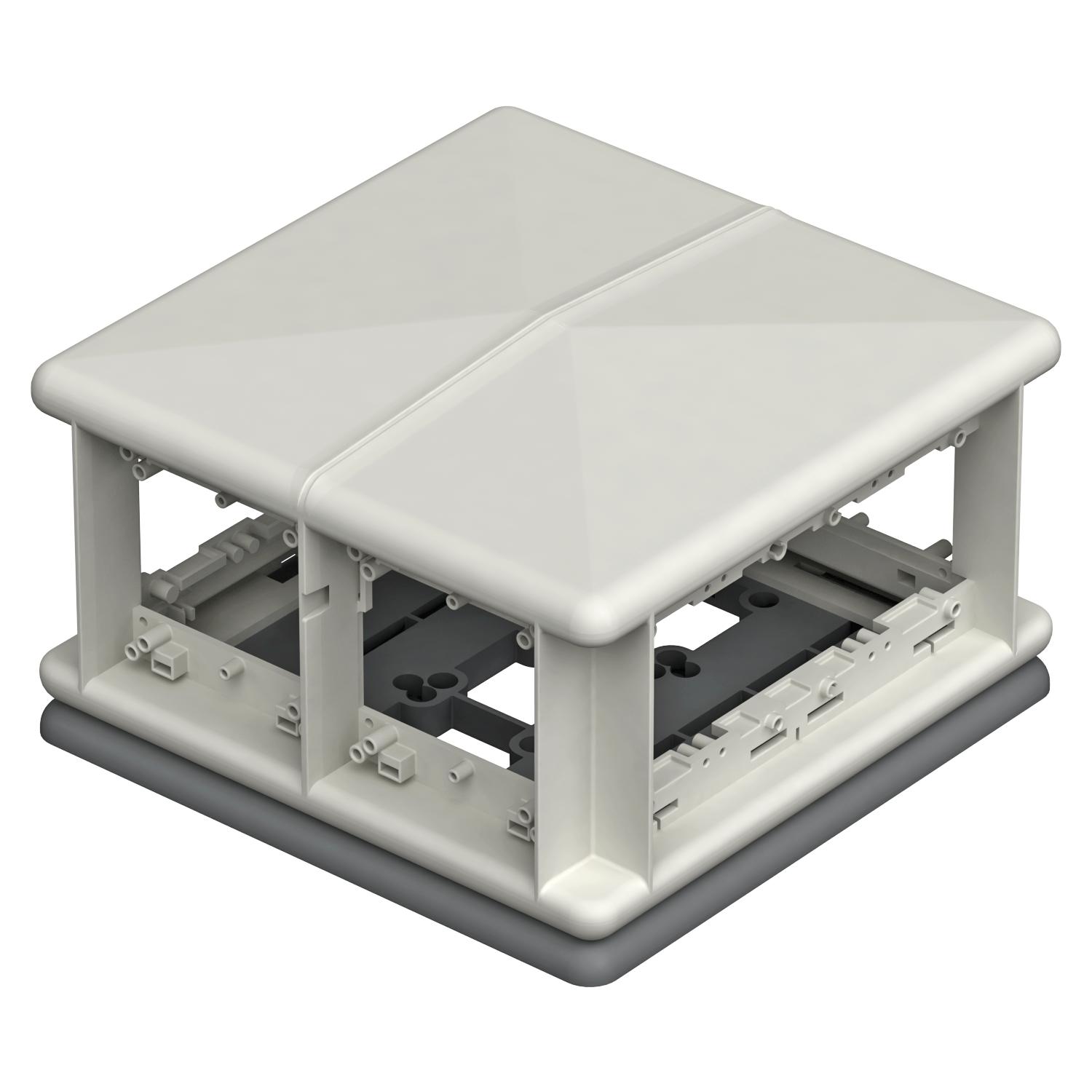

T8NL 00C 7035 8 Light grey; RAL 7035 7408498
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU

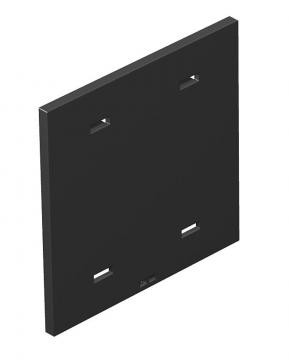

Cover plate, Telitank T4L/T8NL, blank Cover plate, Telitank T4L/T8NL, blank T8NL P01 9011 7408436
160 piece

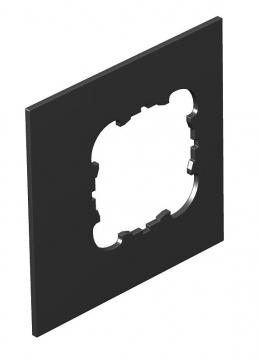

Cover plate, Telitank T4L/T8NL, round installation opening for EKR device, for lengthwise side Cover plate, Telitank T4L/T8NL, round installation opening for EKR device, for lengthwise side T8NL P2 9011 7408458
240 piece

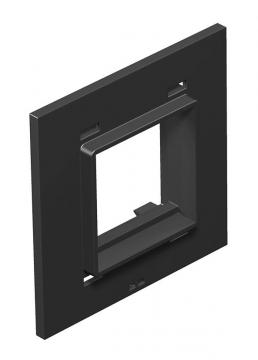

Cover plate, Telitank T4L/T8NL, Modul 45® installation opening Cover plate, Telitank T4L/T8NL, Modul 45® installation opening T8NL P45 9011 7408474
10 piece

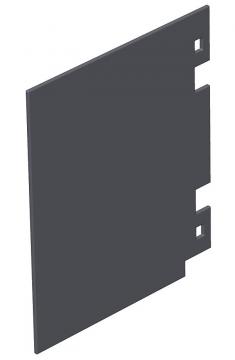

Partition Telitank T4L/T8NL Partition Telitank T4L/T8NL T8NL TQ 7408490
40 piece

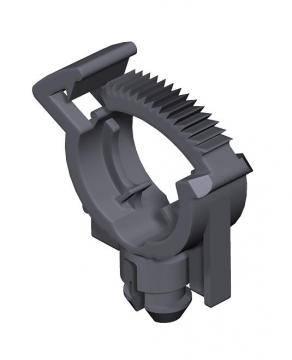

Strain relief Strain relief ZE2 3 7408650
150 piece
