Telitank T8NL

Item no. 7408498 | EAN 4012195116028

Item no. / Types

Number of installable devices	8

Colour

Product description

Product description

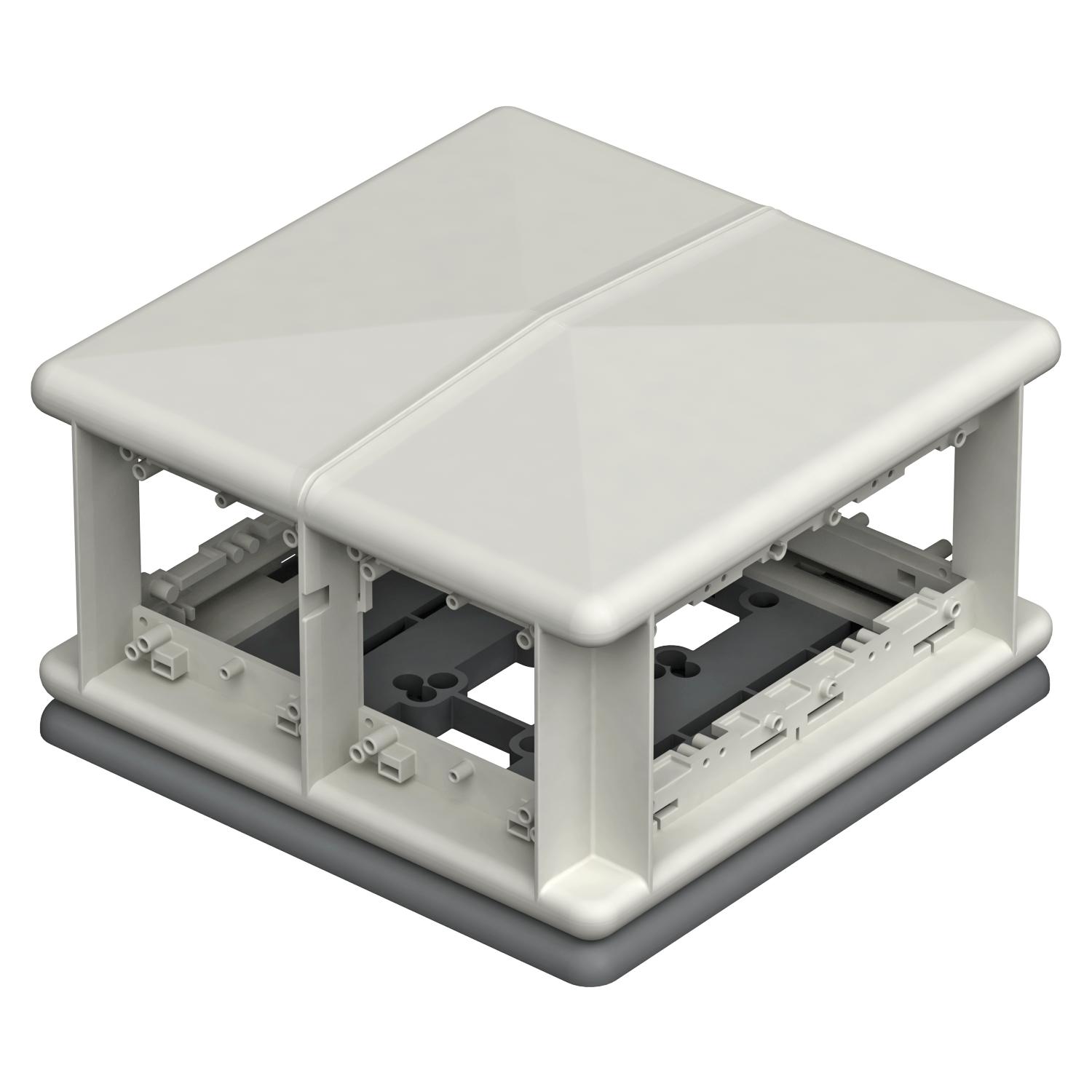

Raised-height installation unit for the installation of eight individual accessories with a support ring or support bracket on four sides. The current types (4 + 4) are separated using a partition. When multiple accessories are used, the connection capacity can be increased. Screw fixing groove for accessories: 60 mm, vertical.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	225x225x125
Material	Polyamide
Number of installable devices	8

Number of installable devices, front side	2
Number of installable devices, rear side	2
Suitable for standard switch material	yes
Suitable for wet care	yes

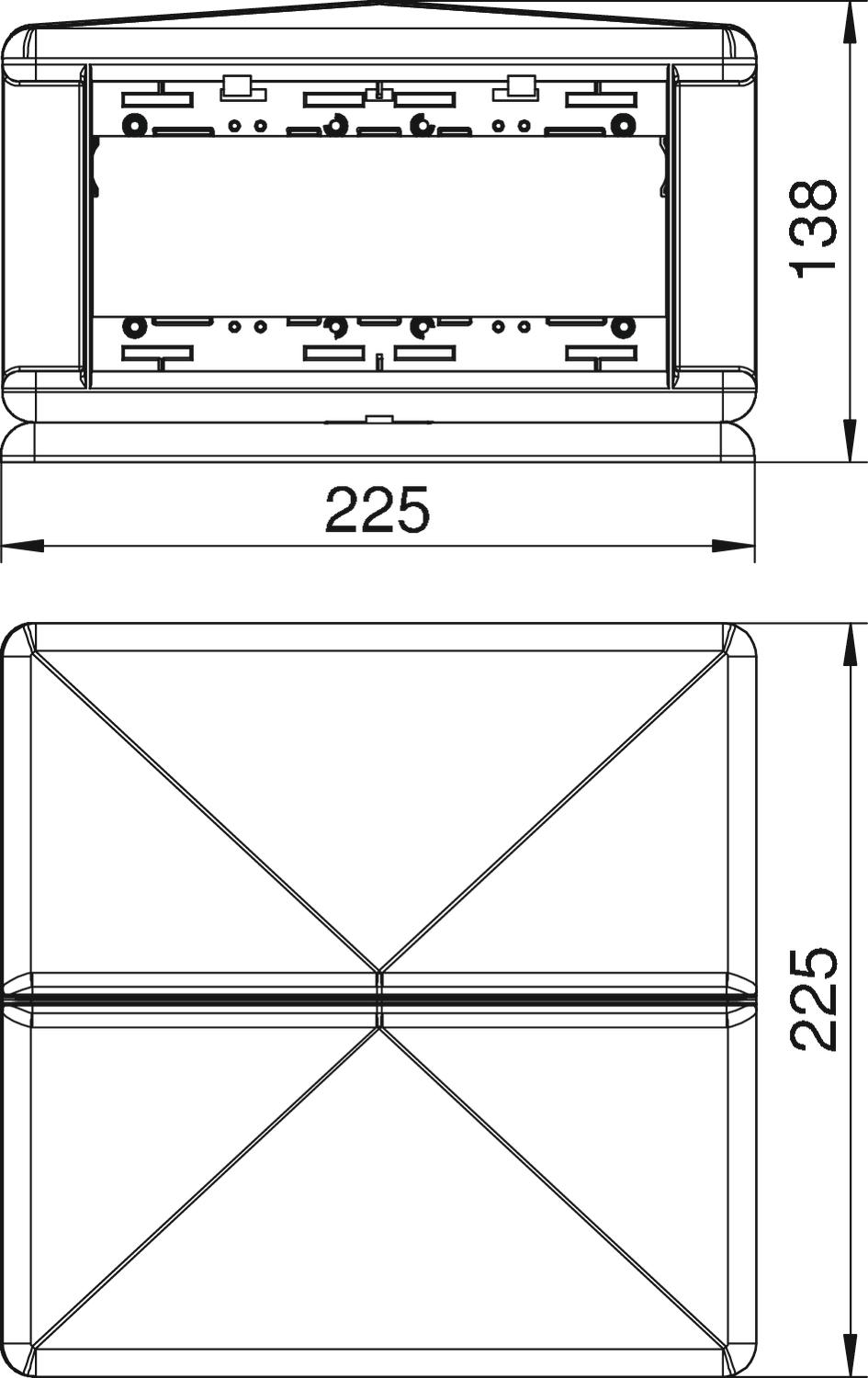

Dimensions

Height	138 mm
Length	225 mm

Width	225 mm

All types

All types

Types	Number of installable devices	Colour	Item no.	Quantity	SSU
T8NL 00C 9011	8	Graphite black; RAL 9011	7408494	piece	1 piece
T8NL 00C 7035	8	Light grey; RAL 7035	7408498	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover plate, Telitank T4L/T8NL, blank	T8NL P01 9011	7408436	piece	1 piece
Cover plate, Telitank T4L/T8NL, round installation opening for EKR device, for lengthwise side	T8NL P2 9011	7408458	piece	1 piece
Cover plate, Telitank T4L/T8NL, Modul 45® installation opening	T8NL P45 9011	7408474	piece	1 piece
Partition Telitank T4L/T8NL	T8NL TQ	7408490	piece	1 piece
Strain relief	ZE2 3	7408650	piece	10 piece
